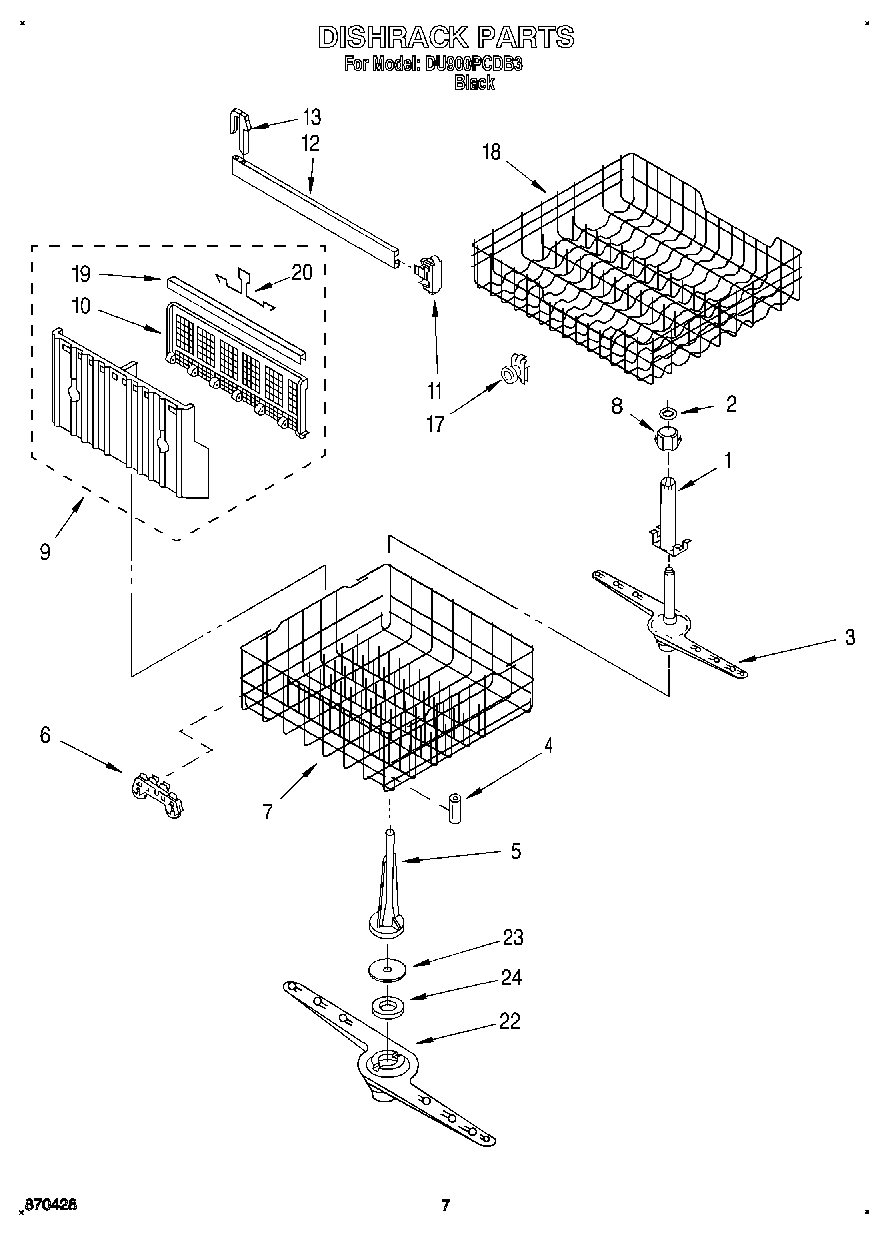

| 1 | Support, Arm |
| 2 | Clip |
| 3 | Spray Arm, Upper |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 8 | Support, Lock Spray Arm |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Endcap, Front or Rear (2) |
| 12 | Track, Rack |
| 13 | Stop, Track (2) |
| 17 | Wheel & Axle Assembly (4) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
