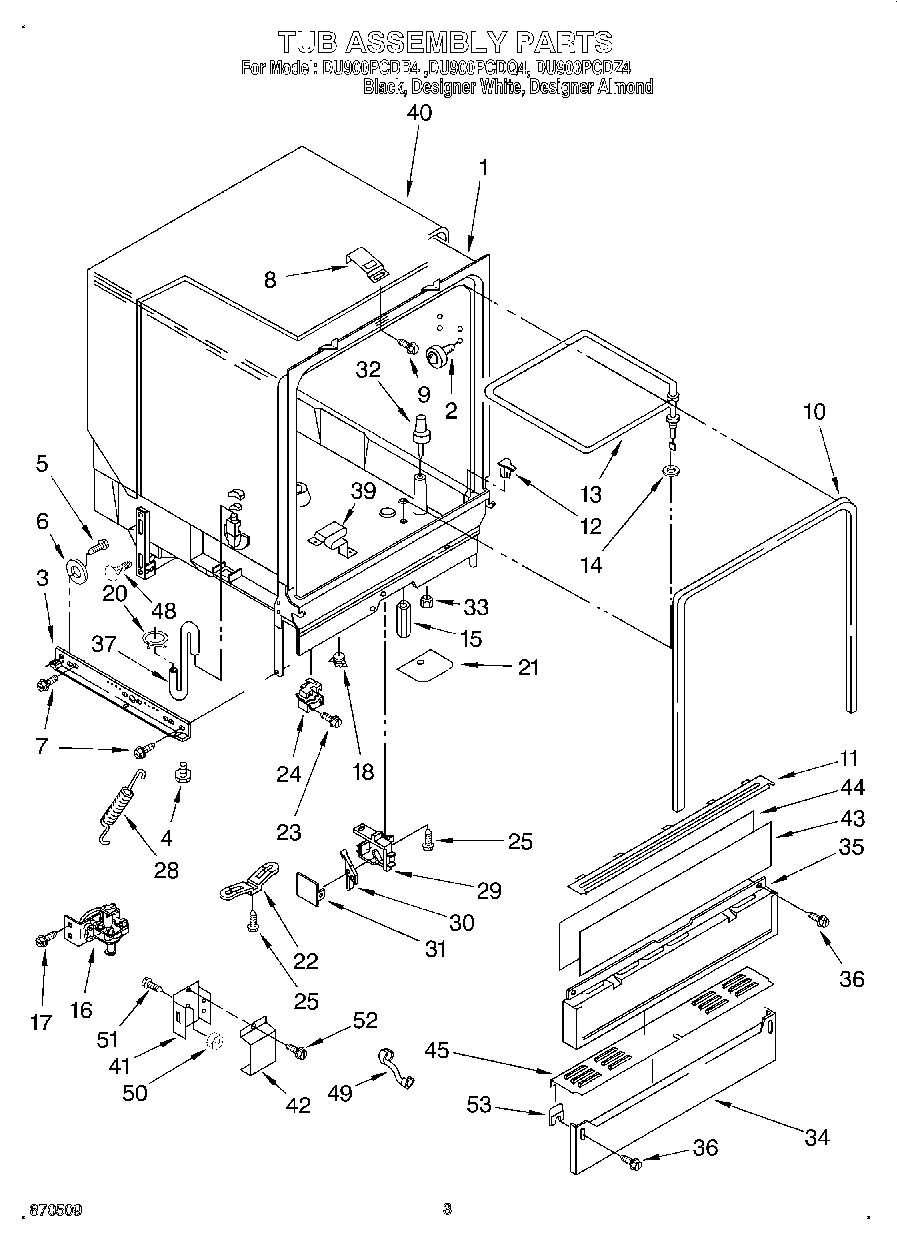

DU900PCDB4 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	Retainer, Access (White)
12	DEFLECTOR-DISHWASHER
13	Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
20	WP596669 Whirlpool Hose Clamp
21	Shield, Thermostat
22	W10539489 Whirlpool Dishwasher Bracket-Stat
23	WP489128 Whirlpool Refrigerator Screw
24	Relay
25	WP304231 Whirlpool Dishwasher Screw
28	WP3374343 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	WP3379921 Whirlpool Dishwasher Toe Panel
35	Access Panel & Clip Assembly (White)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
39	Support, Heater
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	Access Panel (White/Black)
44	Spacer, Corrugated
45	Extension & Clip Assembly
48	WP304666 Whirlpool Dishwasher Retainer
49	Relief, Strain
50	WP488130 Whirlpool Air Conditioner Nut
51	WP250830 Whirlpool Refrigerator Screw
52	Screw
53	Clip, Grounding
