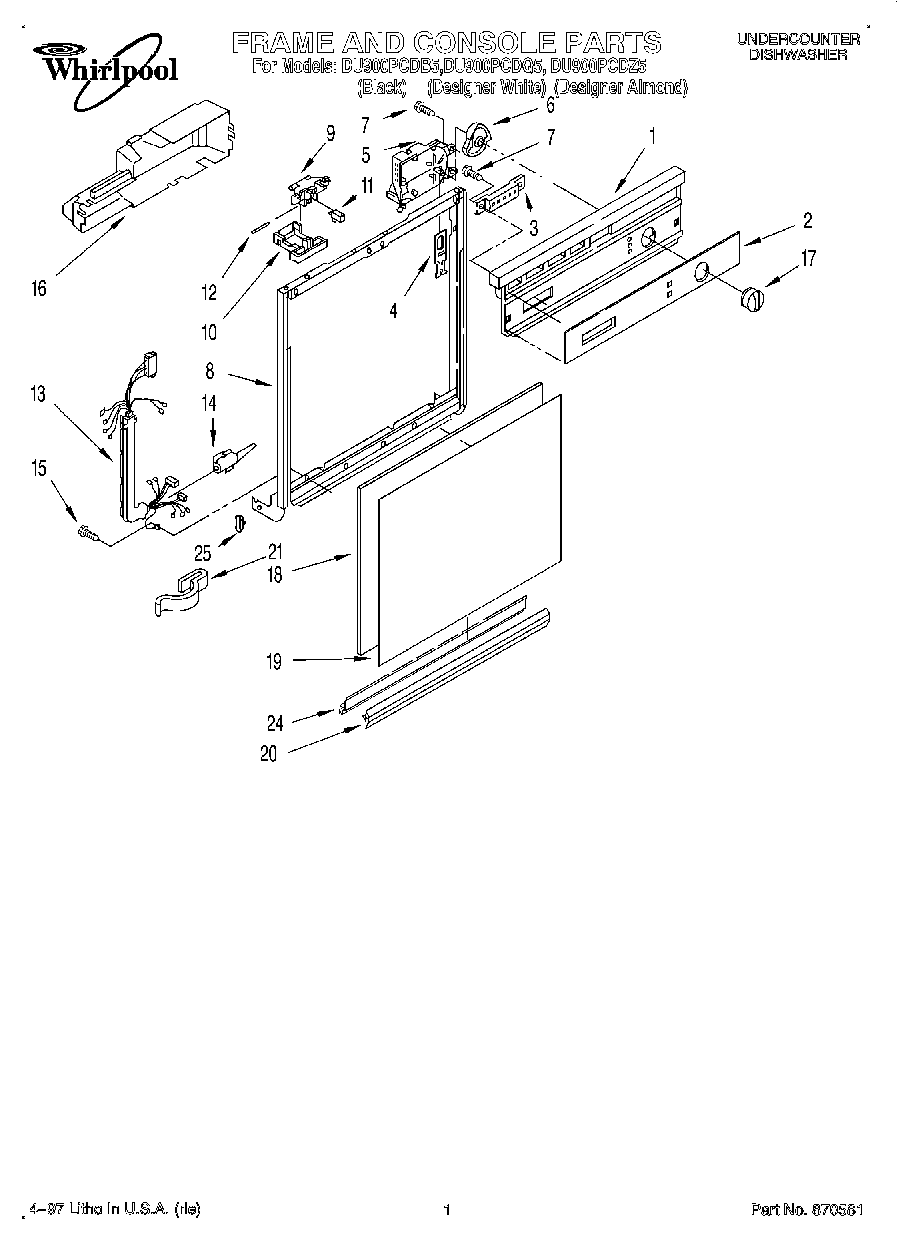

DU900PCDQ5 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
1	Console (Includes Item 2)
1	Console (Includes Item 2) (Almond)
2	Insert, Console (Almond)
2	Insert, Console
2	Insert, Console
3	Switch (Almond)
3	Switch
3	Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	Timer
6	WP3378124 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	Door Frame (Includes Item 24) (White)
8	3374711 Whirlpool Dishwasher Frame
8	Door Frame (Includes Item 21) (Almond)
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch (Almond)
10	Lever, Latch
10	Lever, Latch (White)
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover Timer
17	3375348 Whirlpool Dishwasher Timer Knob
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel (White)
20	Retainer, Panel (Almond)
20	Retainer, Panel
21	8528351 Whirlpool Clip
24	WP3374716 Whirlpool Dishwasher Channel
25	WP3373234 Whirlpool Dishwasher Bearing
