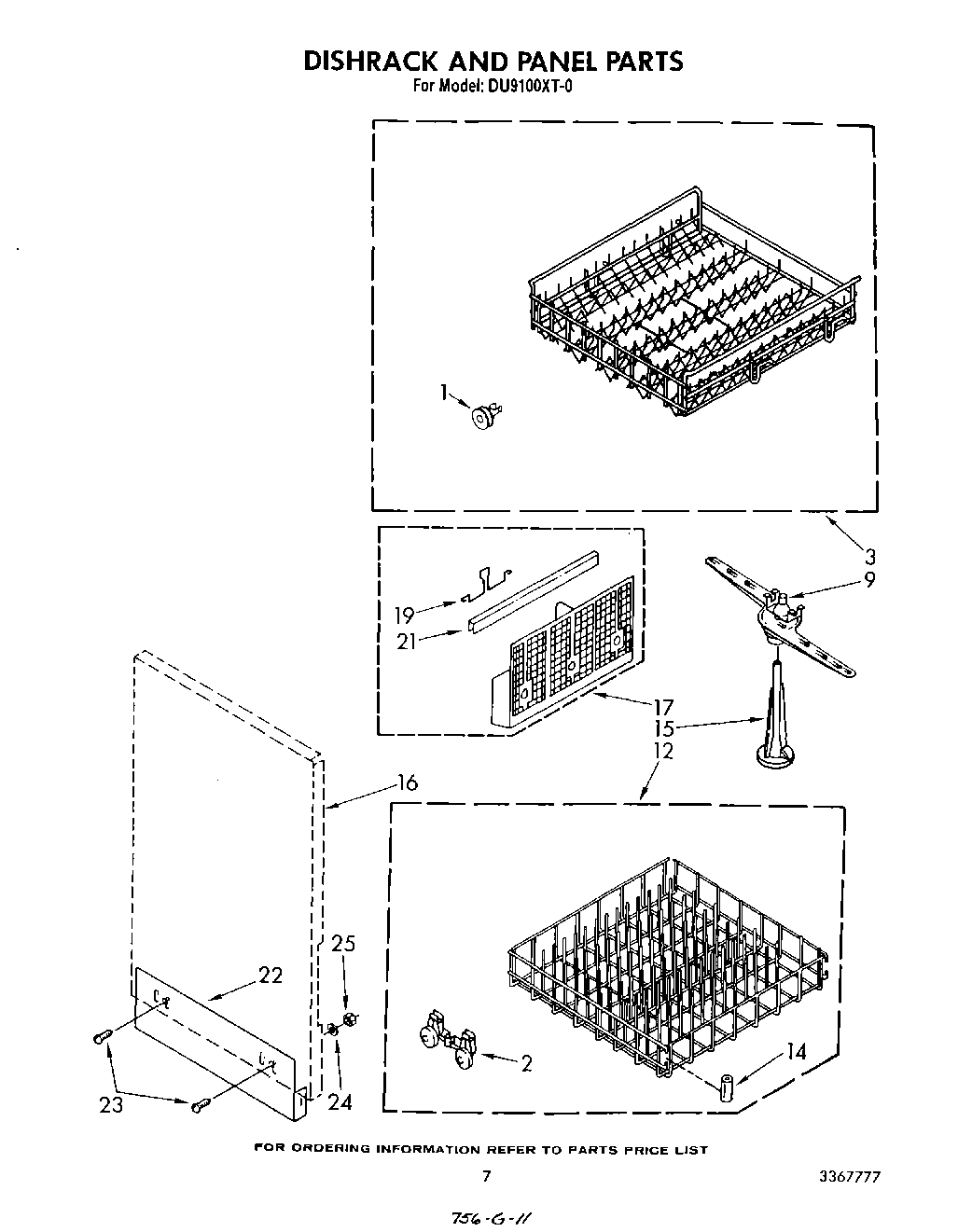

DU9100XT0 05 – DISHRACK AND PANEL

DU9100XT0 05 – DISHRACK AND PANEL

Written by

in

DU9100XT0 05 – DISHRACK AND PANEL

Products

PositionProduct
1Wheel & Axle Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14WP3385142 Whirlpool Dishwasher Bumper
15Tower, Pressure
16Panel, R.S. Panel, L.S.
17Silverware Basket
19Handle, Basket
21Trim, Basket
22Panel, Lower Side
23Screw, Lower Side Panel Mounting (2)
24W11089212 Whirlpool Washer
25W10080180 Whirlpool Nut
