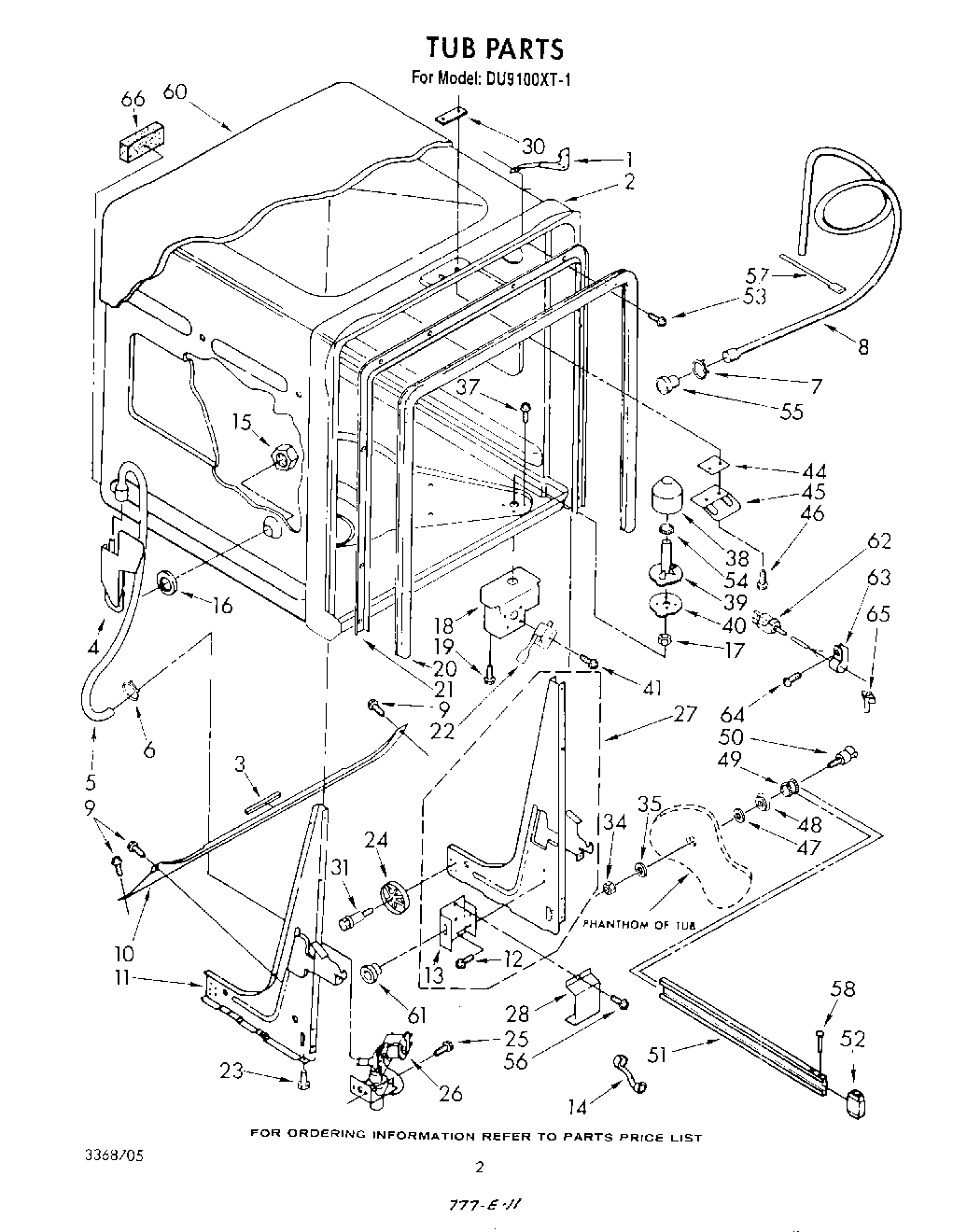

DU9100XT1 02 – TUB , LITERATURE AND OPTIONAL

DU9100XT1 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

DU9100XT1 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3368705
	WPL LIT3367228
	WPL LIT3368413
	WPL LIT3367971
	WPL LIT3367702
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
58	WPL 303298
60	W11086533 Whirlpool Dishwasher Shield
61	WPL 302770
62	WPL 302764
63	Clamp, Strain Relief
64	WP489069 Whirlpool Compactor Screw
65	WPL 770754
66	Enamal, Toast (1 Qt. Uncut)
66	285006 Whirlpool Spray
66	Vinyl Touch Up (Blue)
66	Kit, Epoxy Patch (White)
66	Platinum (Uncut)
66	Leveler (Thinner)
66	WP72107 Whirlpool Touchup
66	799344 Whirlpool Refrigerator Paint
66	72017 Whirlpool Appliance Touch-Up Paint White
66	350956 Whirlpool Spray Assembly
66	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
66	350930 Whirlpool White Spray Paint
66	Paint, Spray (13 Oz.) (Platinum)
66	Block, Foam (2)
66	Toast
66	Golden Harvest (Uncut)
66	Golden Harvest
66	72113 Whirlpool Touch-Up Paint
66	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
66	WPL 72112
66	350942 Whirlpool Spray Paint
66	Almond (Uncut)
