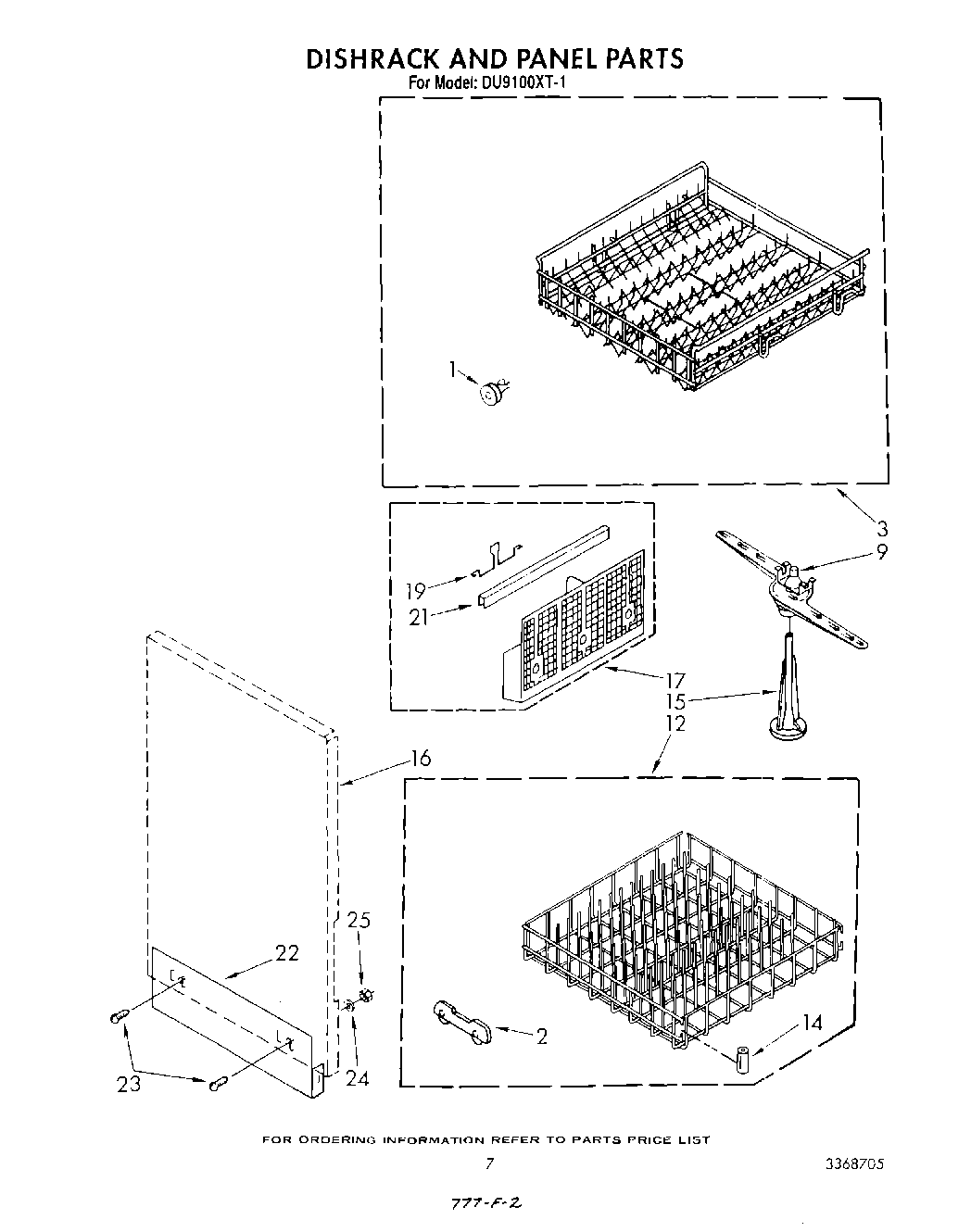

DU9100XT1 05 – DISHRACK AND PANEL

Products

Position	Product
1	Wheel & Axle Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	WP3385142 Whirlpool Dishwasher Bumper
15	Tower, Pressure
16	Panel, R.S. Panel, L.S.
17	Silverware Basket
19	Handle, Basket
21	Trim, Basket
22	Panel, Lower Side
23	Screw, Lower Side Panel Mounting (2)
24	W11089212 Whirlpool Washer
25	W10080180 Whirlpool Nut
