DU9100XT4 02 – TUB , LITERATURE AND OPTIONAL

DU9100XT4 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

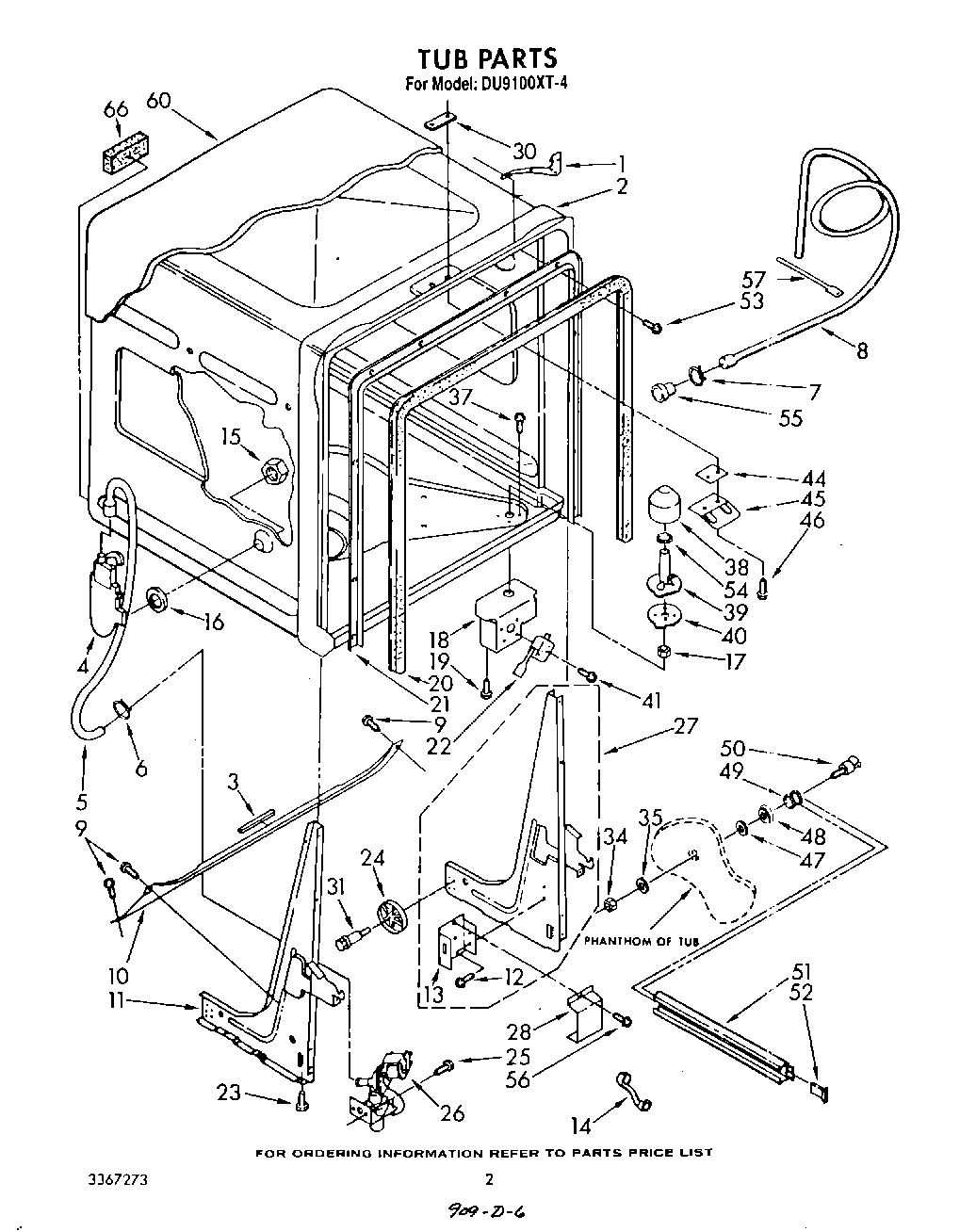

DU9100XT4 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3367228
	WPL LIT3367702
	WPL LIT3367970
	WPL LIT3370047
	WPL LIT3367273
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP489128 Whirlpool Refrigerator Screw
26	Valve, Water Inlet
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw (2)
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
60	W11086533 Whirlpool Dishwasher Shield
66	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
66	350942 Whirlpool Spray Paint
66	350930 Whirlpool White Spray Paint
66	350956 Whirlpool Spray Assembly
66	Leveler (Thinner)
66	WP72107 Whirlpool Touchup
66	285006 Whirlpool Spray
66	72017 Whirlpool Appliance Touch-Up Paint White
66	799344 Whirlpool Refrigerator Paint
66	72113 Whirlpool Touch-Up Paint
66	Golden Harvest
66	Toast
66	Kit, Epoxy Patch (White)
66	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
66	Vinyl Touch Up (Blue)
66	Enamal, Toast (1 Qt. Uncut)
66	Golden Harvest (Uncut)
66	Paint, Spray (13 Oz.) (Platinum)
66	Platinum (Uncut)
66	WPL 72112
66	Block, Foam (2)
66	Almond (Uncut)
