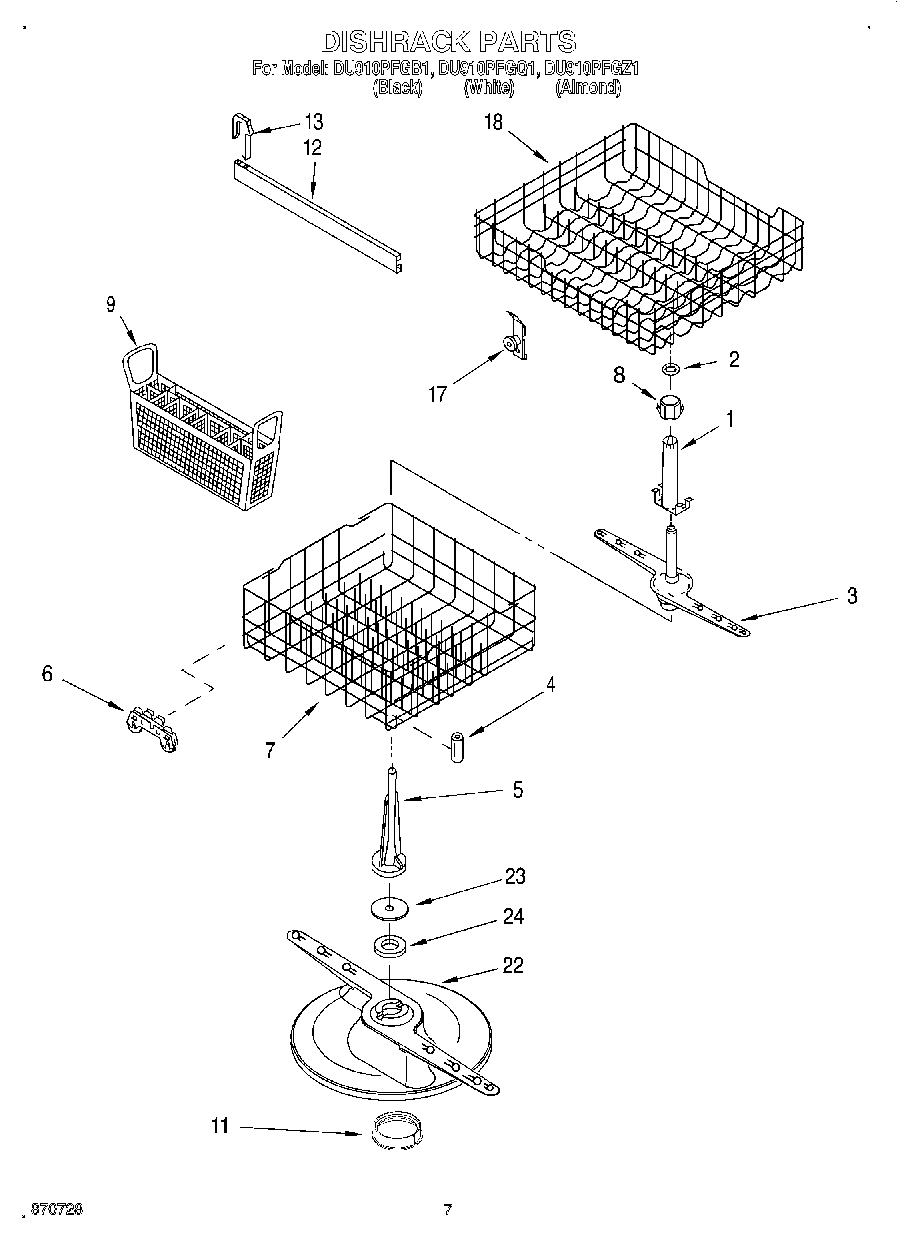

| 1 | Support, Arm |
| 2 | Clip |
| 3 | Spray Arm, Upper (Also Order Items 1 & 8) |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 8 | Support, Lock Spray Arm |
| 9 | Basket, Silverware |
| 11 | WP3376846 Whirlpool Seal |
| 12 | WP3385089 Whirlpool Track |
| 13 | WP3379941 Whirlpool Dishwasher Stop |
| 17 | Wheel & Axle Assembly (4) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 22 | WP8268874 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
