DU911PCDB0 01 – FRAME AND CONSOLE

DU911PCDB0 01 – FRAME AND CONSOLE

Written by

in

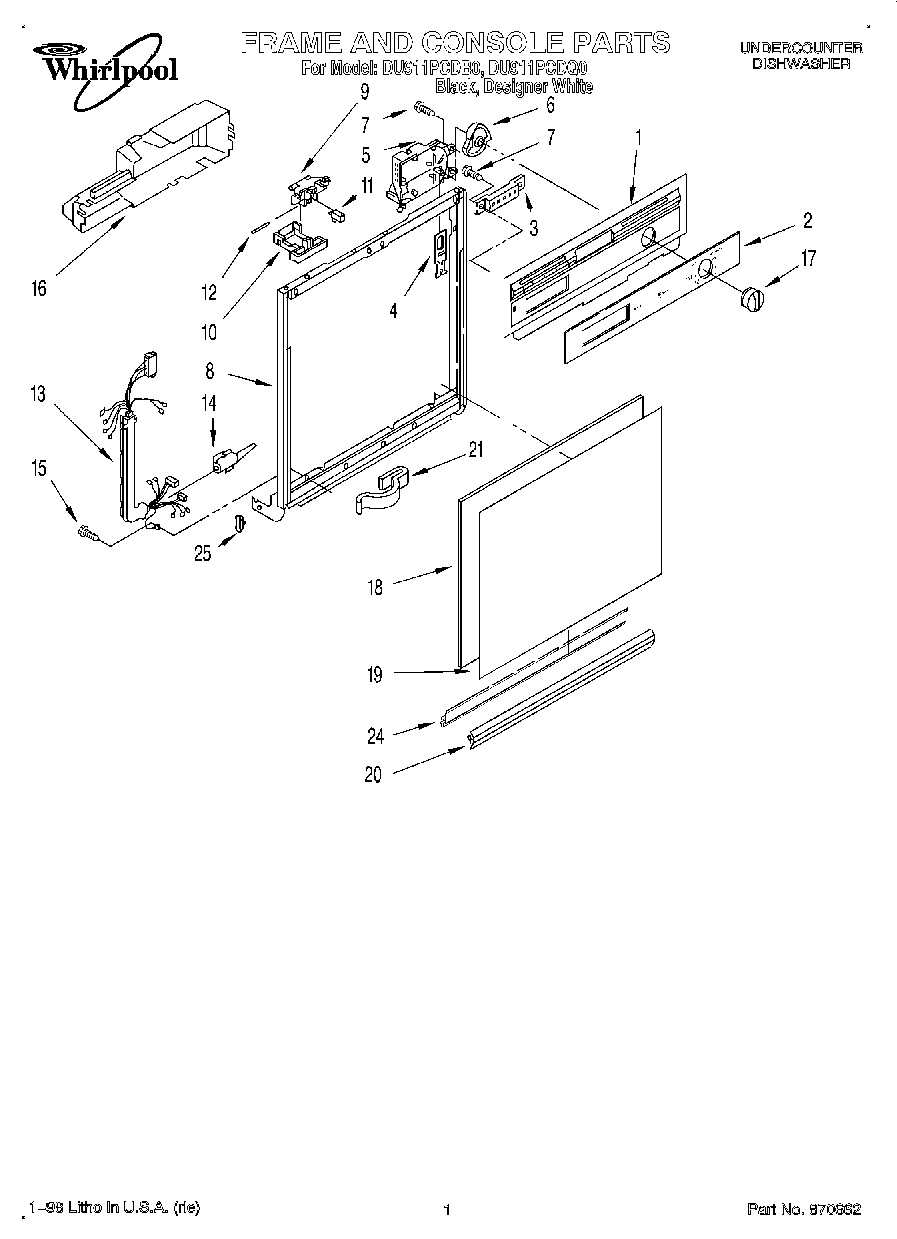

DU911PCDB0 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2) (White)
1Console (Includes Item 2) (Black)
2Insert, Console (White)
2Insert, Console (Black)
3Switch (Black)
3Switch (White)
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP3378124 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
8Door Frame (Includes Item 24) (White)
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
20Retainer, Panel (White)
218528351 Whirlpool Clip
24WP3374716 Whirlpool Dishwasher Channel
25WP3373234 Whirlpool Dishwasher Bearing
