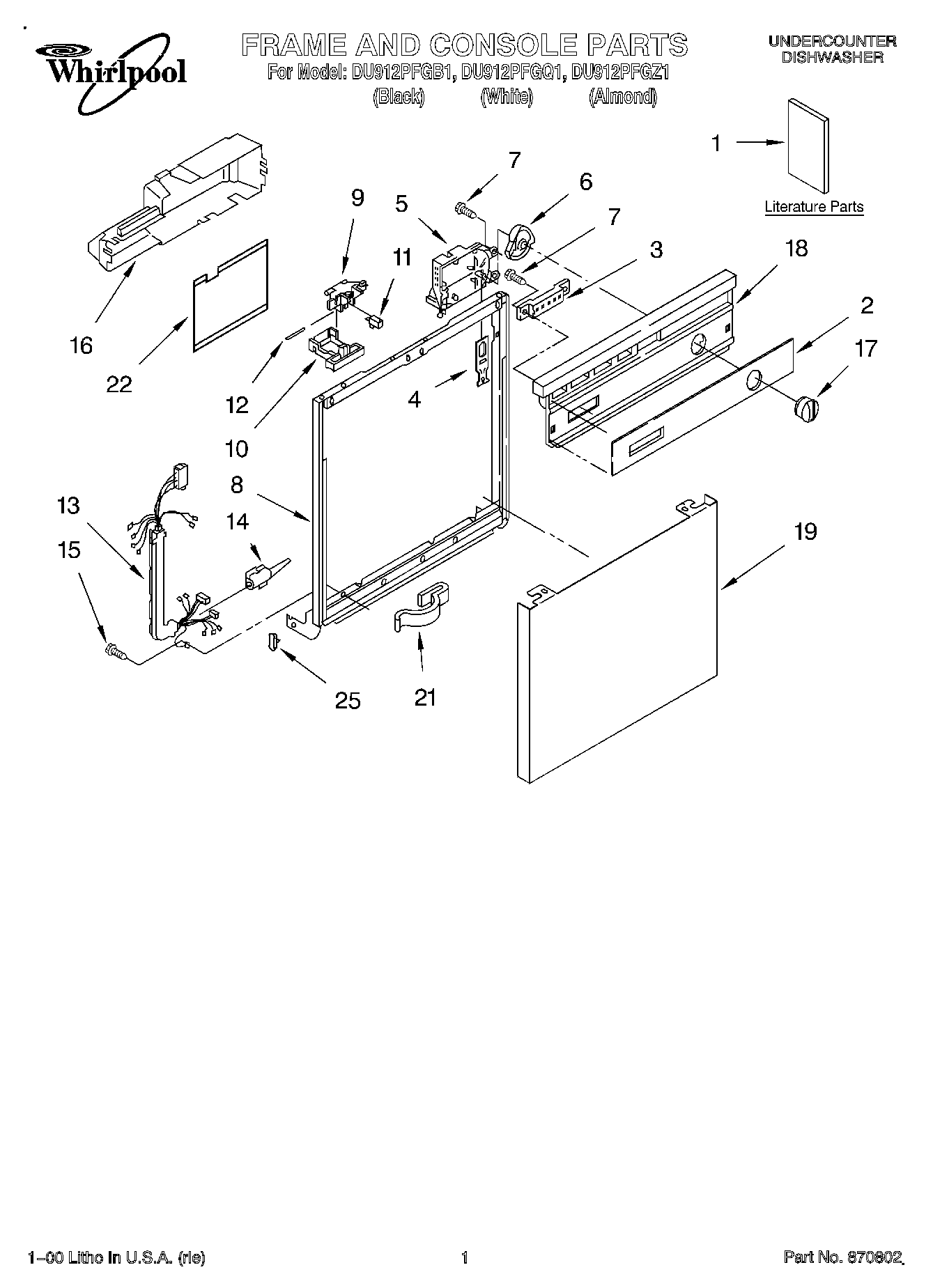

DU912PFGQ1 01 – FRAME AND CONSOLE, LITERATURE

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Wiring Diagram)
1	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	WPL LIT677967
2	Insert, Console (Black)
2	Insert, Console (White)
2	Insert, Console (Almond)
3	Switch, 5 Button (Black)
3	Switch, 5 Button (White)
3	Switch, 5 Button (Almond)
4	WP3369529 Whirlpool Dishwasher Follower
5	WP8535371 Whirlpool Dishwasher Timer
6	WP3378124 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch
10	Lever, Latch White
10	Lever, Latch (Almond)
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	3375348 Whirlpool Dishwasher Timer Knob
18	Console (Includes Item 2) (White)
18	Console (Includes Item 2) (Black)
18	Console (Includes Item 2) (Almond)
19	Panel Front (Almond Model)
19	Panel Front (Black Model)
19	Panel Front (White Model)
21	8528351 Whirlpool Clip
22	Shield, Control Cover
25	WP3373234 Whirlpool Dishwasher Bearing
