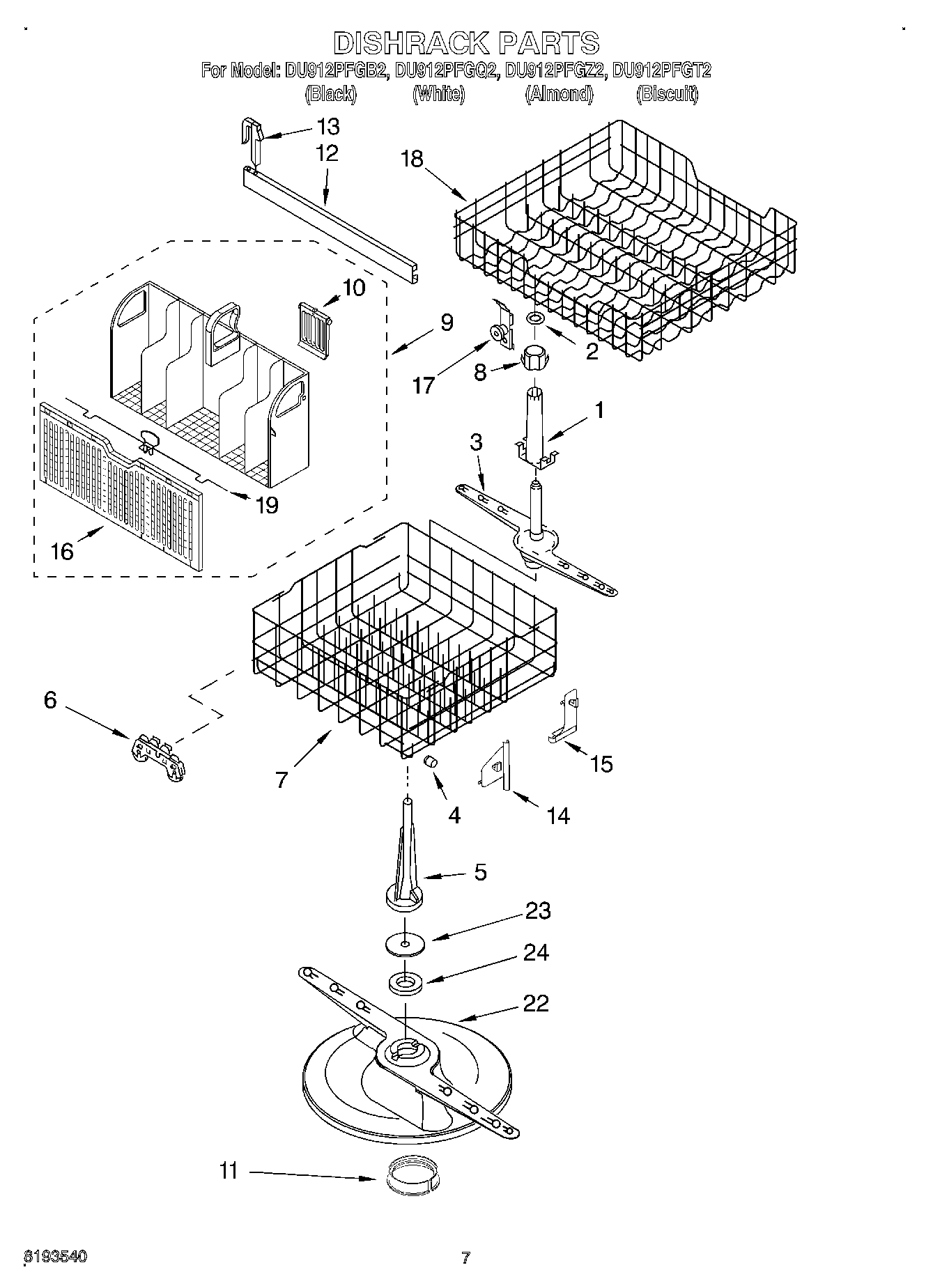

DU912PFGZ2 05 – DISHRACK

DU912PFGZ2 05 – DISHRACK

Written by

in

DU912PFGZ2 05 – DISHRACK

Products

PositionProduct
1Support, Arm (Also Order Items 2 & 8)
2Clip
3Spray Arm, Upper (Also Order Item 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7W10161215 Whirlpool Dishwasher Dishrack
8Support Lock, Spray Arm
9Silverware Basket Assembly
10Lid, Silverware Basket
11WP3376846 Whirlpool Seal
12WP3385089 Whirlpool Track
13WP3379941 Whirlpool Dishwasher Stop
148268867 Whirlpool Dishwasher Clip
158268868 Whirlpool Dishwasher Clip
16Door, Silverware Basket
17WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
19Latch Assembly
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
