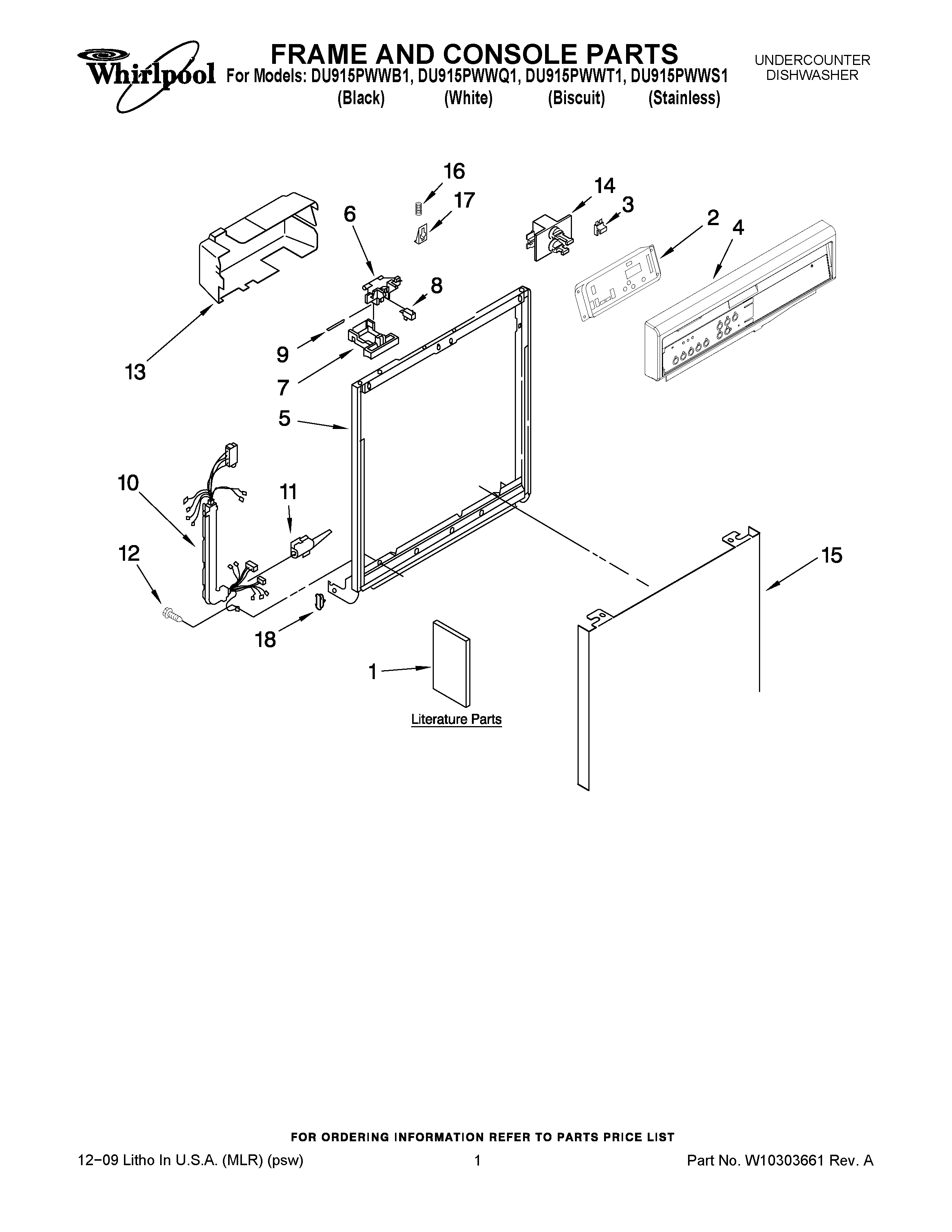

DU915PWWQ1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE ENGLISH/FRENCH
1GUIDE, USE & CARE SPANISH
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1TECH SHEET
1GUIDE, ENERGY
2CONTROL ELECTRONIC
3675813 Whirlpool Thermal Fuse Kit
4Console (Includes Insert & Active Overlay) (White)
4Console (Includes Insert & Active Overlay) (Biscuit)
4WPW10101960 Whirlpool Dishwasher Control Panel
5WP9743028 Whirlpool Dishwasher Frame
6WP3380854 Whirlpool Door Latch Bolt
7Lever, Latch
7Lever, Latch
7Lever, Latch White
8WPW10134019 Whirlpool Dishwasher Switch
9Pin, Switch (2)
10Harness and Protector
113376405 Whirlpool Dishwasher Elbow
12WP3400892 Whirlpool Dishwasher Screw
13Cover, Timer
14Motor, Dual
15FRONT PANEL (STAINLESS STEEL)
15Panel, Front (Biscuit)
15Panel Front (White Model)
15Panel Front (Black Model)
17675782 Whirlpool Dishwasher Catch
18WP3373234 Whirlpool Dishwasher Bearing
