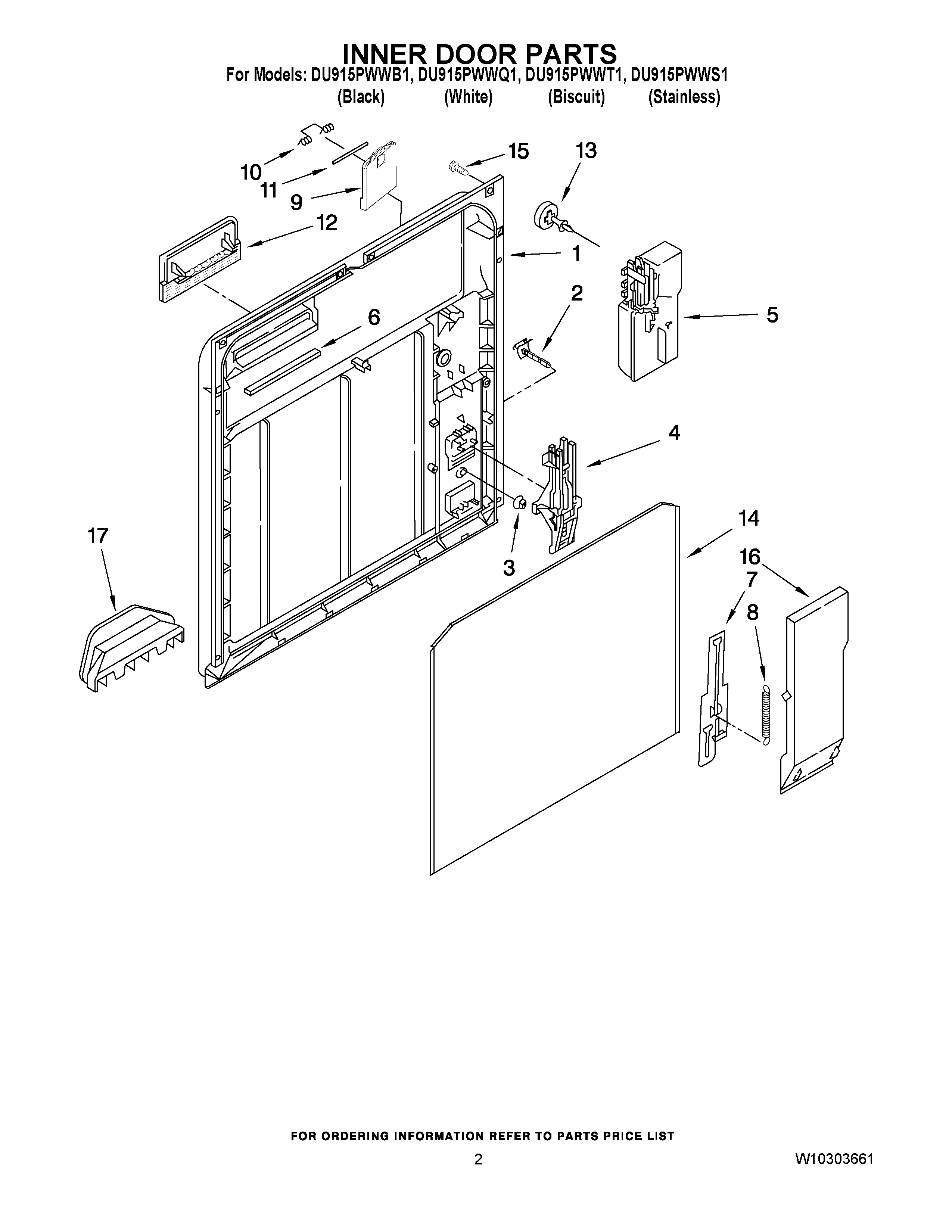

DU915PWWS1 02 – INNER DOOR PARTS

DU915PWWS1 02 – INNER DOOR PARTS

Written by

in

DU915PWWS1 02 – INNER DOOR PARTS

Products

PositionProduct
1Door, Inner (Includes Items 2 & 3)
3LATCH KIT
4WP3369505 Whirlpool Dishwasher Actuator
5WP8052028 Whirlpool Dishwasher Dispenser
6WP3379673 Whirlpool Dishwasher Seal
7DRAW BAR (LOWER DISPENSER)
8WP3368999 Whirlpool Dishwasher Spring
9WP3378138 Whirlpool Cover Assembly
10WP8066018 Whirlpool Spring Assembly
11WP3372028 Whirlpool Hinge Pin
12WP3371710 Whirlpool Dishwasher Screen
13WP3378134 Whirlpool Dishwasher Cap
14ABSORBER, SOUND
15WPW10348413 Whirlpool Dishwasher Screw
16Cover, Drip
17WP3379674 Whirlpool Dishwasher Vent Assembly
