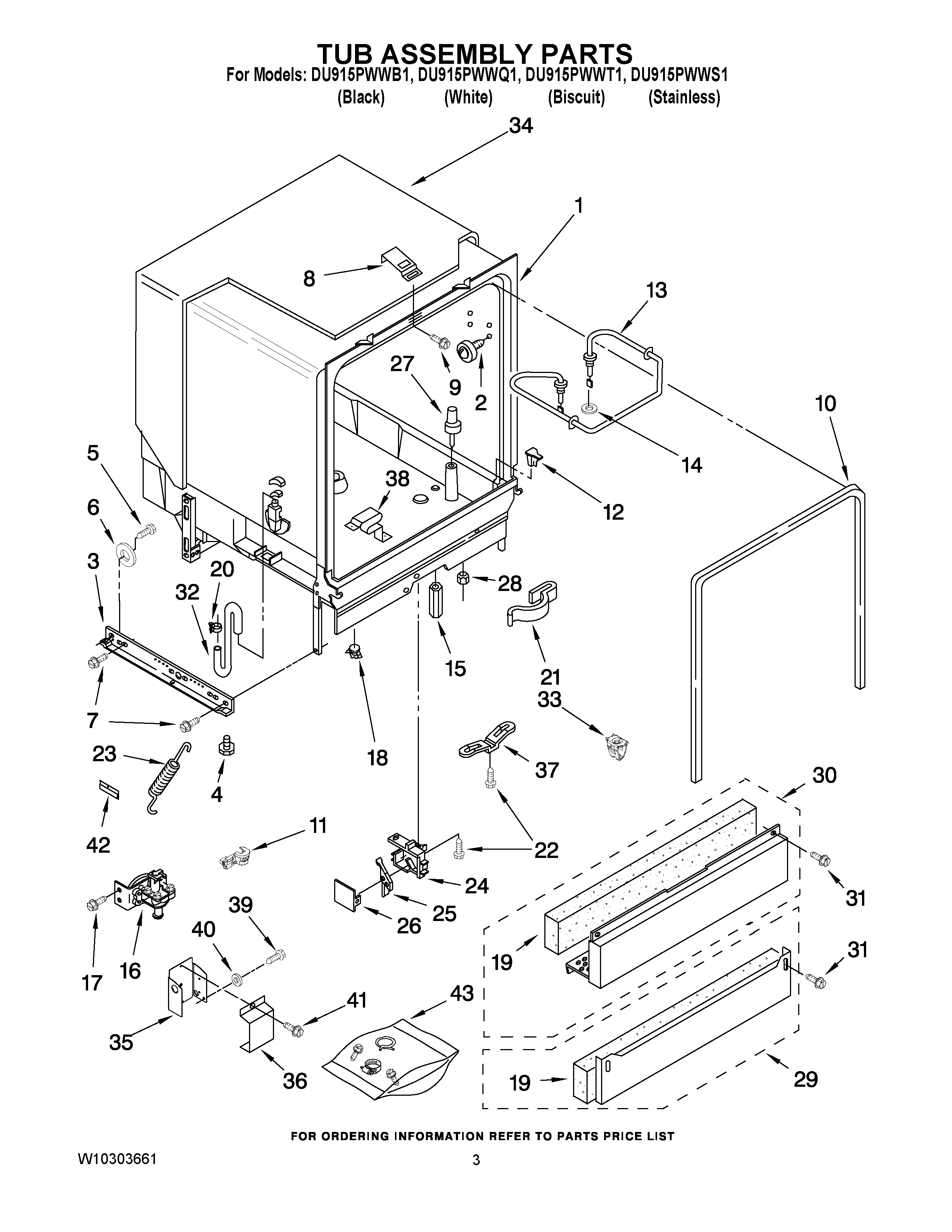

DU915PWWS1 03 – TUB ASSEMBLY PARTS

DU915PWWS1 03 – TUB ASSEMBLY PARTS

Written by

in

DU915PWWS1 03 – TUB ASSEMBLY PARTS

Products

PositionProduct
1Tub Assembly
2WP8528831 Whirlpool Dishwasher Mounting
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
11W11384788 Whirlpool Dishwasher Relief Strainer
12DEFLECTOR-DISHWASHER
13WPW10082896 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15WPW10477552 Whirlpool Dishwasher Terminal Nut
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
18WP661566 Whirlpool High Limit Thermostat
19Insulation
20WP596669 Whirlpool Hose Clamp
21WP3400935 Whirlpool Dishwasher Clip
22WP304231 Whirlpool Dishwasher Screw
23WP3379383 Whirlpool Dishwasher Spring
24Housing, Float Switch
25Switch, Float
268318219 Whirlpool Dishwasher Cover Housing
27WP3376397 Whirlpool Dishwasher Float Assembly
28Nut
29WP3379921 Whirlpool Dishwasher Toe Panel
29Toe, Panel (Includes Item 20)
29WP3379920 Whirlpool Dishwasher Toe Panel
30PANEL, ACCESS (BLACK)
30PANEL, ACCESS (WHITE)
30PANEL, ACCESS (BISCUIT)
30PANEL, ACCESS (STAINLESS)
31WP302868 Whirlpool Screw
32Hose, Inlet
33Clip, Grounding
34W11086533 Whirlpool Dishwasher Shield
35Terminal Box
36300068 Whirlpool Dishwasher Cover Assembly
37W10539489 Whirlpool Dishwasher Bracket-Stat
383379740 Whirlpool Dishwasher Heater Support
39WP3400014 Whirlpool Dishwasher Screw
40WP3378128 Whirlpool Dishwasher Washer
41WP489399 Whirlpool Refrigerator Screw
42Friction Pad (Velcro)
43Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
