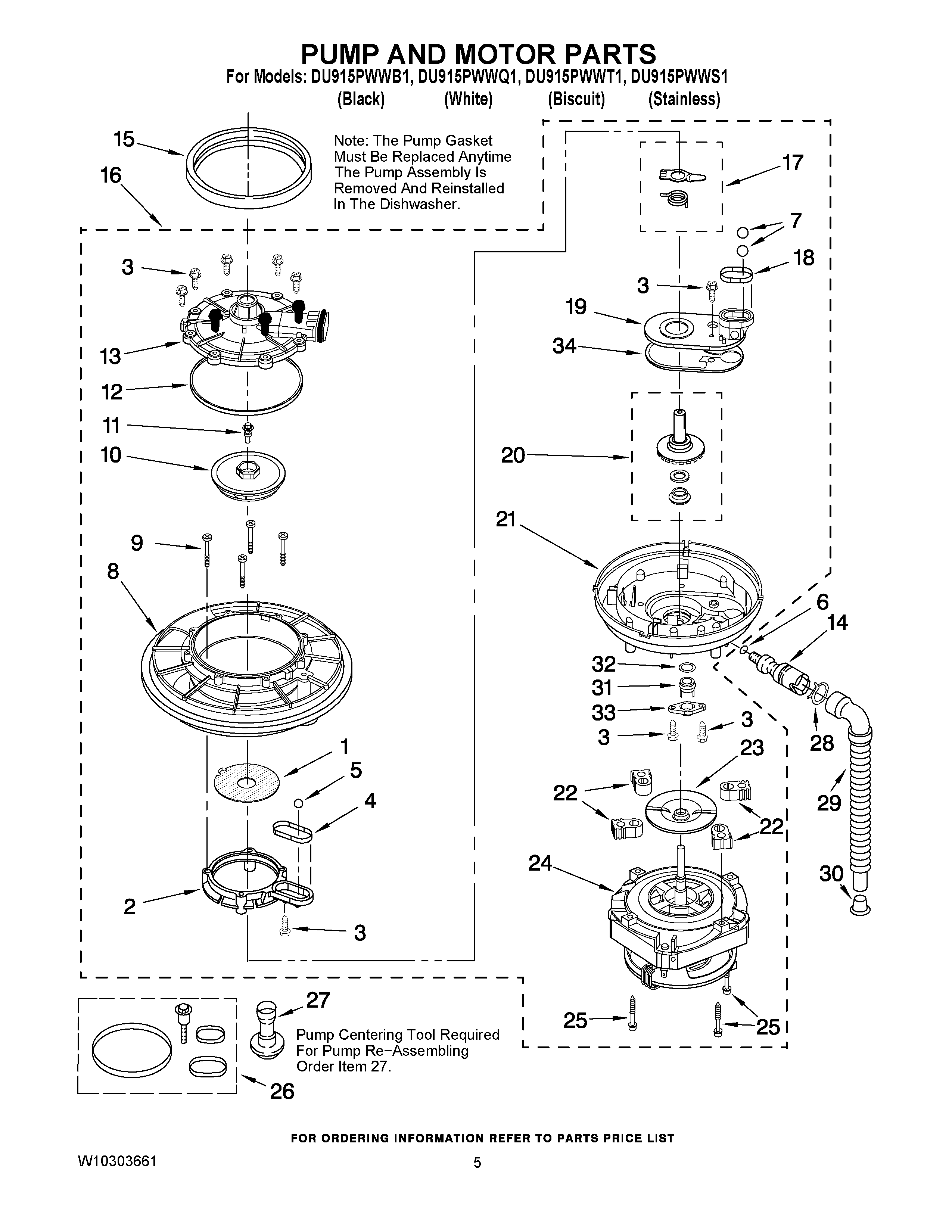

DU915PWWS1 04 – PUMP AND MOTOR PARTS

Products

Position	Product
1	Plate, Perforated (Also Order Item 30) See Note A.
2	Base, Inlet (Includes Items 1 & 5) (Also Order Item 30) See Note A.
3	WP9741232 Whirlpool Dishwasher Screw
4	WP302710 Whirlpool Dishwasher Ring Seal
5	Ball, Check
6	“O“ Ring
7	WP719929 Whirlpool Dishwasher Check Ball
8	Filter
9	Screw
11	WP3371152 Whirlpool Dishwasher Screw
12	WP302711 Whirlpool Dishwasher Ring Seal
13	8194582 Whirlpool Dishwasher Outlet
14	675238 Whirlpool Check Valve
15	717000 Whirlpool Dishwasher Gasket
16	PUMP & MOTOR ASSEMBLY (INCLUDES ITEM 16)
17	675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
18	Seal, Drain Cover
19	Cover, Drain (Also Order Item 30 & 40) See Note A.
20	WP8274950 Whirlpool Dishwasher Impeller
21	Base, Pump (Also Order Item 30) See Note A.
22	WP3367197 Whirlpool Dishwasher Support
23	W10909679 Whirlpool Dishwasher Slinger
24	Motor (Includes Item 27) (Also Order Item 30) See Note A.
25	Screw
26	Pump Seal Kit (Includes Items 4, 12, 13 & 22)
27	Tool, Pump Centering
28	WP356138 Whirlpool Hose Clamp
29	WP3374077 Whirlpool Dishwasher Drain Hose
30	W10168885 Whirlpool Cap
31	Thermistor
32	WP3376723 Whirlpool Dishwasher Seal
33	WP3376358 Whirlpool Dishwasher Retainer
34	WP9740674 Whirlpool Dishwasher Gasket
