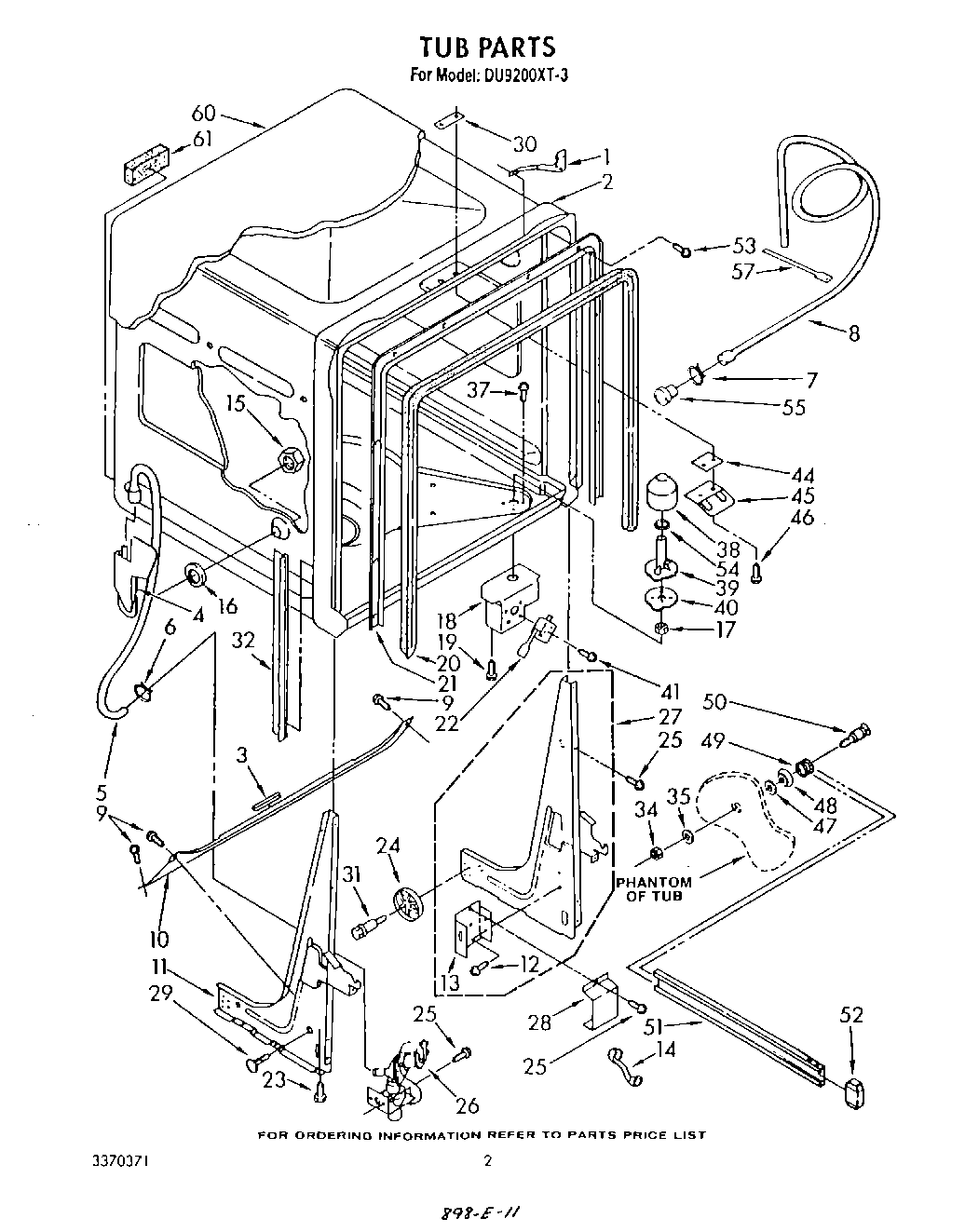

DU9200XT3 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3368584
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3368413
	WPL LIT3370371
	WPL LIT3367701
	WPL LIT3370047
	WPL LIT3368531
	WPL LIT3367228
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP488729 Whirlpool Refrigerator Door Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP489128 Whirlpool Refrigerator Screw
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
29	WP304666 Whirlpool Dishwasher Retainer
30	Nut, Twin Spring
31	Screw (2)
32	Retainer, Sound Shield
34	Nut, Lock
35	Washer (8)
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	WPW10144763 Whirlpool Tie Wire
60	W11086533 Whirlpool Dishwasher Shield
61	Toast
61	Golden Harvest
61	Golden Harvest (Uncut)
61	72113 Whirlpool Touch-Up Paint
61	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61	Almond (Uncut)
61	Leveler (Thinner)
61	WP72107 Whirlpool Touchup
61	799344 Whirlpool Refrigerator Paint
61	72017 Whirlpool Appliance Touch-Up Paint White
61	Paint, Spray (13 Oz.) (Platinum)
61	Enamal, Toast (1 Qt. Uncut)
61	Platinum (Uncut)
61	Kit, Epoxy Patch (White)
61	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
61	Vinyl Touch Up (Blue)
61	Enamel, New Avocado (1 Qt. Uncut)
61	Enamel, Coffee (1 Qt. Uncut)
61	285006 Whirlpool Spray
61	350930 Whirlpool White Spray Paint
61	Block, Foam (2)
61	350942 Whirlpool Spray Paint
61	WPL 72112
61	350956 Whirlpool Spray Assembly
