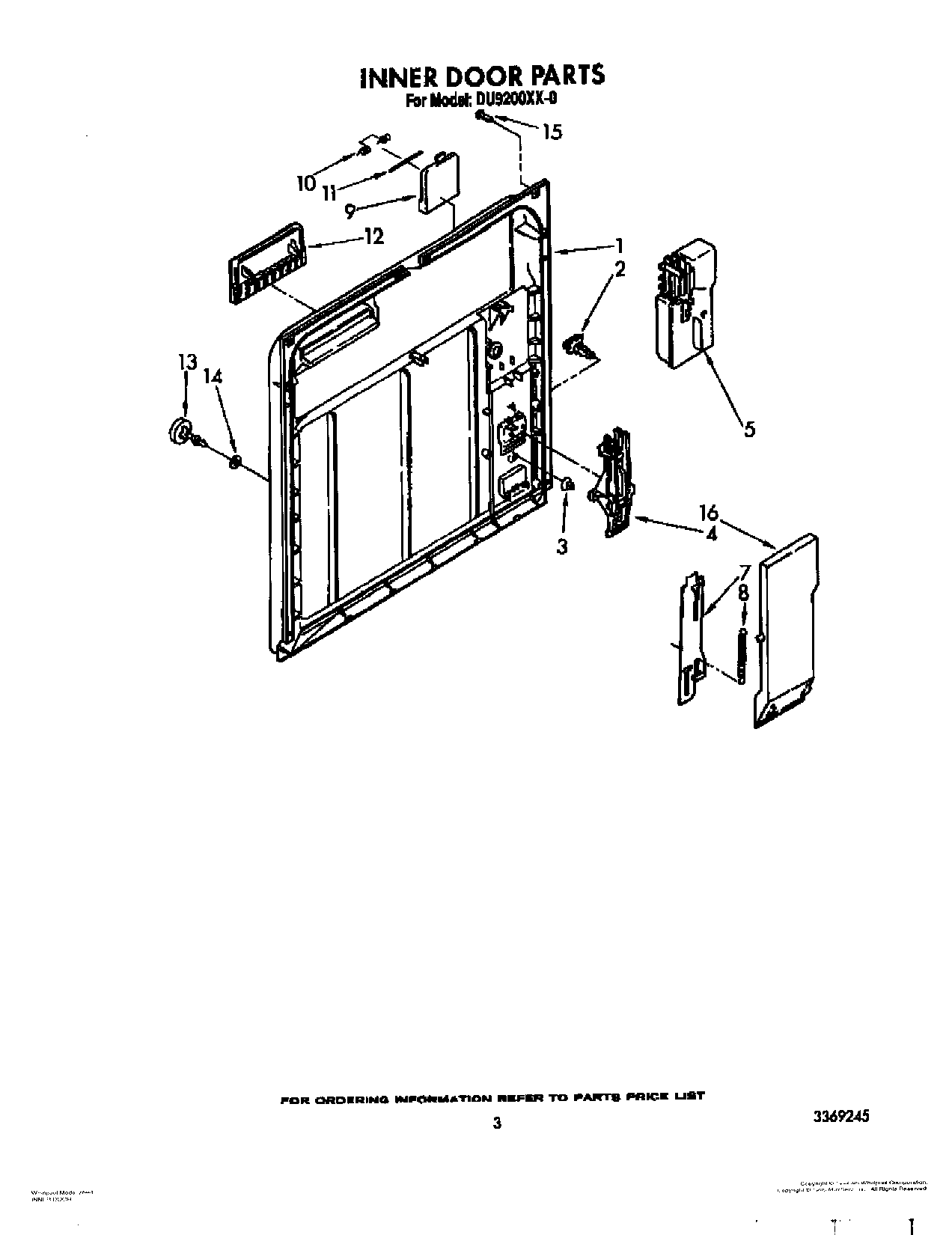

DU9200XX0 03 – INNER DOOR

DU9200XX0 03 – INNER DOOR

Written by

in

DU9200XX0 03 – INNER DOOR

Products

PositionProduct
1Inner Door (Also Order Latch Door Kit 676413)
3LATCH KIT
4WP3369505 Whirlpool Dishwasher Actuator
5WP8052028 Whirlpool Dishwasher Dispenser
7DRAW BAR (LOWER DISPENSER)
8WP3368999 Whirlpool Dishwasher Spring
10WP8066018 Whirlpool Spring Assembly
114387043 Whirlpool Door Latch Kit
12WP3371710 Whirlpool Dishwasher Screen
14WP3378134 Whirlpool Dishwasher Cap
15WPW10348409 Whirlpool Screw
16Cover, Drip
