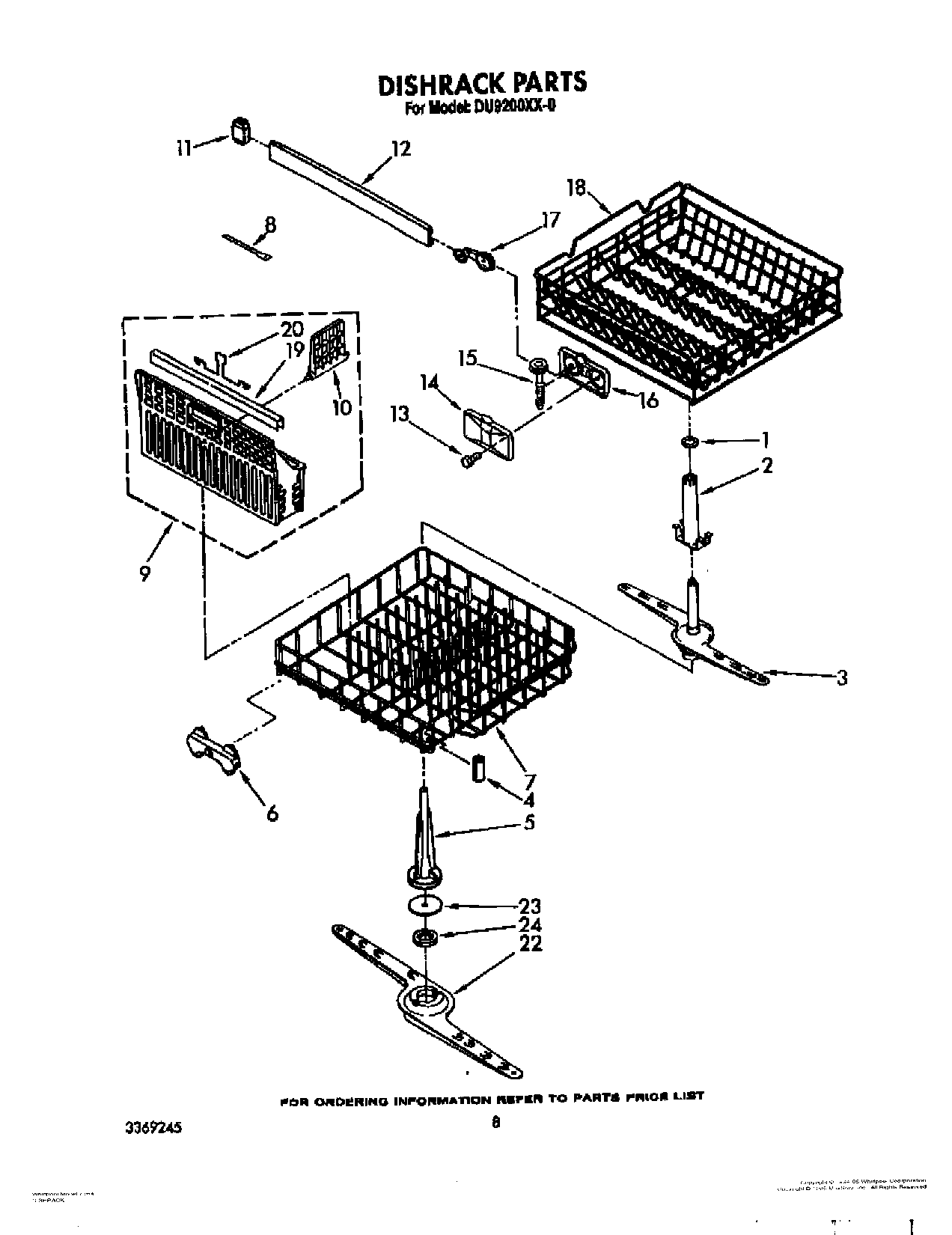

DU9200XX0 06 – DISHRACK

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Parts List
	Instructions, Installation
	Tech Sheet
	Guide, Use And Care
1	Clip
2	Support, Arm
3	WP304204 Whirlpool Dishwasher Spray Arm
4	Bumper
5	Tower
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	Cover, Housing (2)
15	Worm, Dishrack (2)
16	Housing, Gear (2)
17	Wheel & Gear Assembly (4)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	350956 Whirlpool Spray Assembly
24	72017 Whirlpool Appliance Touch-Up Paint White
24	WP72107 Whirlpool Touchup
24	Leveler (Thinner)
24	Almond (Uncut)
24	WPL 72112
24	350942 Whirlpool Spray Paint
24	Enamel, Black (1 Qt. Uncut)
24	Vinyl Touch Up (Blue)
24	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
24	WP719576 Whirlpool Dishwasher Bearing
24	Superior Black
