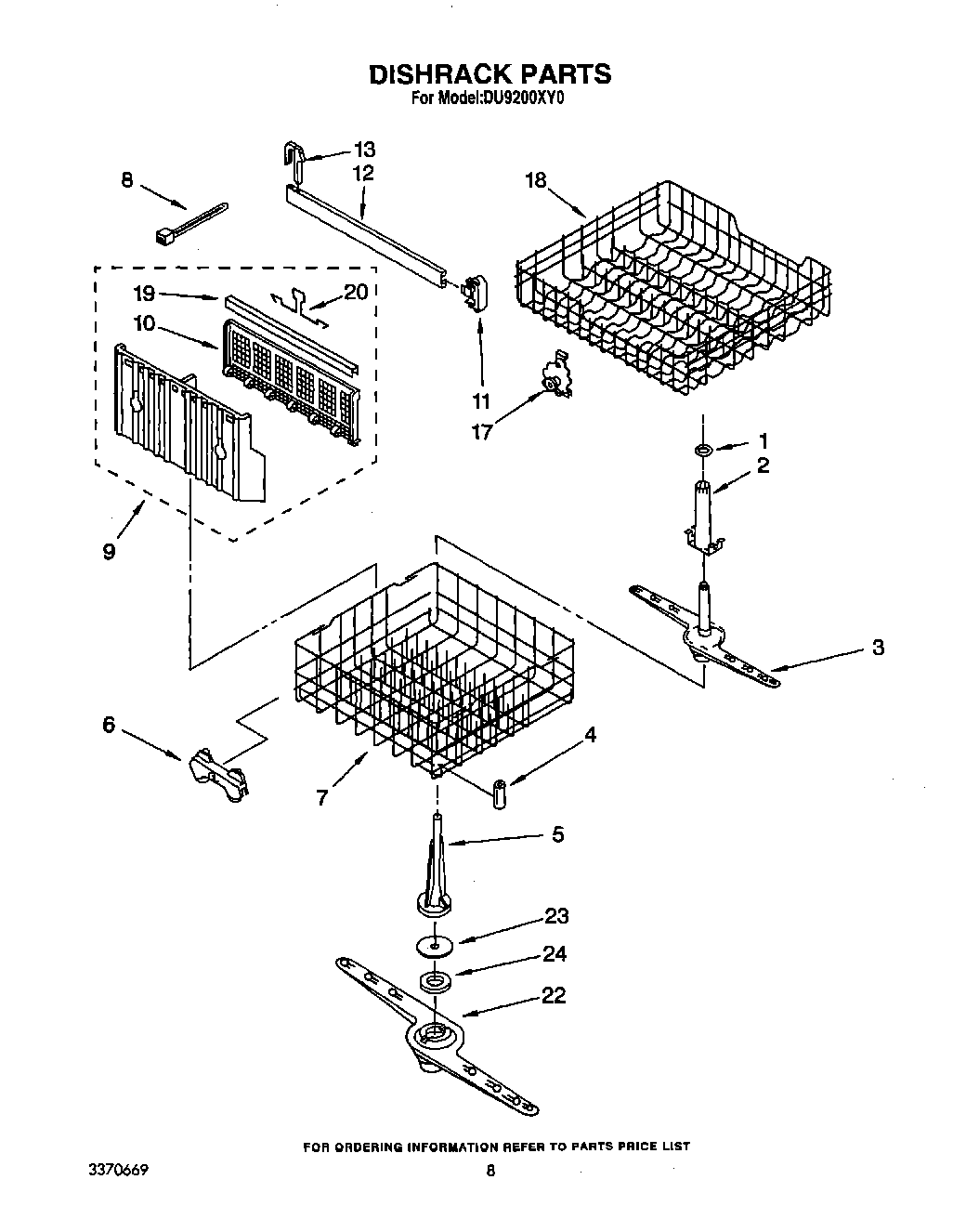

DU9200XY0 06 – DISHRACK, LIT/OPTIONALadmin2025-04-26T11:44:51+00:00DU9200XY0 06 – DISHRACK, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Tech Sheet |
| Instructions, Installation |
| Parts List |
| Energy Guide |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| Guide, Use And Care |
| 1 | Clip |
| 2 | Support, Arm |
| 3 | Spray Arm, Upper |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 8 | Clip, Strap |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Endcap, Front or Rear (2) |
| 12 | Track, Rack |
| 13 | Stop, Track (2) |
| 17 | Wheel and Axle Assembly (4) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | Platinum |
| 24 | Gold |
| 24 | WPL 72112 |
| 24 | Toast |
| 24 | Avocado |
| 24 | Vinyl Touch Up (Blue) |
| 24 | WP72107 Whirlpool Touchup |
| 24 | Leveler (Thinner) |
| 24 | Almond (Uncut) |
| 24 | 350942 Whirlpool Spray Paint |
| 24 | Enamel, Black (1 Qt. Uncut) |
| 24 | 285006 Whirlpool Spray |
| 24 | 350956 Whirlpool Spray Assembly |
| 24 | Side Panel Kit (White) |
| 24 | Side Panel Kit: (Almond) |
| 24 | Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
