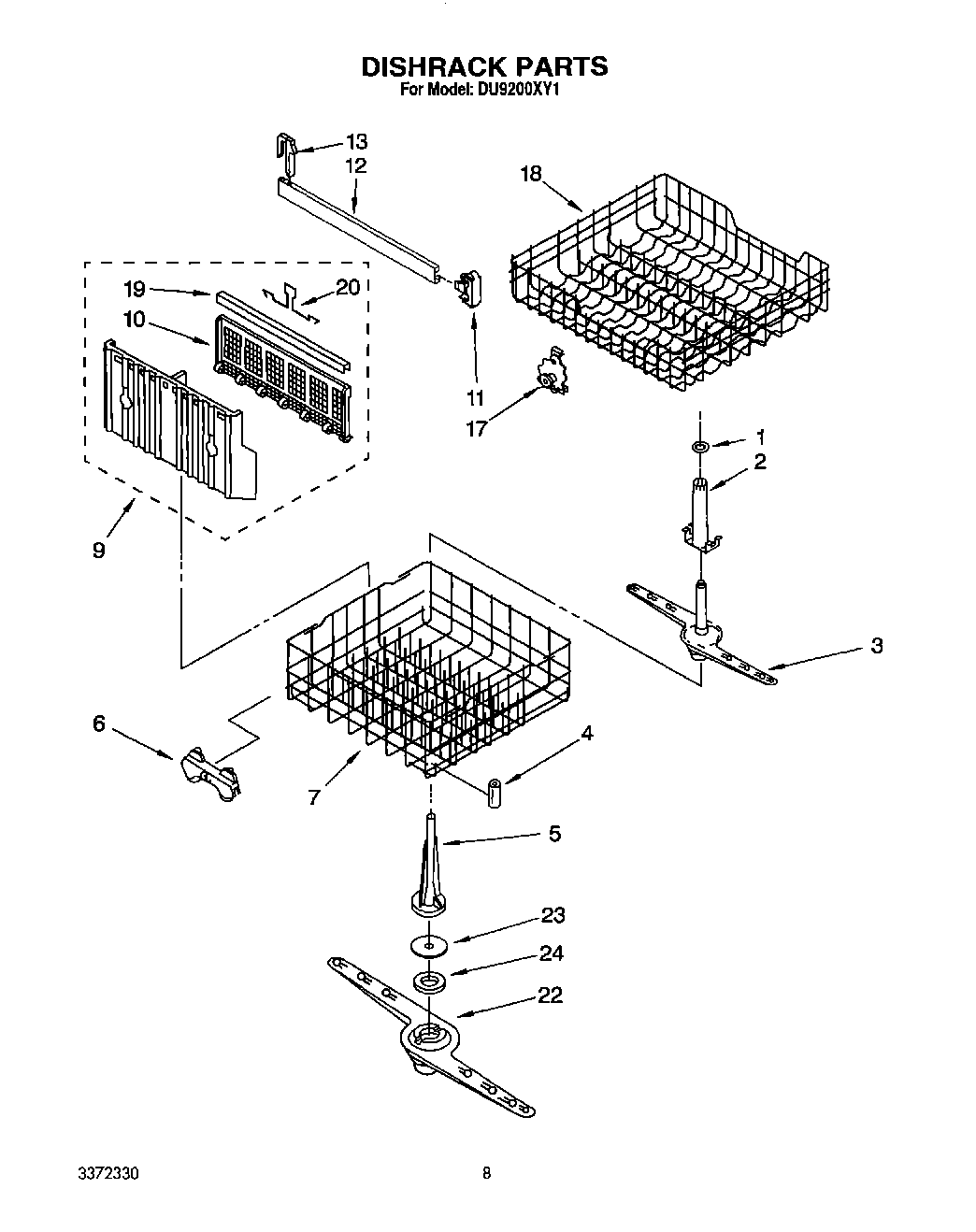

DU9200XY1 06 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3372330
	W10840471 Whirlpool Dishwasher Touch Up
	Side Panel Kit (White)
	Side Panel Kit: (Almond)
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3369093
	Avocado
	Gold
	Toast
	Platinum
	Guide, Use And Care
	Tech Sheet
	Energy Guide
	676458 Whirlpool Dishwasher Tine Tip
	675679 Whirlpool Dishwasher White Tip Tines
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	Enamel, Black (1 Qt. Uncut)
	350956 Whirlpool Spray Assembly
	WP676455 Whirlpool Dishwasher Touch-Up
	285006 Whirlpool Spray
	WP676453 Whirlpool Dishwasher Touch-Up
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	Wheel and Axle Assembly (4)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
