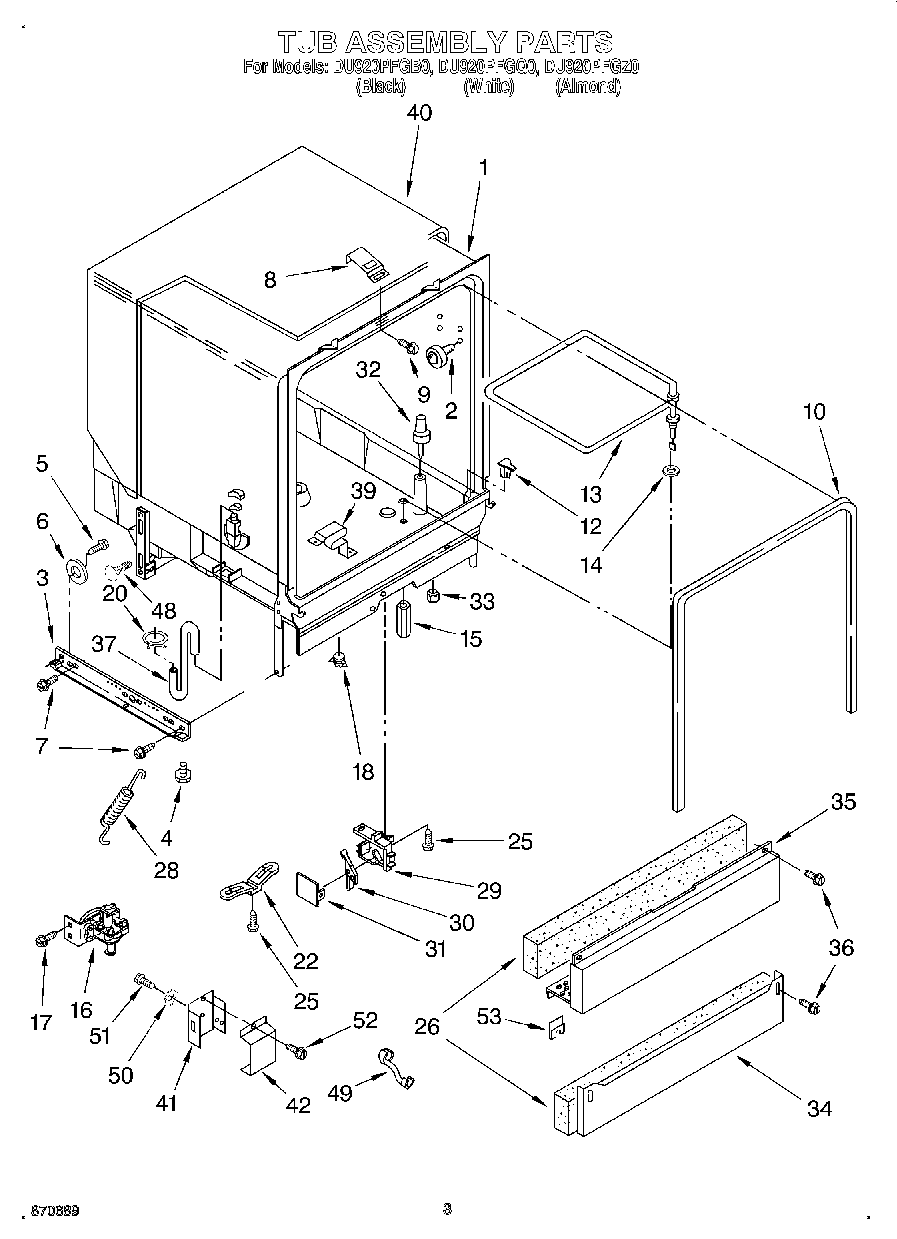

DU920PFGB0 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
12	DEFLECTOR-DISHWASHER
13	WPW10082896 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
20	WP596669 Whirlpool Hose Clamp
22	W10539489 Whirlpool Dishwasher Bracket-Stat
25	WP304231 Whirlpool Dishwasher Screw
26	Insulation
28	WP3379383 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
34	Toe Panel (Includes Item 11) (Almond Model)
34	WP3379921 Whirlpool Dishwasher Toe Panel
35	Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
35	Access Panel & Clip Assembly (Includes Items 11 & 12) (Almond Model)
35	Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
39	3379740 Whirlpool Dishwasher Heater Support
40	W11086533 Whirlpool Dishwasher Shield
41	Terminal Box
42	300068 Whirlpool Dishwasher Cover Assembly
48	WP304666 Whirlpool Dishwasher Retainer
49	Relief, Strain
50	WP3378128 Whirlpool Dishwasher Washer
51	WP3400014 Whirlpool Dishwasher Screw
52	Screw
53	Clip, Grounding
