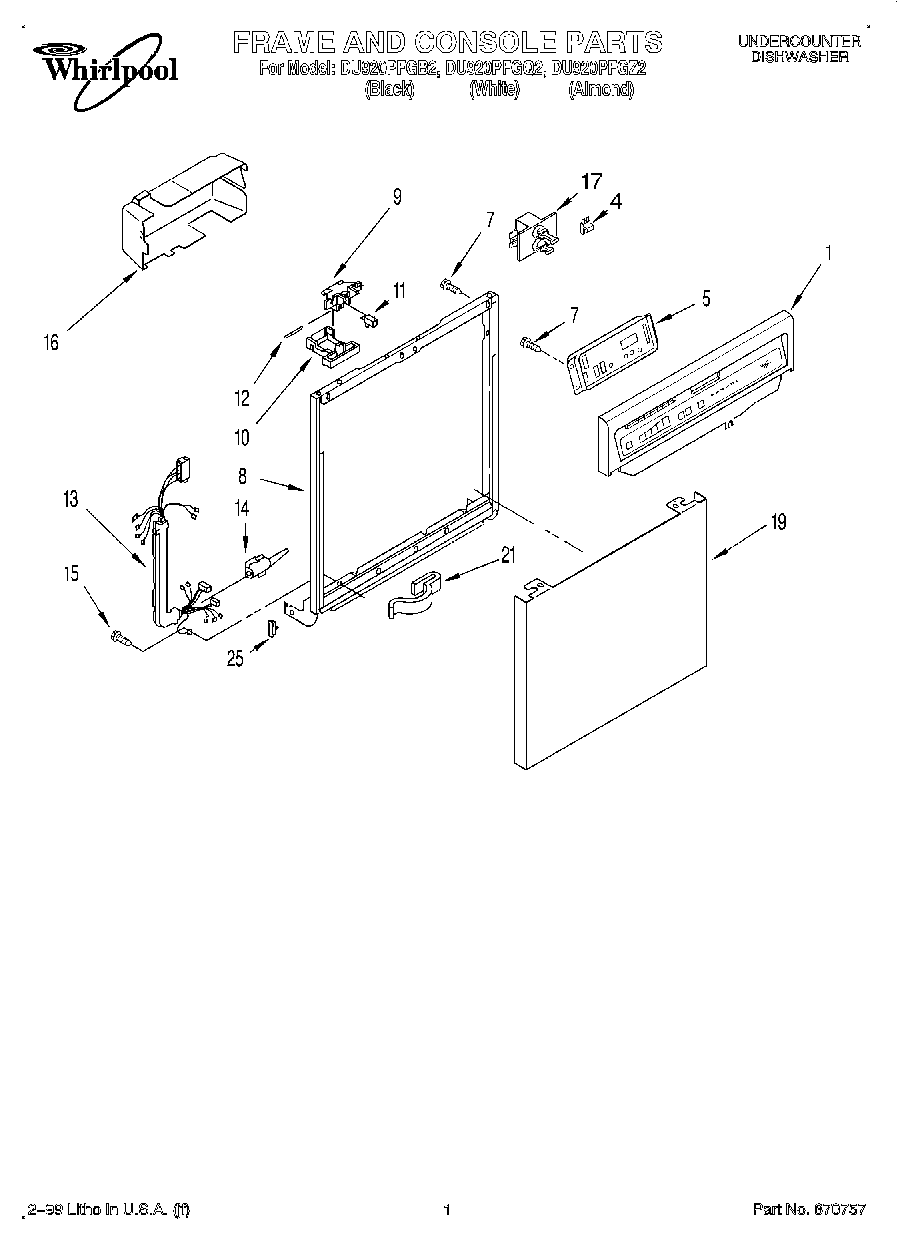

DU920PFGB2 01 – FRAME AND CONSOLE

DU920PFGB2 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Active Overlay) (Almond)
1Console (Includes Item 2)
1Console (Includes Item 2)
4675813 Whirlpool Thermal Fuse Kit
5Control, Electronic
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
10Lever, Latch (Almond)
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
17Motor, Dual
19Panel Front (Black Model)
19Panel Front (White Model)
19Panel Front (Almond Model)
218528351 Whirlpool Clip
25WP3373234 Whirlpool Dishwasher Bearing
