DU920PFGZ4 05 – DISHRACK

DU920PFGZ4 05 – DISHRACK

Written by

in

DU920PFGZ4 05 – DISHRACK

Products

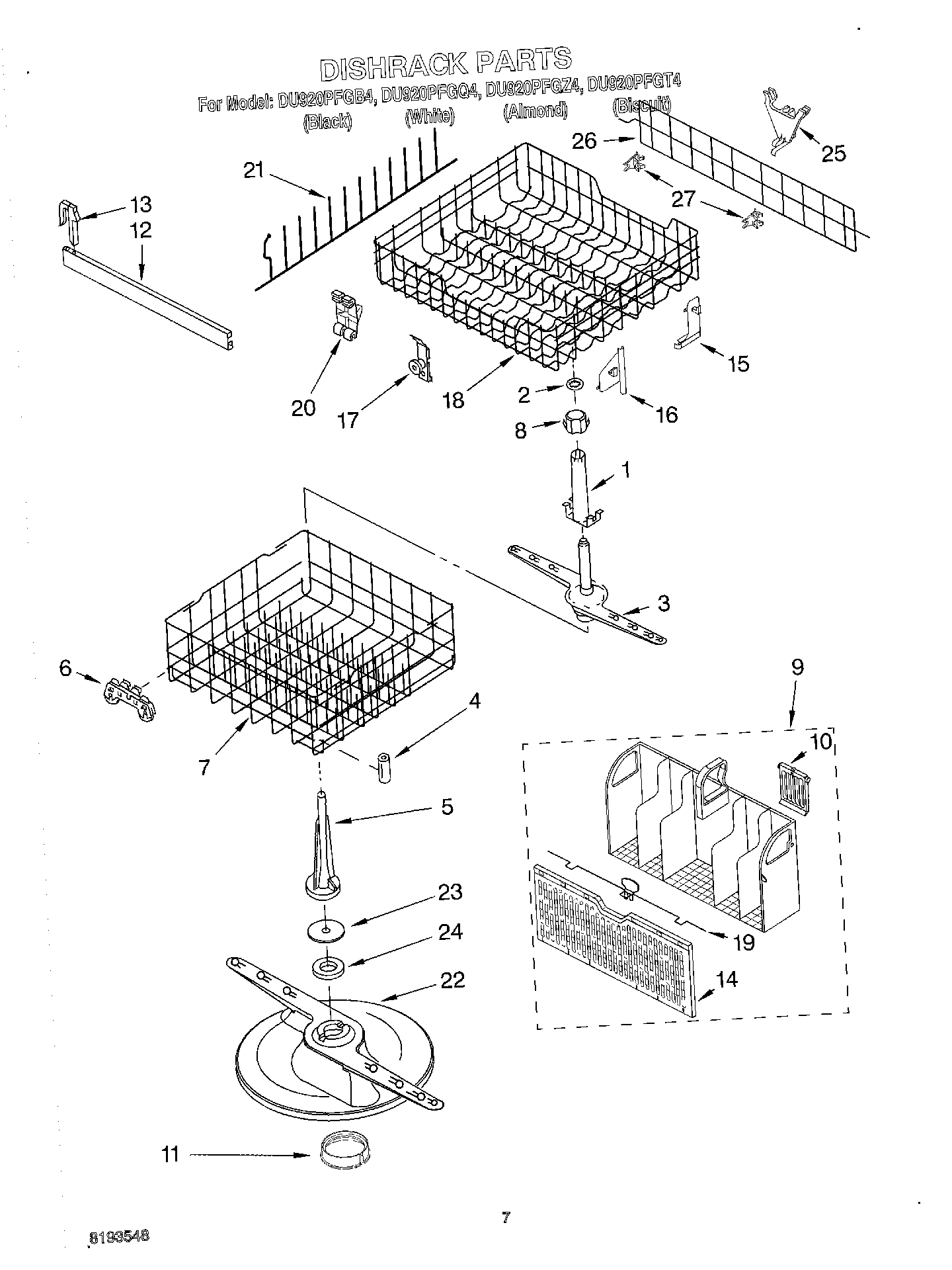

PositionProduct
1Support, Arm (Also Order Items 2 & 8)
2Clip
3Spray Arm, Upper (Also Order Item 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7W10311986 Whirlpool Dishwasher Lower Rack
8Support Lock, Spray Arm
9Silverware Basket Assembly
10Lid, Silverware Basket
11WP3376846 Whirlpool Seal
12WP3385089 Whirlpool Track
13WP3379941 Whirlpool Dishwasher Stop
14Door, Silverware Basket
158268868 Whirlpool Dishwasher Clip
168268867 Whirlpool Dishwasher Clip
17WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
19Latch Assembly
20WP8268522 Whirlpool Dishwasher Retainer
21W10728160 Whirlpool Tine Assembly
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
25WP8268523 Whirlpool Dishwasher Pivot Tine
26WP8268828 Whirlpool Dishwasher Shelf
278268826 Whirlpool Dishwasher Cup Holder
