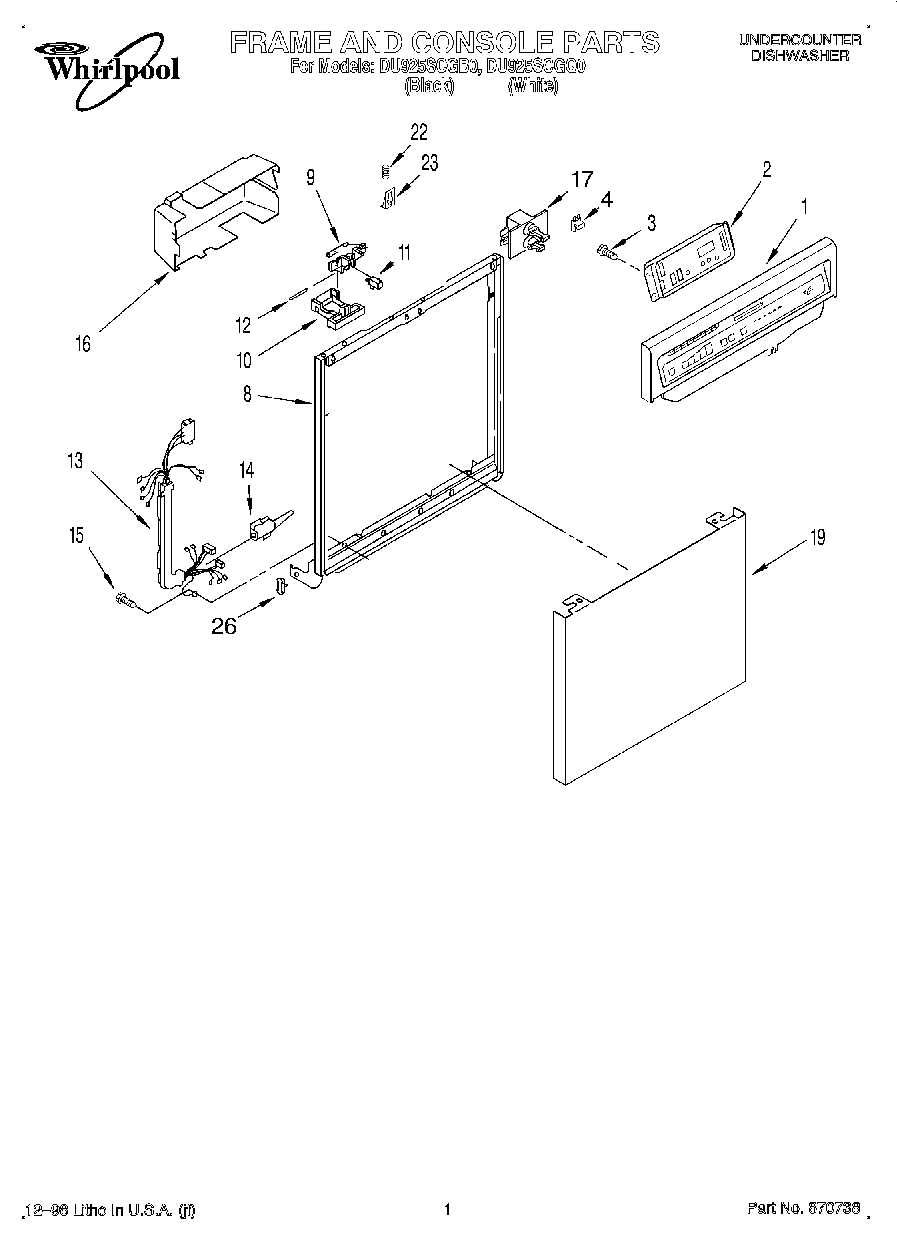

DU925SCGQ0 01 – FRAME AND CONSOLEadmin2025-04-26T11:45:13+00:00DU925SCGQ0 01 – FRAME AND CONSOLE ProductsPositionProduct1Console (Includes Item 2)1Console (Includes Item 2)2Control, Electronic3WP304231 Whirlpool Dishwasher Screw4675813 Whirlpool Thermal Fuse Kit8WP9743028 Whirlpool Dishwasher Frame9WP3380854 Whirlpool Door Latch Bolt10Lever, Latch10Lever, Latch White11Shield, Switch12Pin, Switch (2)13Harness and Protector143376405 Whirlpool Dishwasher Elbow15WP488234 Whirlpool Air Conditioner Screw16Cover, Timer17Motor, Dual19Panel Front (White Model)19Panel Front (Black Model)23675782 Whirlpool Dishwasher Catch26WP3373234 Whirlpool Dishwasher Bearing
