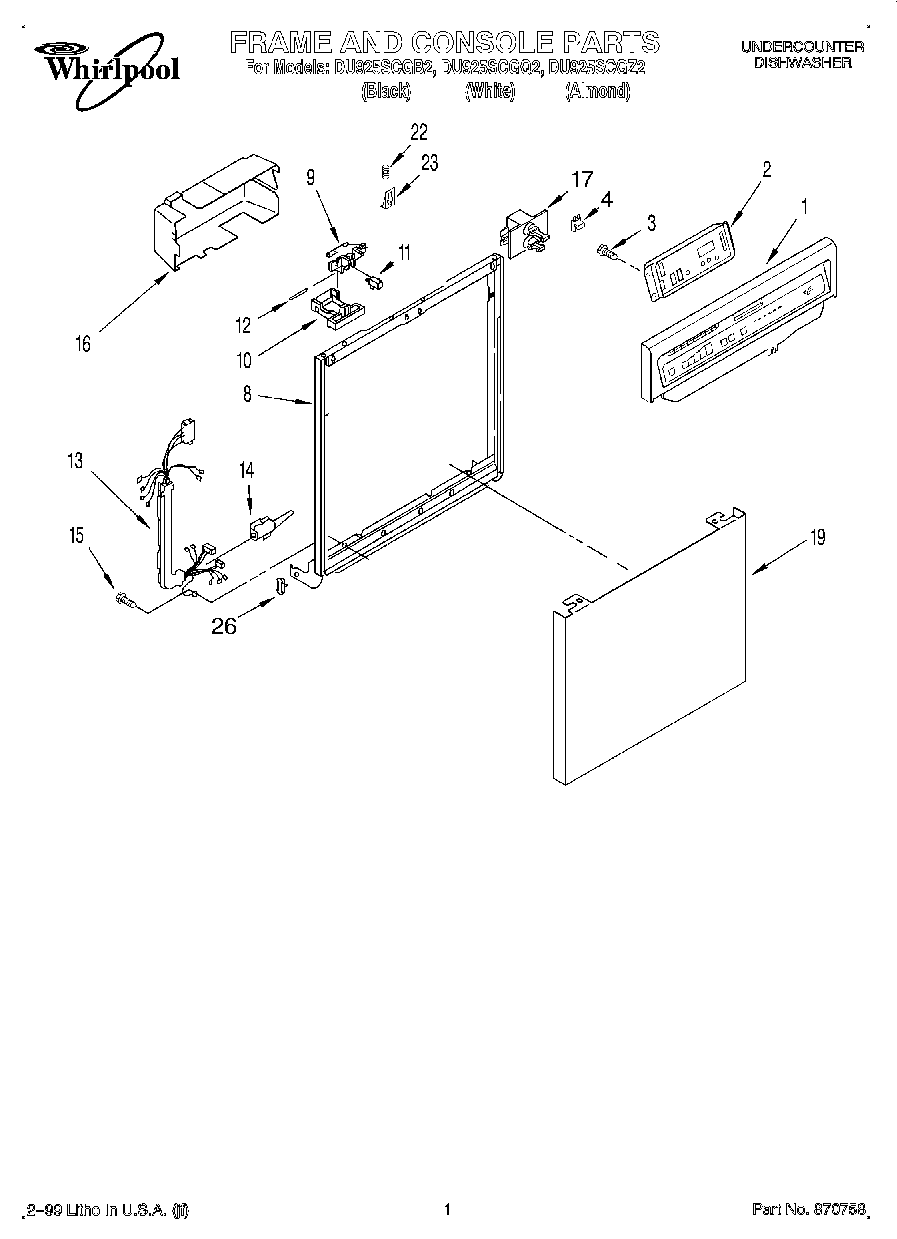

DU925SCGQ2 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Active Overlay) (Almond)
1	Console (Includes Item 2)
1	Console (Includes Item 2)
2	Control, Electronic
3	WP304231 Whirlpool Dishwasher Screw
4	675813 Whirlpool Thermal Fuse Kit
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch (Almond)
10	Lever, Latch
10	Lever, Latch White
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	Motor, Dual
19	Panel Front (Almond Model)
19	Panel Front (White Model)
19	Panel Front (Black Model)
23	675782 Whirlpool Dishwasher Catch
26	WP3373234 Whirlpool Dishwasher Bearing
