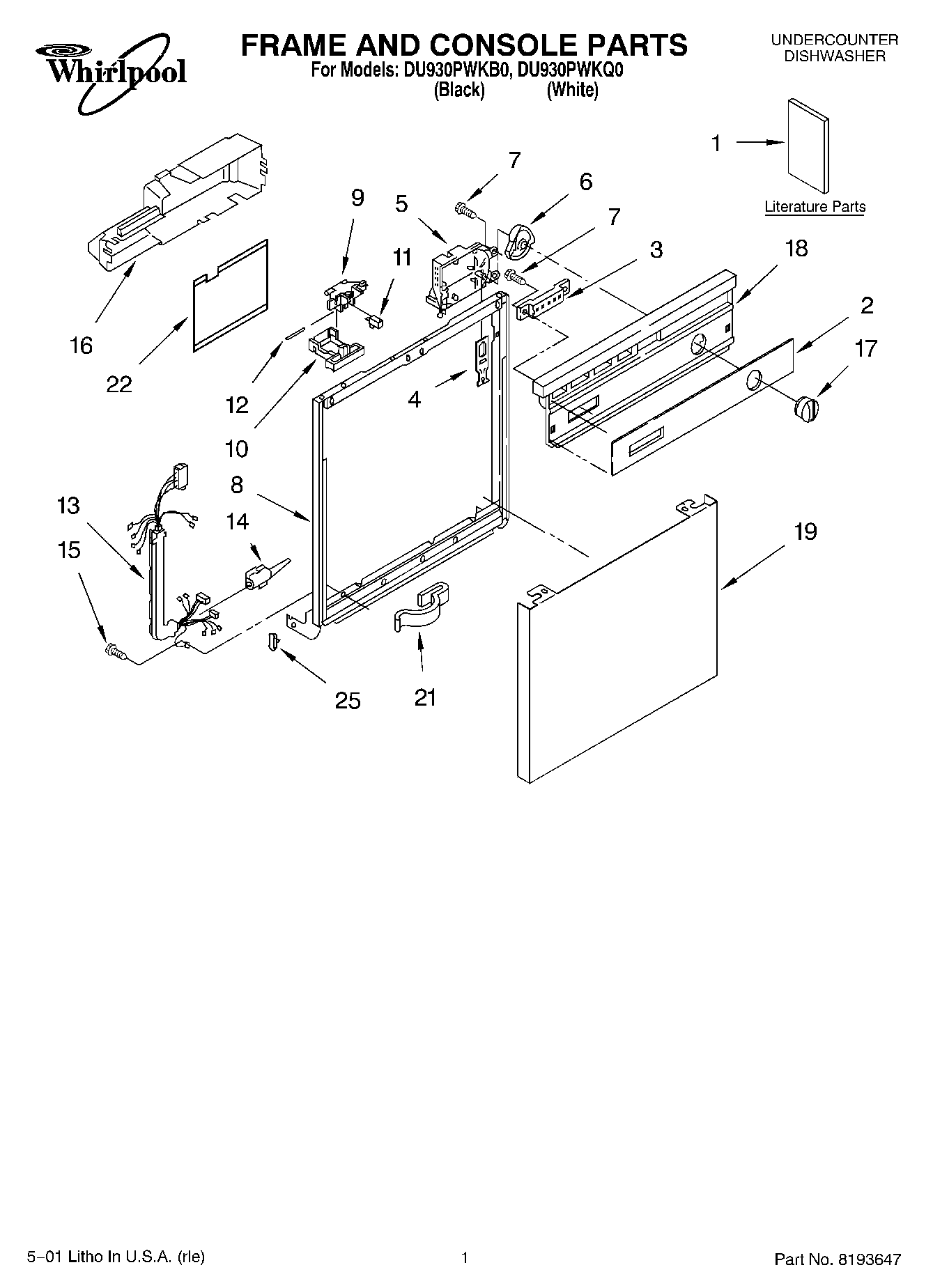

DU930PWKB0 01 – FRAME & CONSOLE, LITERATURE
Written by
in
DU930PWKB0 01 – FRAME & CONSOLE, LITERATURE
Products
Position
Product
1
Instructions, Installation (Supplement) (Locating Your Water Supply)
1
Literature Parts (Instructions, Installation)
1
WPL LIT677967
1
Literature Parts (Wiring Diagram)
1
Literature Parts (Energy Guide)
1
Literature Parts (Guide, Use & Care)
2
Insert, Console (White)
2
Insert, Console (Black)
3
Switch, 7 Button
4
WP3369529 Whirlpool Dishwasher Follower
5
WP8535371 Whirlpool Dishwasher Timer
6
WP3378124 Whirlpool Dishwasher Cam
7
WP304231 Whirlpool Dishwasher Screw
8
WP9743028 Whirlpool Dishwasher Frame
9
WP3380854 Whirlpool Door Latch Bolt
10
Lever, Latch
10
Lever, Latch White
11
Shield, Switch
12
Pin, Switch (2)
13
Harness and Protector
14
3376405 Whirlpool Dishwasher Elbow
15
WP3400892 Whirlpool Dishwasher Screw
16
Cover, Timer
17
8275308 Whirlpool Dishwasher Timer Knob
18
Console (Includes Item 2) (White)
18
Console (Includes Item 2) (Black)
19
Panel Front (White Model)
19
Panel Front (Black Model)
21
WP3400935 Whirlpool Dishwasher Clip
22
Shield, Control Cover
25
WP3373234 Whirlpool Dishwasher Bearing
←
