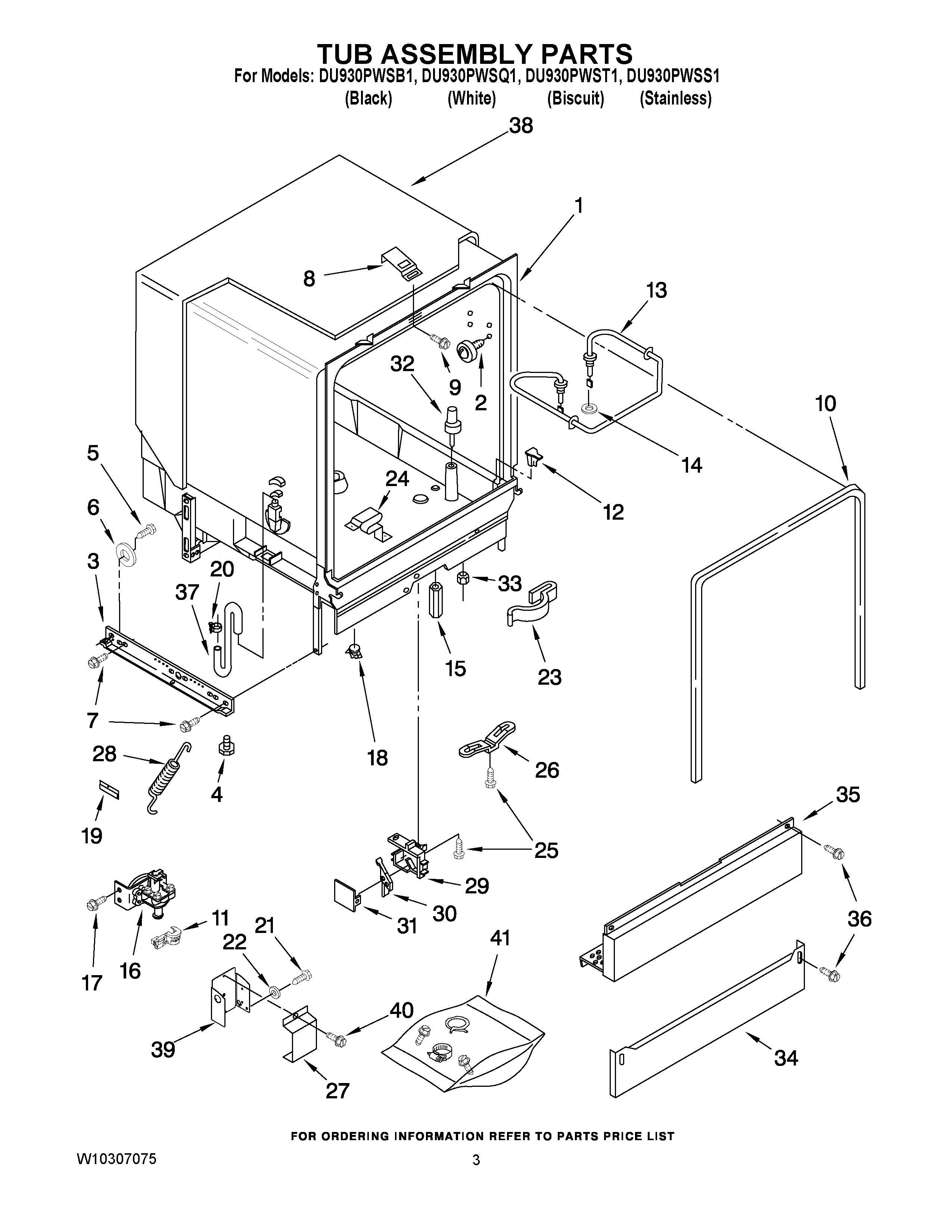

DU930PWSB1 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	WP8528831 Whirlpool Dishwasher Mounting
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	W11384788 Whirlpool Dishwasher Relief Strainer
12	DEFLECTOR-DISHWASHER
13	WPW10082896 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
19	Friction Pad (Velcro)
20	WP596669 Whirlpool Hose Clamp
21	WP3400014 Whirlpool Dishwasher Screw
22	WP3378128 Whirlpool Dishwasher Washer
23	WP3400935 Whirlpool Dishwasher Clip
24	3379740 Whirlpool Dishwasher Heater Support
25	WP304231 Whirlpool Dishwasher Screw
26	W10539489 Whirlpool Dishwasher Bracket-Stat
27	300068 Whirlpool Dishwasher Cover Assembly
28	WP3379383 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	8318219 Whirlpool Dishwasher Cover Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	WP3379921 Whirlpool Dishwasher Toe Panel
34	Toe Panel (Includes Item 11) (Biscuit)
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	PANEL, ACCESS (STAINLESS)
35	Panel, Access (Biscuit)
35	Access Panel (White)
35	Panel, Access (Black)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	W11086533 Whirlpool Dishwasher Shield
39	Terminal Box
40	WP489399 Whirlpool Refrigerator Screw
41	Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
