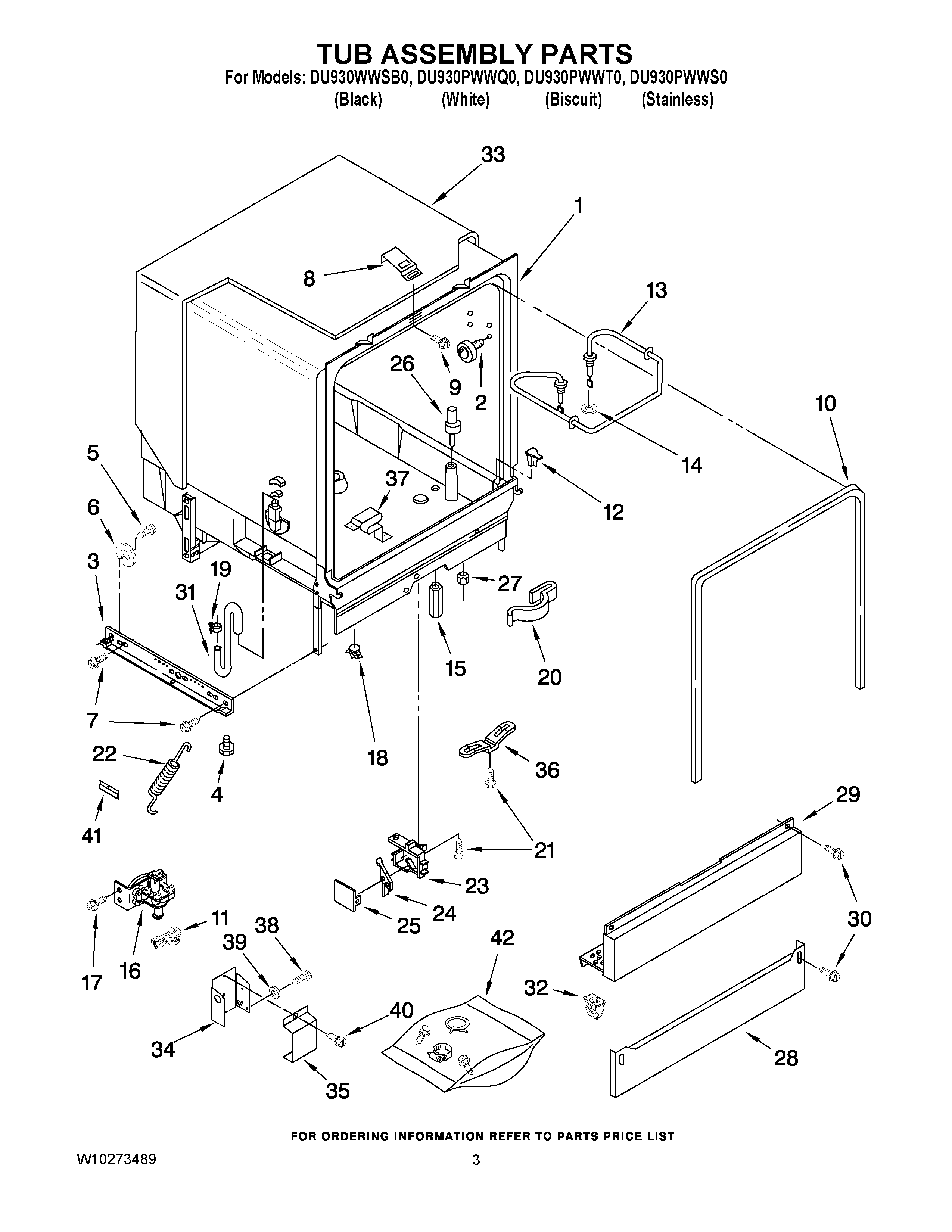

DU930PWWS0 03 – TUB ASSEMBLY PARTS

DU930PWWS0 03 – TUB ASSEMBLY PARTS

Written by

in

DU930PWWS0 03 – TUB ASSEMBLY PARTS

Products

PositionProduct
1Tub Assembly
2WP8528831 Whirlpool Dishwasher Mounting
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
11W11384788 Whirlpool Dishwasher Relief Strainer
12DEFLECTOR-DISHWASHER
13WPW10082896 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15WPW10477552 Whirlpool Dishwasher Terminal Nut
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
18WP661566 Whirlpool High Limit Thermostat
19WP596669 Whirlpool Hose Clamp
20WP3400935 Whirlpool Dishwasher Clip
21WP304231 Whirlpool Dishwasher Screw
22WP3379383 Whirlpool Dishwasher Spring
23Housing, Float Switch
24Switch, Float
258318219 Whirlpool Dishwasher Cover Housing
26WP3376397 Whirlpool Dishwasher Float Assembly
27Nut
28WP3379920 Whirlpool Dishwasher Toe Panel
28Toe Panel (Includes Item 11) (Biscuit)
28WP3379921 Whirlpool Dishwasher Toe Panel
29PANEL, ACCESS (STAINLESS)
29Panel, Access (Biscuit)
29Panel, Access (Black)
29Access Panel (White)
30WP302868 Whirlpool Screw
31Hose, Inlet
32Clip, Grounding
33W11086533 Whirlpool Dishwasher Shield
34Terminal Box
35300068 Whirlpool Dishwasher Cover Assembly
36W10539489 Whirlpool Dishwasher Bracket-Stat
373379740 Whirlpool Dishwasher Heater Support
38WP3400014 Whirlpool Dishwasher Screw
39WP3378128 Whirlpool Dishwasher Washer
40WP489399 Whirlpool Refrigerator Screw
41Friction Pad (Velcro)
42Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
