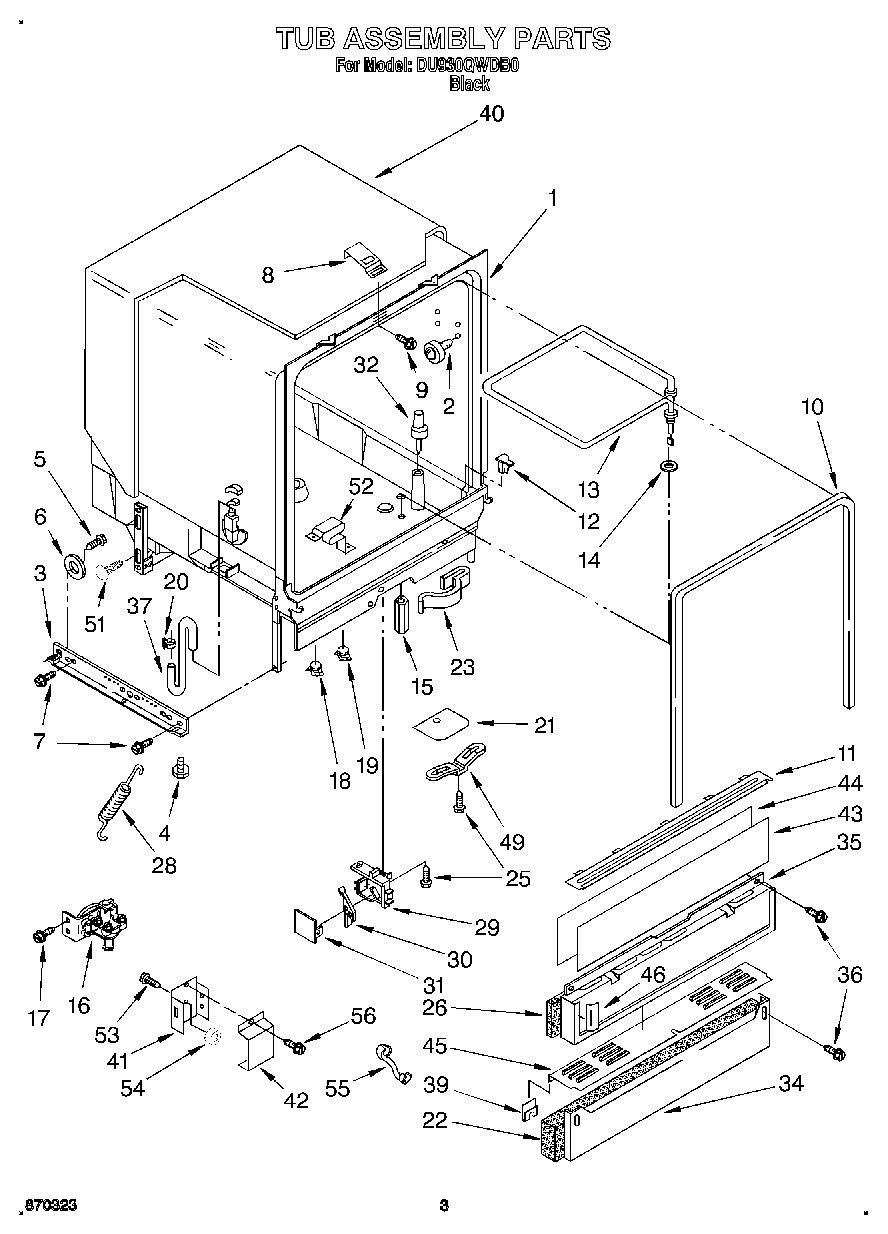

DU930QWDB0 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3372412 Whirlpool Dishwasher Retainer
12	DEFLECTOR-DISHWASHER
13	Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
19	Thermostat
20	WP596669 Whirlpool Hose Clamp
21	Shield, Thermostat
22	Insulation
23	8528351 Whirlpool Clip
25	WP304231 Whirlpool Dishwasher Screw
26	Insulation
28	WP3374343 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	Panel, Front Access (Almond/Black)
44	Spacer, Corrugated
45	Extension & Clip Assembly
46	Trim, Side (2)
49	Bracket, Thermostat
51	WP304666 Whirlpool Dishwasher Retainer
52	Support, Heater
53	WP250830 Whirlpool Refrigerator Screw
54	WP488130 Whirlpool Air Conditioner Nut
55	Relief, Strain
56	Screw
