DU930QWDB3 05 – DISHRACK, LIT/OPTIONAL
Written by
in

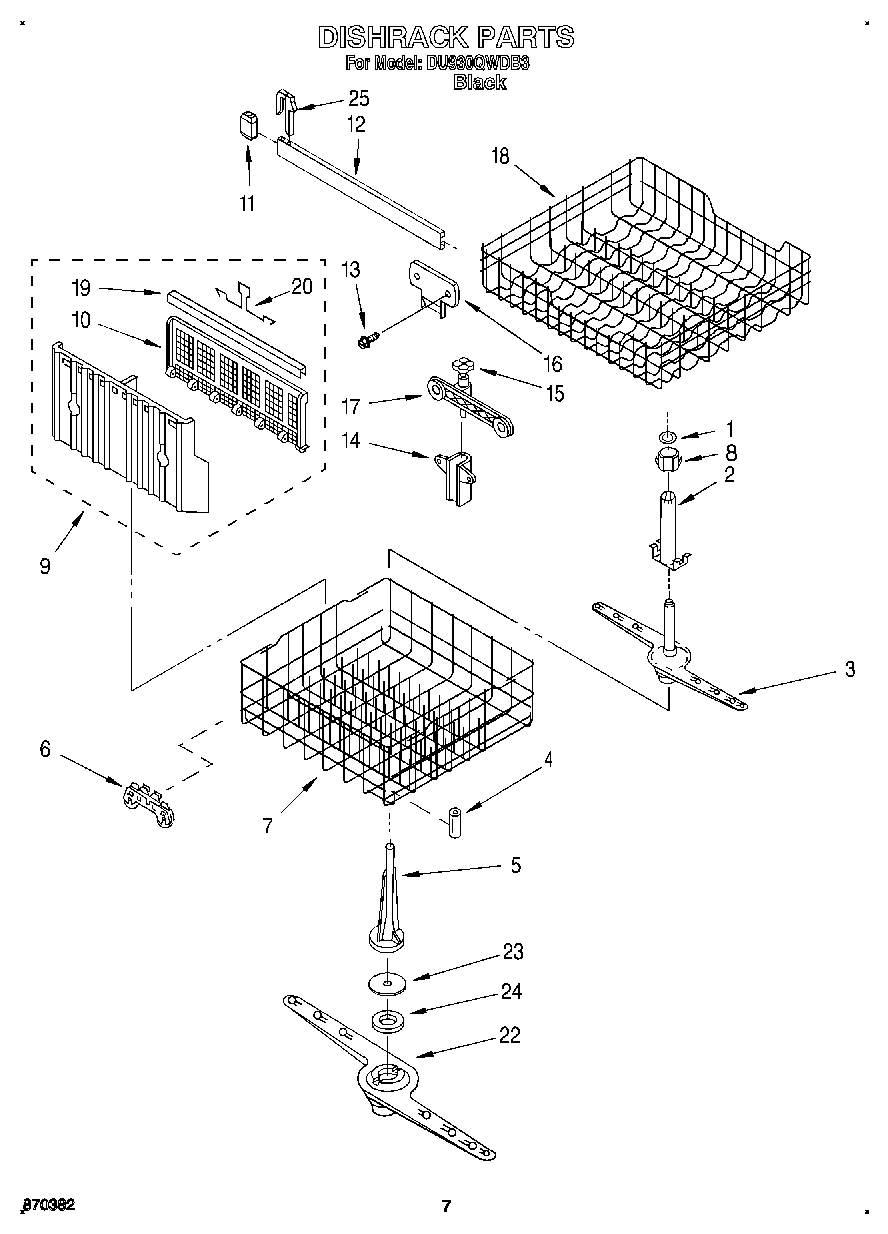

DU930QWDB3 05 – DISHRACK, LIT/OPTIONAL
Products
Position
Product
WPL LIT3376808
Instructions, Installation
Instructions, Installation (Supplement) (Locating Your Water Supply)
Do-It Yourself Manual
WPL LIT3374754
Tech Sheet
Energy Guide
1
Clip
2
Support, Arm
3
Spray Arm, Upper
4
WP3385142 Whirlpool Dishwasher Bumper
5
Tower, Pressure
6
WP3376961 Whirlpool Dishwasher Wheel
7
W10311986 Whirlpool Dishwasher Lower Rack
8
Support, Lock Spray Arm
9
Silverware Basket Assembly
10
Cover, Basket
11
Endcap, Front or Rear (2)
12
Track, Rack
13
WP9741232 Whirlpool Dishwasher Screw
14
WP3369980 Whirlpool Dishwasher Housing
15
Worm (2)
16
WP3369979 Whirlpool Dishwasher Plate
17
675791 Whirlpool Dishwasher ARM Assembly
18
W11169039 Whirlpool Dishwasher Dish Rack
19
Trim, Basket
20
Handle, Basket
22
WP3376848 Whirlpool Dishwasher Spray Arm
23
Cap, Nozzle
24
WP719576 Whirlpool Dishwasher Bearing
25
WP676455 Whirlpool Dishwasher Touch-Up
25
WP676453 Whirlpool Dishwasher Touch-Up
25
72032 Whirlpool Touch Up Paint Black
25
285006 Whirlpool Spray
25
Stop, Track (2)
25
Enamel, Black (1 Qt. Uncut)
25
Almond (Uncut)
25
WP72107 Whirlpool Touchup
25
72017 Whirlpool Appliance Touch-Up Paint White
25
350956 Whirlpool Spray Assembly
25
675679 Whirlpool Dishwasher White Tip Tines
25
676458 Whirlpool Dishwasher Tine Tip
25
DOOR SPRING KIT: (HEAVY DUTY)
25
Side Panel Kit: (Almond)
25
Side Panel Kit (White)
25
Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
25
Avocado
25
Gold
25
Toast
25
W10840471 Whirlpool Dishwasher Touch Up
25
Platinum
←
