DU930QWDQ2 05 – DISHRACK, LIT/OPTIONAL

DU930QWDQ2 05 – DISHRACK, LIT/OPTIONAL

Written by

in

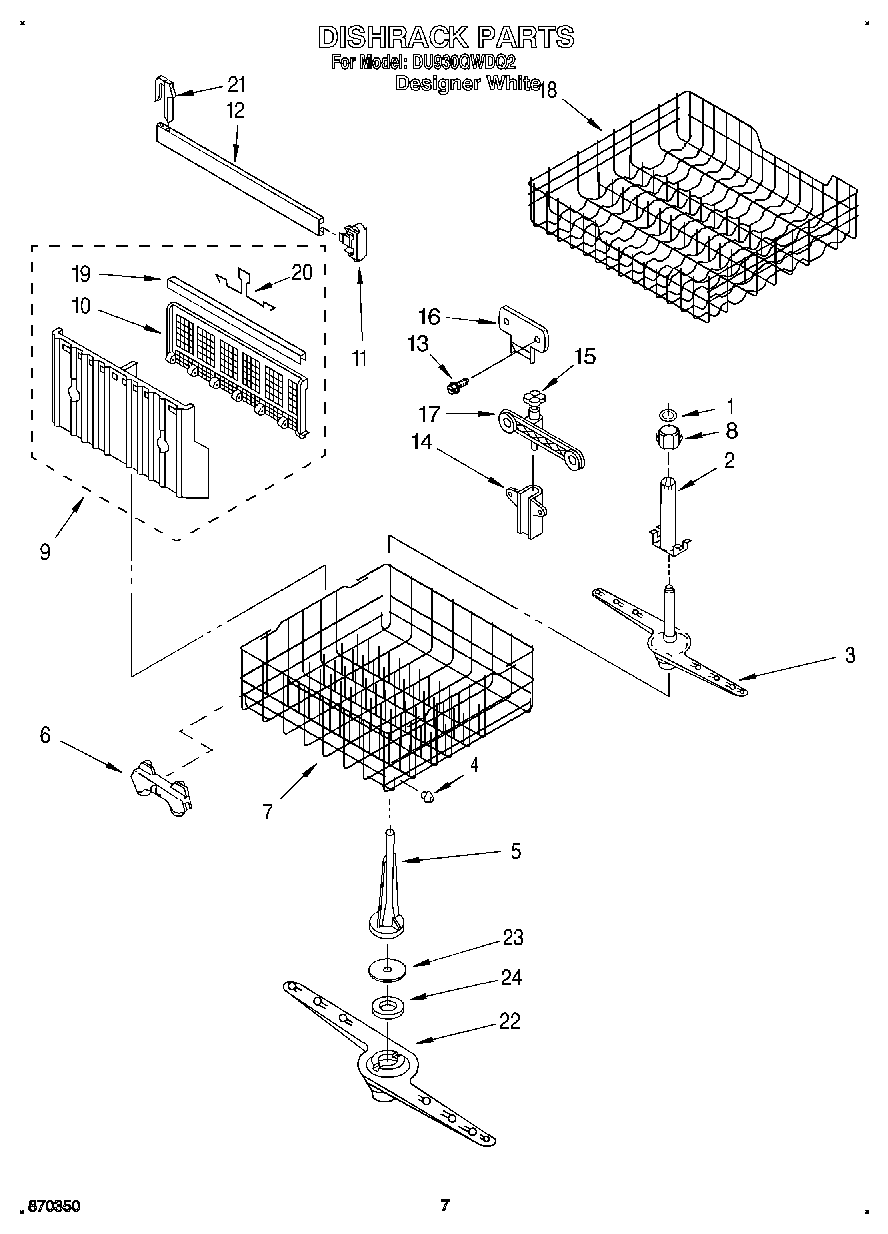

DU930QWDQ2 05 – DISHRACK, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3374766
WPL LIT3374754
WPL LIT3376808
Instructions, Installation
Instructions, Installation (Supplement) (Locating Your Water Supply)
Do-It Yourself Manual
Energy Guide
1Clip
2Support, Arm
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Silverware Basket Assembly
10Cover, Basket
11Endcap, Front or Rear (2)
12Track, Rack
13WP9741232 Whirlpool Dishwasher Screw
14WP3369980 Whirlpool Dishwasher Housing
15Worm (2)
16WP3369979 Whirlpool Dishwasher Plate
17675791 Whirlpool Dishwasher ARM Assembly
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
21Stop, Track (2)
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP676455 Whirlpool Dishwasher Touch-Up
24WP676453 Whirlpool Dishwasher Touch-Up
2472032 Whirlpool Touch Up Paint Black
24285006 Whirlpool Spray
24DOOR SPRING KIT: (HEAVY DUTY)
24Enamel, Black (1 Qt. Uncut)
24350942 Whirlpool Spray Paint
24Almond (Uncut)
24WP72107 Whirlpool Touchup
2472017 Whirlpool Appliance Touch-Up Paint White
24350956 Whirlpool Spray Assembly
24675679 Whirlpool Dishwasher White Tip Tines
24WP719576 Whirlpool Dishwasher Bearing
24Side Panel Kit: (Almond)
24Side Panel Kit (White)
24W10840471 Whirlpool Dishwasher Touch Up
24Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24Avocado
24Gold
24Toast
24676458 Whirlpool Dishwasher Tine Tip
24Platinum
