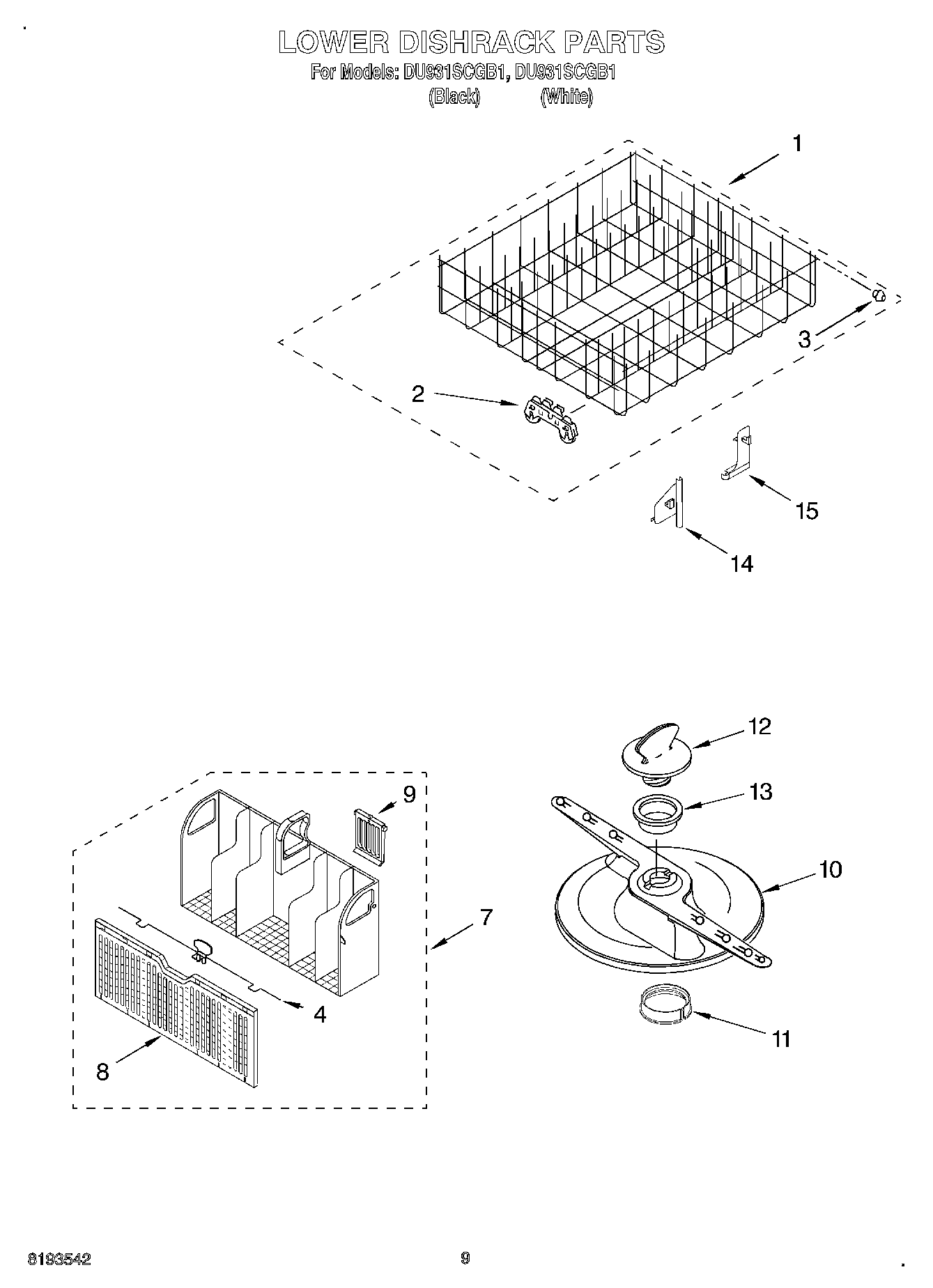

DU931SCGB1 06 – LOWER DISHRACK

DU931SCGB1 06 – LOWER DISHRACK

Written by

in

DU931SCGB1 06 – LOWER DISHRACK

Products

PositionProduct
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
3WP3385142 Whirlpool Dishwasher Bumper
4Latch Assembly
7Silverware Basket Assembly
8Door, Silverware Basket
9Lid, Silverware Basket
10WP8268874 Whirlpool Dishwasher Spray Arm
11WP3376846 Whirlpool Seal
12WP8268873 Whirlpool Dishwasher Nut
13WP9742946 Whirlpool Dishwasher Spray Arm Bearing
148268867 Whirlpool Dishwasher Clip
158268868 Whirlpool Dishwasher Clip
