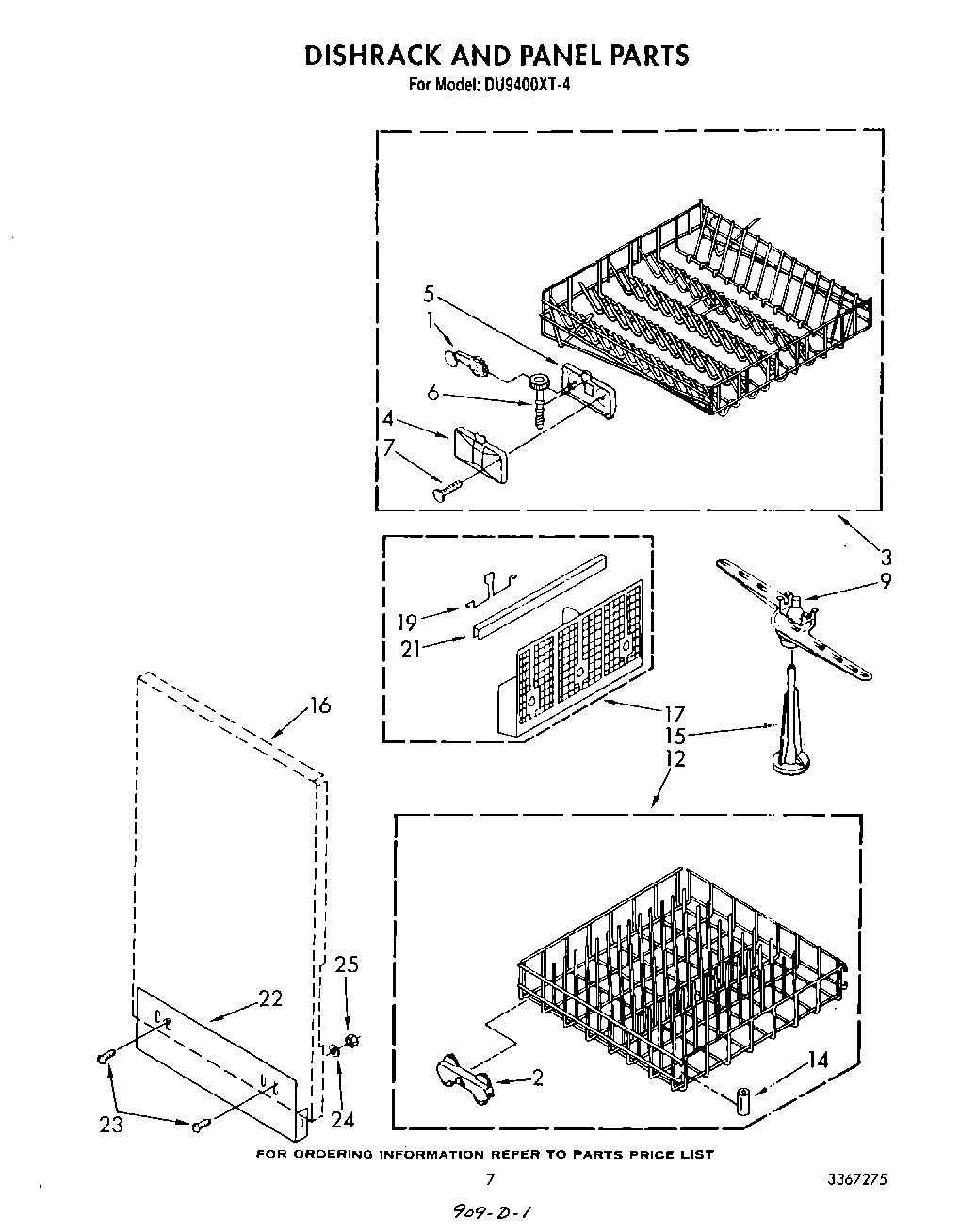

DU9400XT4 05 – DISH RACK AND PANEL

Written by

Products

Position	Product
1	Wheel & Gear Assembly (4)
2	WP3376961 Whirlpool Dishwasher Wheel
3	W11169039 Whirlpool Dishwasher Dish Rack
4	Cover, Housing (2)
5	Housing, Gear (2)
6	Warm, Dishrack (2)
7	WP9741232 Whirlpool Dishwasher Screw
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
15	Tower, Pressure
16	Panel, Reversible Side
17	Silverware Basket
19	Handle, Basket
21	Trim, Basket
22	Panel, Lower Side
23	Screw, Lower Side Panel Mounting (2)
24	W11089212 Whirlpool Washer
25	W10080180 Whirlpool Nut
