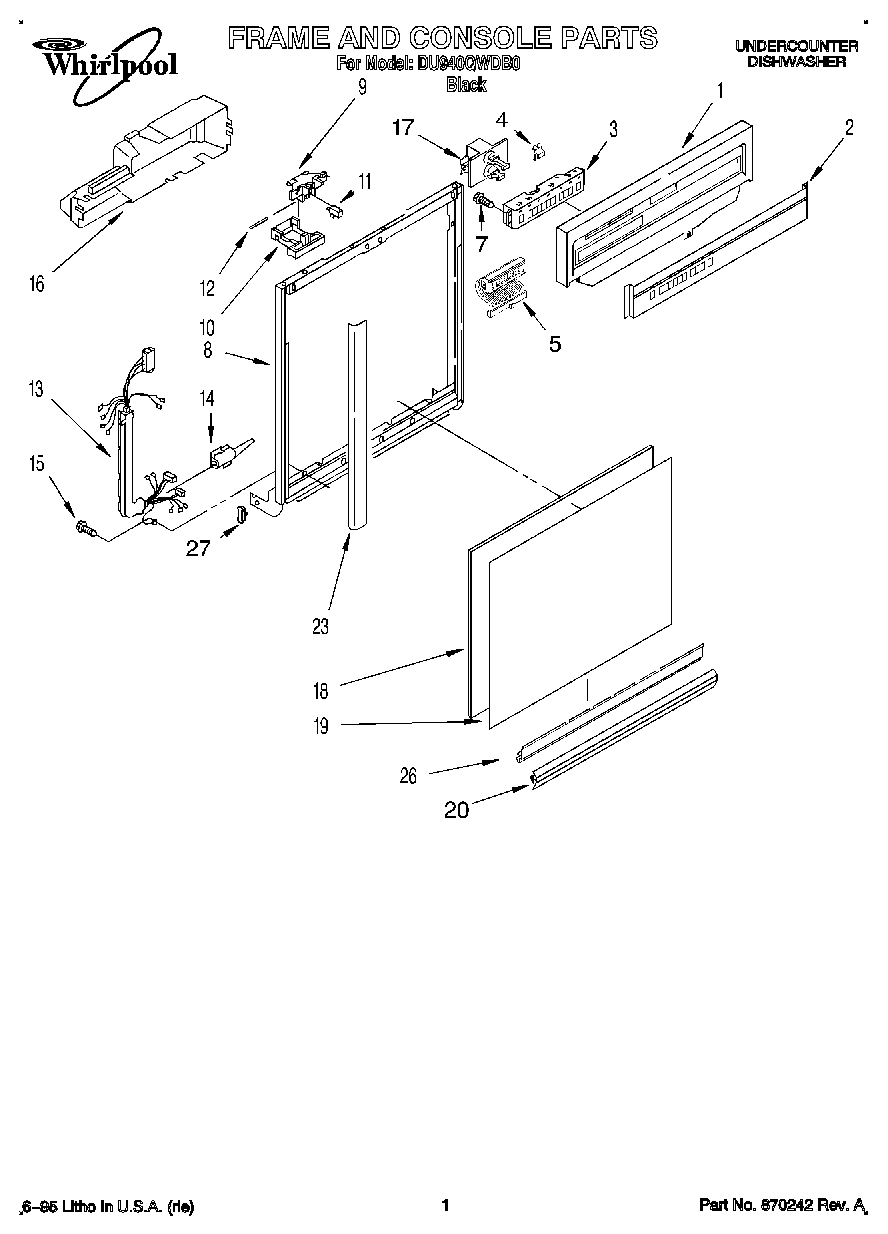

DU940QWDB0 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2) (Black)
2	Insert, Console (Black)
3	Control, Electronic
4	675813 Whirlpool Thermal Fuse Kit
5	Switch, Display
7	WP304231 Whirlpool Dishwasher Screw
8	3374711 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover Timer
17	Motor, Dual
18	Door, Sound Absorber
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
23	Trim (2)
26	WP3374716 Whirlpool Dishwasher Channel
27	WP3373234 Whirlpool Dishwasher Bearing
