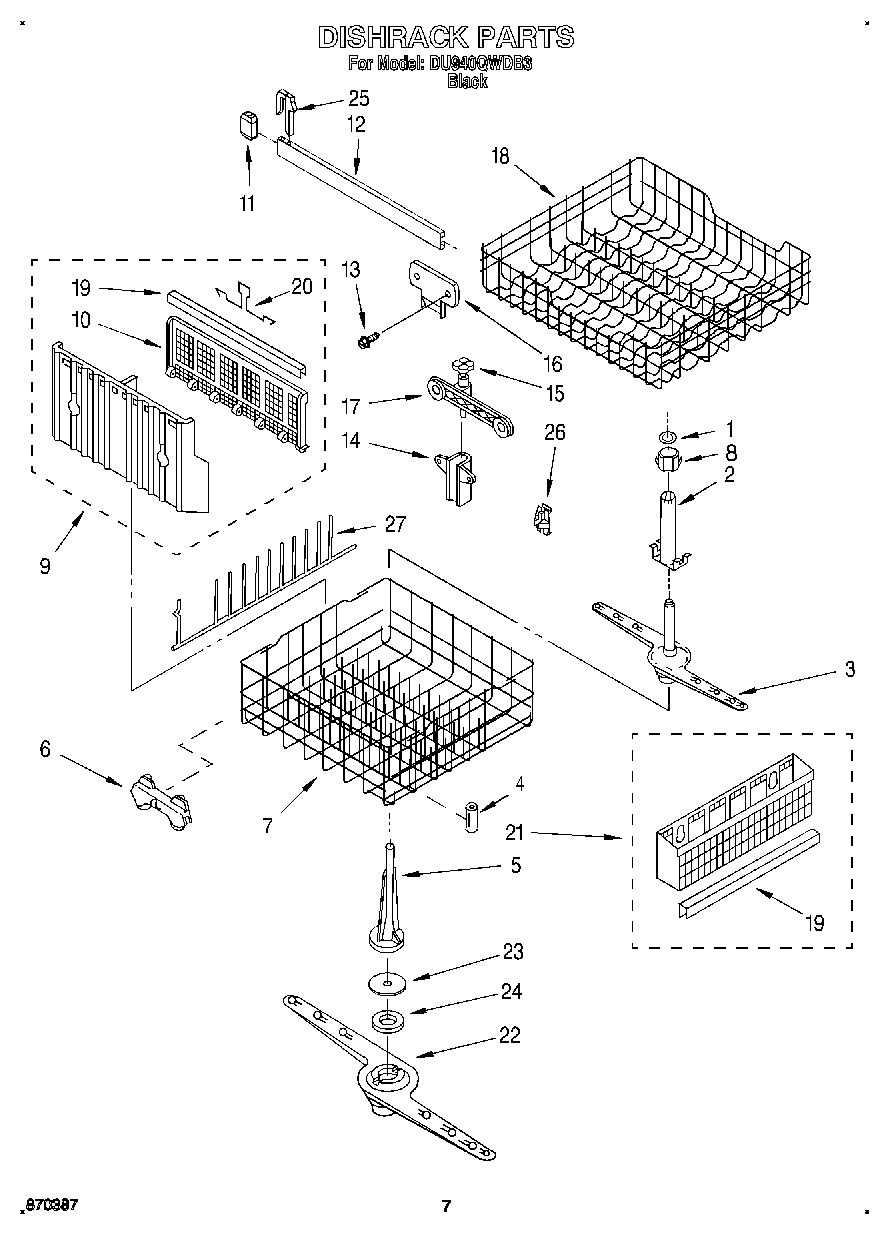

DU940QWDB3 05 – DISHRACK, LIT/OPTIONAL

DU940QWDB3 05 – DISHRACK, LIT/OPTIONAL

Written by

in

DU940QWDB3 05 – DISHRACK, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3373753
Instructions, Installation (Supplement) (Locating Your Water Supply)
Energy Guide
Tech Sheet
Instructions, Installation
Do-It Yourself Manual
1Clip
2Support, Arm
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Silverware Basket Assembly
10Cover, Basket
11Endcap, Front or Rear (2)
12Track, Rack
13WP9741232 Whirlpool Dishwasher Screw
14WP3369980 Whirlpool Dishwasher Housing
15Worm (2)
16WP3369979 Whirlpool Dishwasher Plate
17675791 Whirlpool Dishwasher ARM Assembly
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
21Basket, Utensil (Includes Item 19)
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
25Stop, Track (2)
26WP3368629 Whirlpool Dishwasher Retainer
27WP72107 Whirlpool Touchup
27Almond (Uncut)
2772017 Whirlpool Appliance Touch-Up Paint White
27Enamel, Black (1 Qt. Uncut)
2772032 Whirlpool Touch Up Paint Black
27285006 Whirlpool Spray
27WP676453 Whirlpool Dishwasher Touch-Up
27Toast
27Gold
27Side Panel Kit (White)
27Side Panel Kit: (Almond)
27676458 Whirlpool Dishwasher Tine Tip
27Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
27675679 Whirlpool Dishwasher White Tip Tines
27350956 Whirlpool Spray Assembly
27W10728160 Whirlpool Tine Assembly
27WP676455 Whirlpool Dishwasher Touch-Up
27DOOR SPRING KIT: (HEAVY DUTY)
27W10840471 Whirlpool Dishwasher Touch Up
27Avocado
27Platinum
