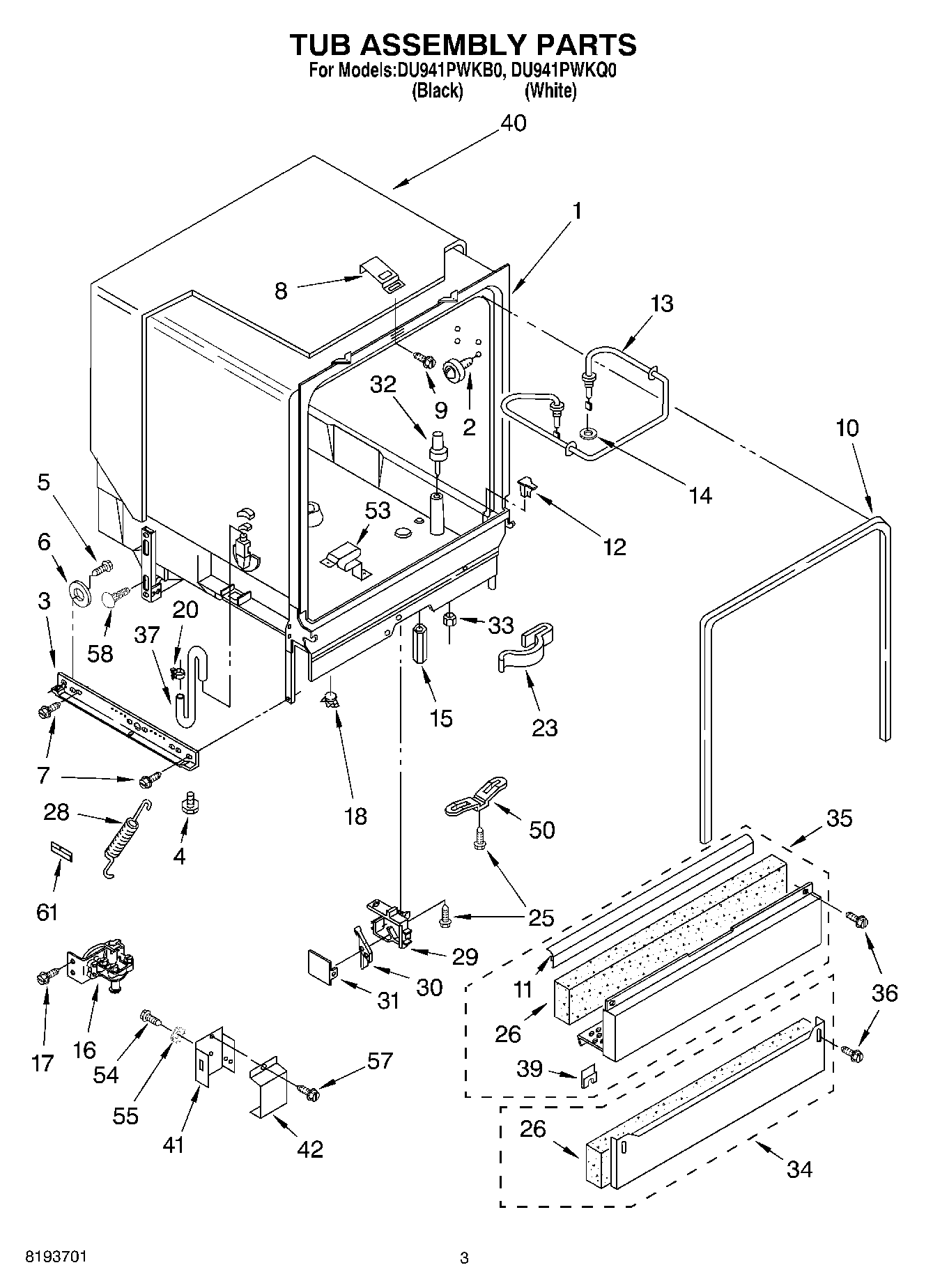

DU941PWKQ0 03 – TUB ASSEMBLYadmin2025-04-26T11:45:14+00:00DU941PWKQ0 03 – TUB ASSEMBLY ProductsPositionProduct1Tub Assembly2Tub, Wheel Assembly (8)3Runner (2)48193716 Whirlpool Leveling Leg5Screw (2)6WP302819 Whirlpool Dishwasher Wheel7SCREW8Plate, Latch9WP3374720 Whirlpool Dishwasher Screw10WPW10509257 Whirlpool Door Gasket11Barrier, Lower Vent12DEFLECTOR-DISHWASHER13WPW10082896 Whirlpool Dishwasher Heater14WP717273 Whirlpool Dishwasher Rubber Washer15WPW10477552 Whirlpool Dishwasher Terminal Nut16W10844024 Whirlpool Water Inlet Valve17WP489069 Whirlpool Compactor Screw18WP661566 Whirlpool High Limit Thermostat20WP596669 Whirlpool Hose Clamp23WP3400935 Whirlpool Dishwasher Clip25WP304231 Whirlpool Dishwasher Screw26Insulation28WP3379383 Whirlpool Dishwasher Spring29Housing, Float Switch30Switch, Float318318219 Whirlpool Dishwasher Cover Housing32WP3376397 Whirlpool Dishwasher Float Assembly33Nut34WP3379920 Whirlpool Dishwasher Toe Panel34WP3379921 Whirlpool Dishwasher Toe Panel35Panel, Access35Panel, Access (Black)36WP302868 Whirlpool Screw37Hose, Inlet39Clip, Grounding40W11086533 Whirlpool Dishwasher Shield41Terminal Box42300068 Whirlpool Dishwasher Cover Assembly50W10539489 Whirlpool Dishwasher Bracket-Stat533379740 Whirlpool Dishwasher Heater Support54WP3400014 Whirlpool Dishwasher Screw55WP3378128 Whirlpool Dishwasher Washer57Screw58WP304666 Whirlpool Dishwasher Retainer61Friction Pad (Velcro)
