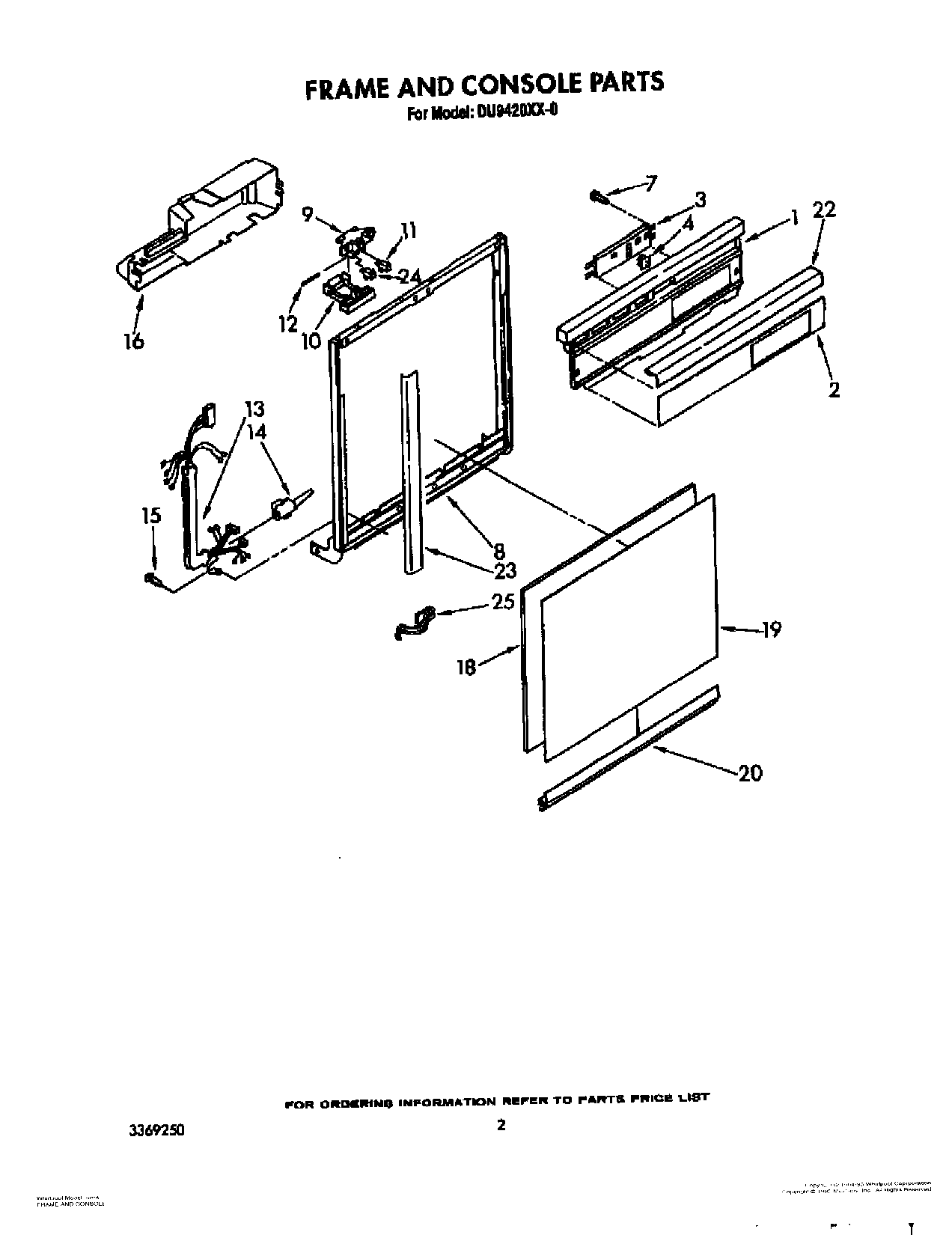

DU9420XX0 02 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
2	Insert, Console
3	Switch, Control
4	Motor, Dual
7	WP304231 Whirlpool Dishwasher Screw
8	Door Frame
9	WP3370964 Whirlpool Dishwasher Latch Bolt
10	WP3369503 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector (Includes Item 14)
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
22	Trim, Console
23	Trim (2)
24	Switch (1)
25	8528351 Whirlpool Clip
