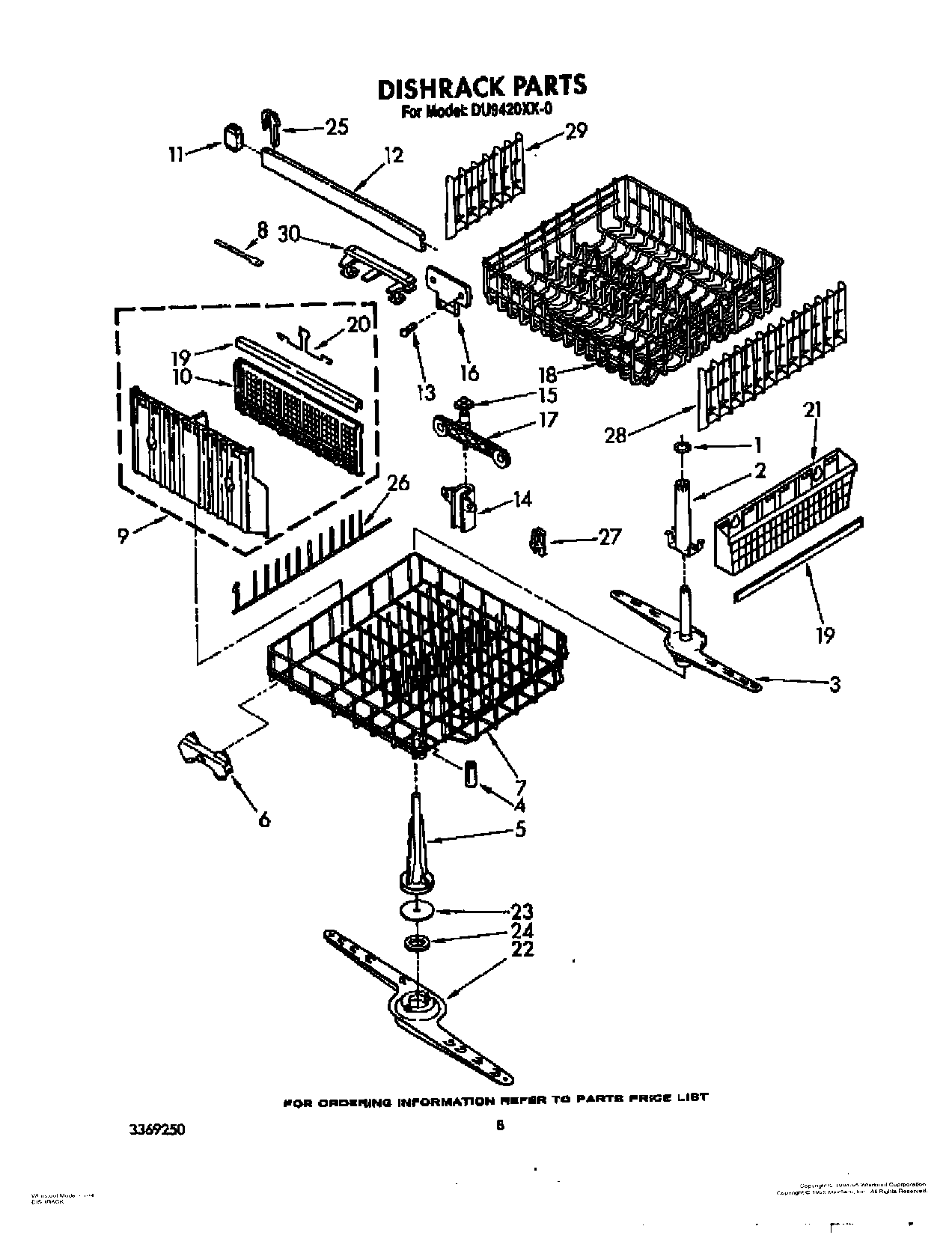

DU9420XX0 06 – DISHRACK

Products

Position	Product
	WPL LIT3369099
	Instructions, Installation
	Energy Guide
	Tech Sheet
	Parts List
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	W10728160 Whirlpool Tine Assembly
27	WP3368629 Whirlpool Dishwasher Retainer
28	Cupshelf, Large (2)
29	WP8268828 Whirlpool Dishwasher Shelf
30	72017 Whirlpool Appliance Touch-Up Paint White
30	WP72107 Whirlpool Touchup
30	Leveler (Thinner)
30	WPL 72112
30	Almond (Uncut)
30	350942 Whirlpool Spray Paint
30	Enamel, Black (1 Qt. Uncut)
30	285006 Whirlpool Spray
30	350956 Whirlpool Spray Assembly
30	Vinyl Touch Up (Blue)
30	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
30	8268826 Whirlpool Dishwasher Cup Holder
