DU9450XB0 05 – DISHRACK, LIT/OPTIONAL

DU9450XB0 05 – DISHRACK, LIT/OPTIONAL

Written by

in

DU9450XB0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3373635
	WPL LIT3373480
	Instructions, Installation
	Guide, Use & Care
	WPL LIT3373634
	Do-It Yourself Manual

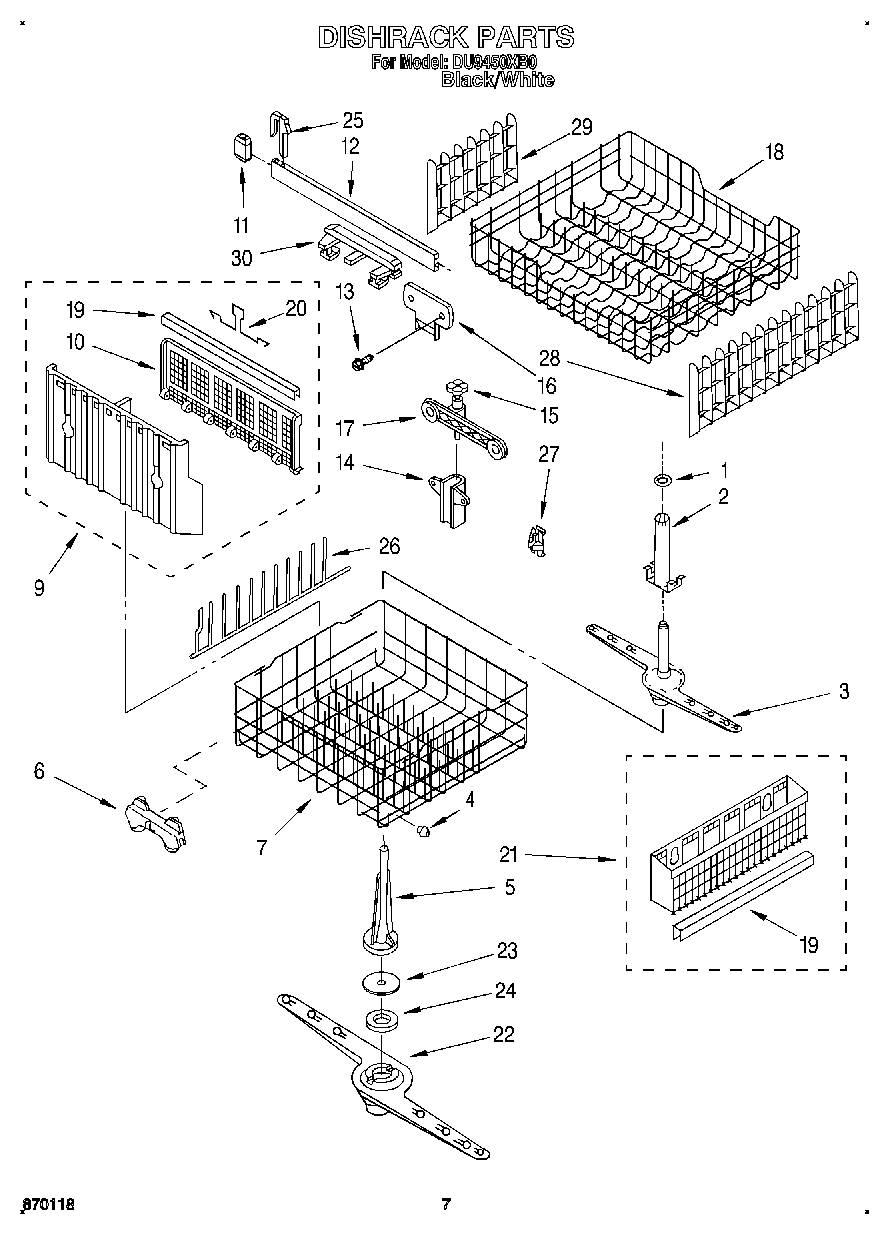

1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	W10728160 Whirlpool Tine Assembly
27	WP3368629 Whirlpool Dishwasher Retainer
28	Cupshelf, Large (2)
29	WP8268828 Whirlpool Dishwasher Shelf
30	285006 Whirlpool Spray
30	Gold
30	Platinum
30	Avocado
30	Toast
30	DOOR SPRING KIT: (HEAVY DUTY)
30	WP72107 Whirlpool Touchup
30	Leveler (Thinner)
30	Almond (Uncut)
30	350942 Whirlpool Spray Paint
30	Enamel, Black (1 Qt. Uncut)
30	72032 Whirlpool Touch Up Paint Black
30	WP676453 Whirlpool Dishwasher Touch-Up
30	WP676455 Whirlpool Dishwasher Touch-Up
30	350956 Whirlpool Spray Assembly
30	675679 Whirlpool Dishwasher White Tip Tines
30	676458 Whirlpool Dishwasher Tine Tip
30	W10840471 Whirlpool Dishwasher Touch Up
30	Side Panel Kit (White)
30	Side Panel Kit: (Almond)
30	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
30	8268826 Whirlpool Dishwasher Cup Holder
30	72017 Whirlpool Appliance Touch-Up Paint White
