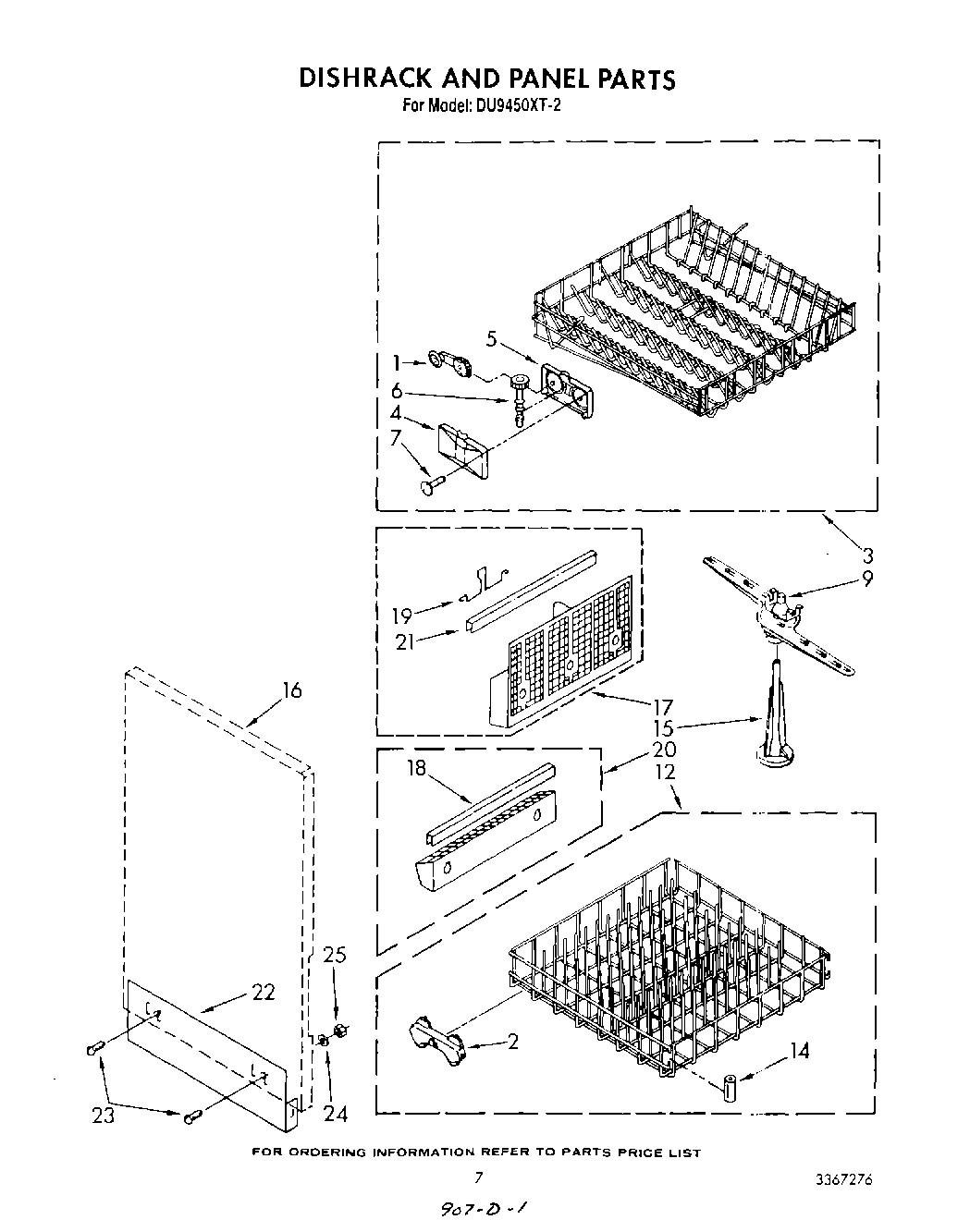

DU9450XT2 05 – DISH RACK AND PANELadmin2025-04-26T11:47:32+00:00DU9450XT2 05 – DISH RACK AND PANEL
Products
| Position | Product |
|---|
| 1 | Wheel & Gear Assembly (4) |
| 2 | WP3376961 Whirlpool Dishwasher Wheel |
| 3 | W11169039 Whirlpool Dishwasher Dish Rack |
| 4 | Cover, Housing (2) |
| 5 | Housing, Gear (2) |
| 6 | Warm, Dishrack (2) |
| 7 | WP9741232 Whirlpool Dishwasher Screw |
| 9 | WP304204 Whirlpool Dishwasher Spray Arm |
| 12 | W10311986 Whirlpool Dishwasher Lower Rack |
| 14 | Bumper |
| 15 | Tower, Pressure |
| 16 | Panel, Reversible Side |
| 17 | Silverware Basket |
| 19 | Handle, Basket |
| 20 | Basket, Utensil |
| 21 | Trim, Basket |
| 22 | Panel, Lower Side |
| 23 | Screw, Lower Side Panel Mounting (2) |
| 24 | W11089212 Whirlpool Washer |
| 25 | W10080180 Whirlpool Nut |
