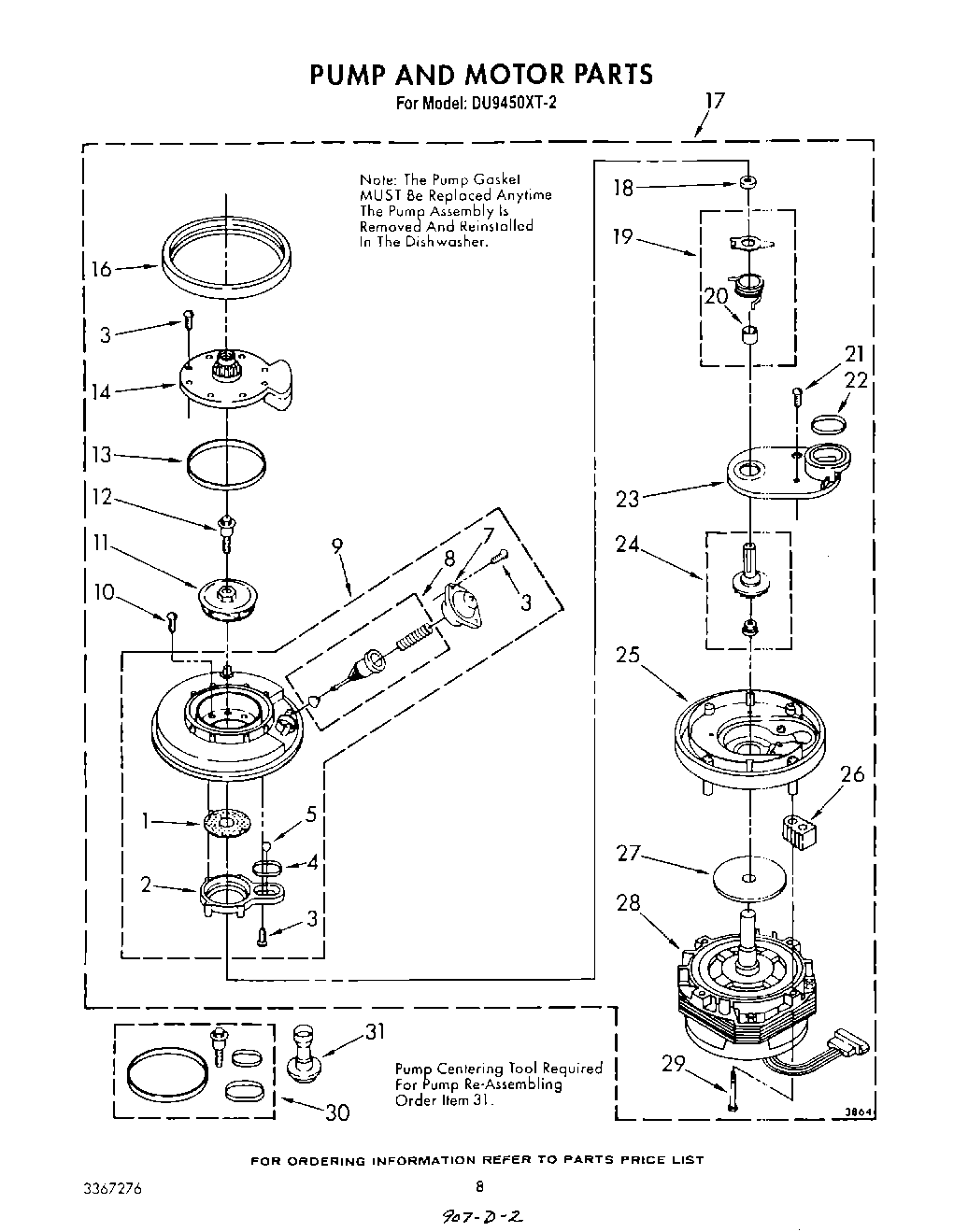

DU9450XT2 06 – PUMP AND MOTOR

DU9450XT2 06 – PUMP AND MOTOR

Written by

in

DU9450XT2 06 – PUMP AND MOTOR

Products

PositionProduct
1Plate, Perforated (Includes Illus. 5) (Also Order Illus. No. 30) See Note A.
2Base, Inlet (Includes Items 1 & 5) (Also Order Item 30) See Note A.
3WP9741232 Whirlpool Dishwasher Screw
4WP302710 Whirlpool Dishwasher Ring Seal
5Ball, Check
7Cover, Valve
8Valve Stem Kit (Includes Items 12, 13 & 22) See Note A.
9Separator Assembly (Includes Items 12, 13 & 22) See Note A.
10Screw, 8-18 x 1-5/8 St. Stl. (4)
12WP3371152 Whirlpool Dishwasher Screw
13WP302711 Whirlpool Dishwasher Ring Seal
14Outlet, Pump (Includes Illus. 13)
16717000 Whirlpool Dishwasher Gasket
17Pump & Motor Assembly
18Bushing, Grind
19675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
20Sleeve, Drain Impeller
22Seal, Drain Cover
23Cover, Drain (Includes Item 33) (Also Order Item 30) See Note A.
25Base, Pump (Includes Item 24) (Also Order Item 30) See Note A.
26WP3367197 Whirlpool Dishwasher Support
27W10909679 Whirlpool Dishwasher Slinger
28Motor (Includes Item 27) (Also Order Item 30) See Note A.
29Screw (4)
30Pump Seal Kit (Includes Items 4, 12, 13 & 22)
31Tool, Pump Centering
