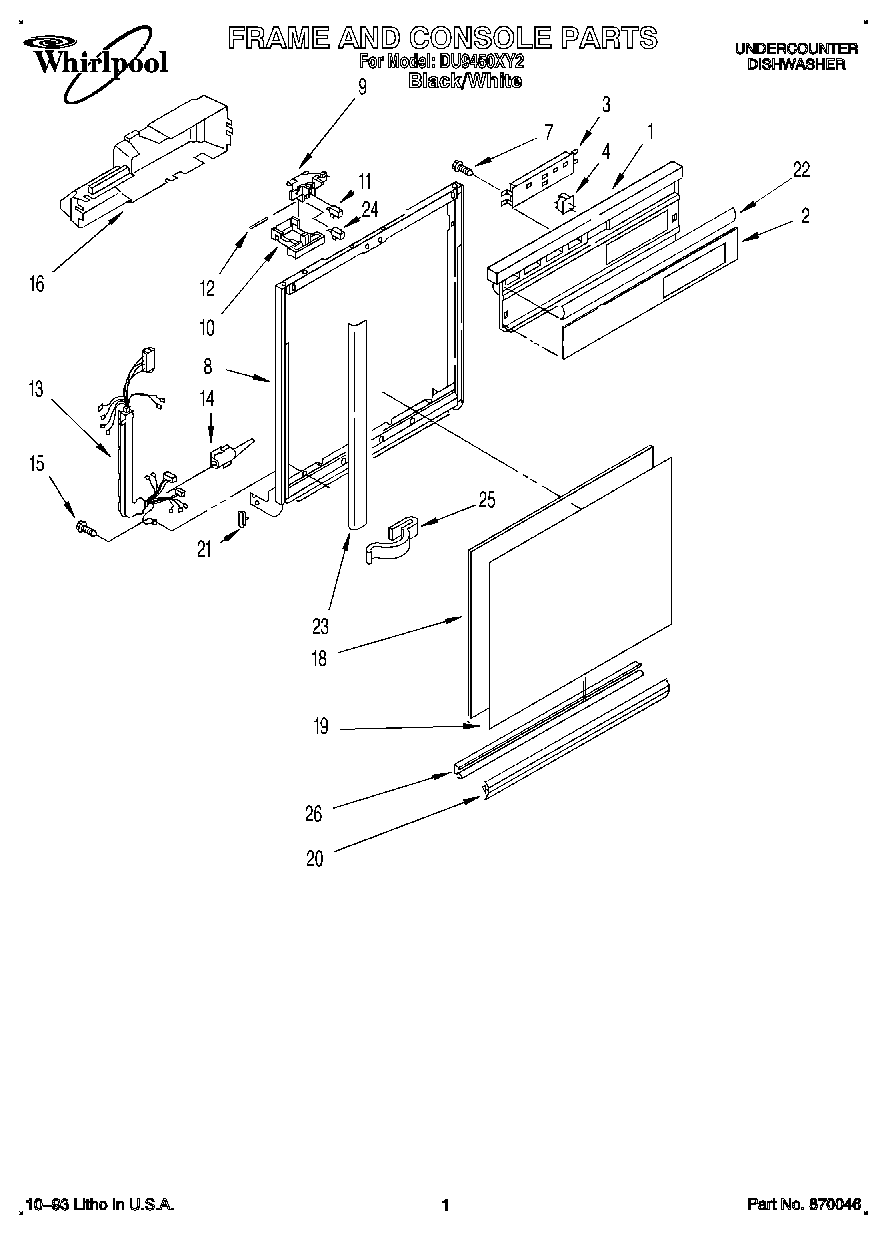

DU9450XY2 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
2	Insert, Console
3	Switch, Control
4	Motor, Dual
7	WP304231 Whirlpool Dishwasher Screw
8	3374711 Whirlpool Dishwasher Frame
9	WP3370964 Whirlpool Dishwasher Latch Bolt
10	WP3369503 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover Timer
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel (White)
21	WP3373234 Whirlpool Dishwasher Bearing
22	Trim, Console
23	Trim (2)
24	Switch (1)
25	8528351 Whirlpool Clip
26	Channel, Retainer (Also Order Item No.20)
