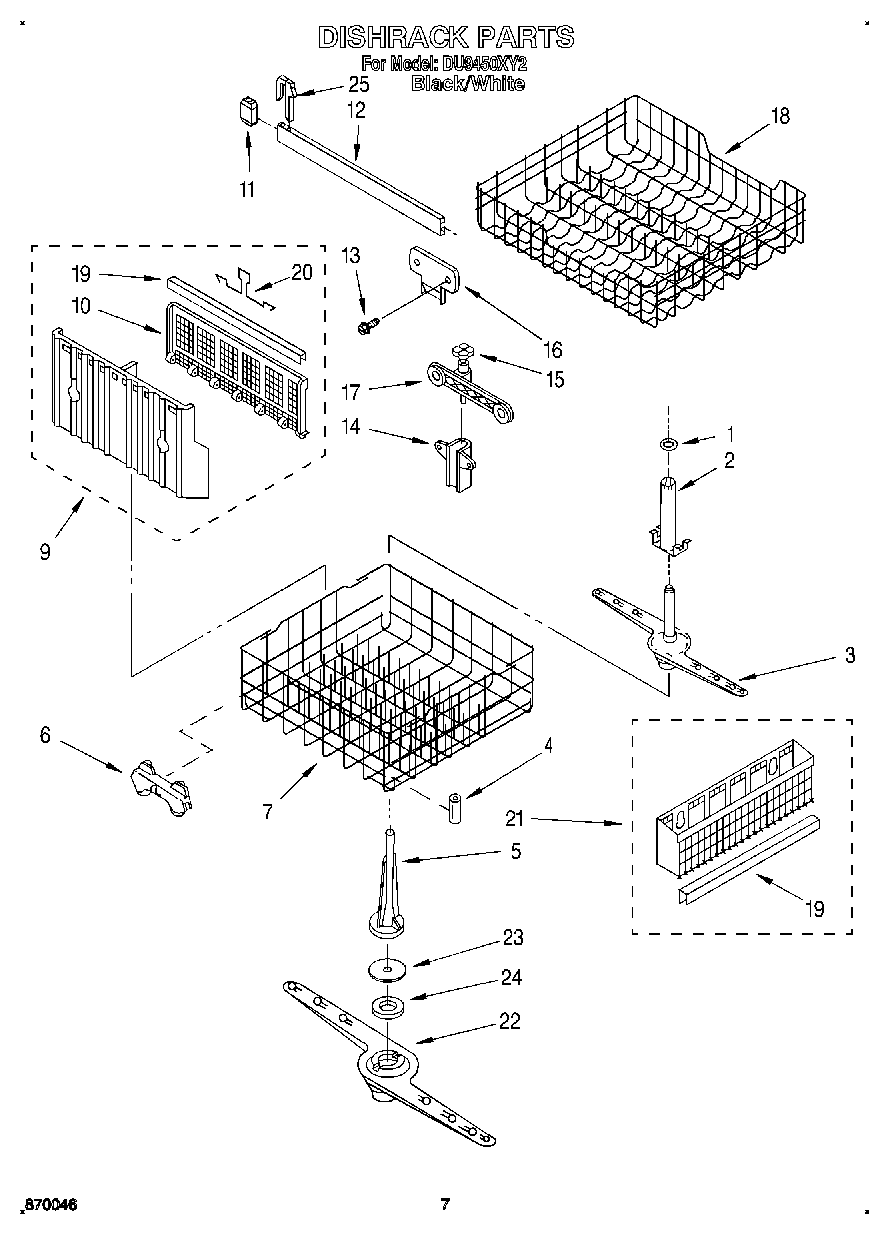

DU9450XY2 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Do-It Yourself Manual
	WPL LIT3369099
	Tech Sheet
	WPL LIT3370468
	WPL LIT3372194
	WPL LIT3374368
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	WP676455 Whirlpool Dishwasher Touch-Up
25	WP676453 Whirlpool Dishwasher Touch-Up
25	285006 Whirlpool Spray
25	Enamel, Black (1 Qt. Uncut)
25	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
25	350942 Whirlpool Spray Paint
25	WPL 72112
25	Almond (Uncut)
25	Leveler (Thinner)
25	WP72107 Whirlpool Touchup
25	350956 Whirlpool Spray Assembly
25	675679 Whirlpool Dishwasher White Tip Tines
25	Side Panel Kit: (Almond)
25	Stop, Track (2)
25	Side Panel Kit (White)
25	W10840471 Whirlpool Dishwasher Touch Up
25	676458 Whirlpool Dishwasher Tine Tip
25	DOOR SPRING KIT: (HEAVY DUTY)
25	Avocado
25	Gold
25	Toast
25	Platinum
25	72017 Whirlpool Appliance Touch-Up Paint White
