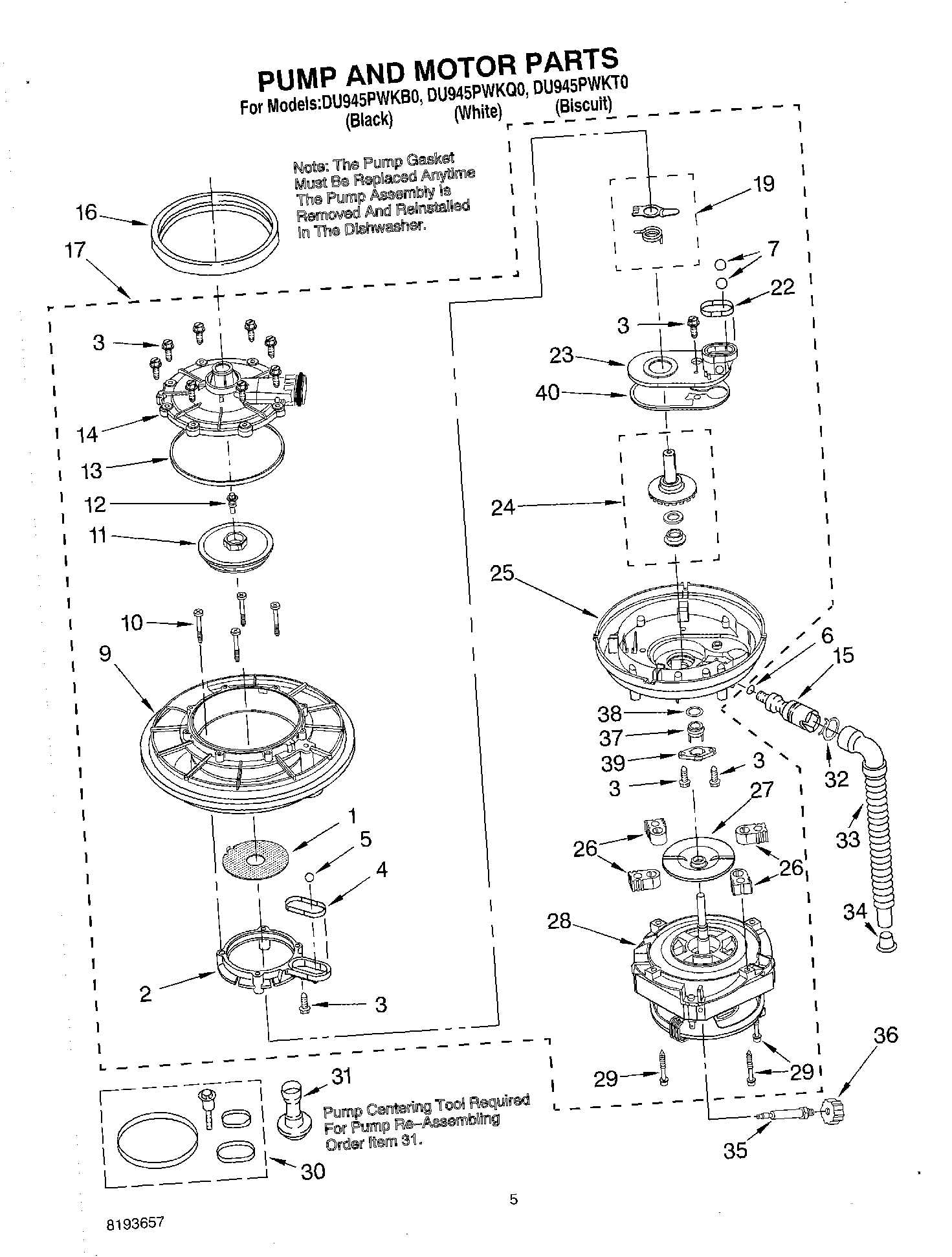

DU945PWKQ0 04 – PUMP AND MOTOR

Products

Position	Product
1	Plate, Perforated (Also Order Item 30) See Note A.
2	Base, Inlet (Includes Items 1 & 5) (Also Order Item 30) See Note A.
3	WP9741232 Whirlpool Dishwasher Screw
4	WP302710 Whirlpool Dishwasher Ring Seal
5	Ball, Check
6	``O`` Ring
7	WP719929 Whirlpool Dishwasher Check Ball
9	Filter
10	Screw
12	WP3371152 Whirlpool Dishwasher Screw
13	WP302711 Whirlpool Dishwasher Ring Seal
14	8194582 Whirlpool Dishwasher Outlet
15	675238 Whirlpool Check Valve
16	717000 Whirlpool Dishwasher Gasket
17	Pump & Motor Assembly (Includes Item 16)
19	675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
22	Seal, Drain Cover
23	Cover, Drain (Also Order Item 30 & 40) See Note A.
24	WP8274950 Whirlpool Dishwasher Impeller
25	Base, Pump (Also Order Item 30) See Note A.
26	WP3367197 Whirlpool Dishwasher Support
27	W10909679 Whirlpool Dishwasher Slinger
28	Motor & Fan (Assembly) (Includes Item 27) (Also Order Item 30) See Note A.
29	Screw
30	Pump Seal Kit (Includes Items 4, 12, 13 & 22)
31	Tool, Pump Centering
32	WP356138 Whirlpool Hose Clamp
33	WP3374077 Whirlpool Dishwasher Drain Hose
34	3371748 Whirlpool Dishwasher Cap
35	Shaft, Absorber
36	Weight, Absorber
37	Thermistor
38	WP3376723 Whirlpool Dishwasher Seal
39	WP3376358 Whirlpool Dishwasher Retainer
40	WP9740674 Whirlpool Dishwasher Gasket
