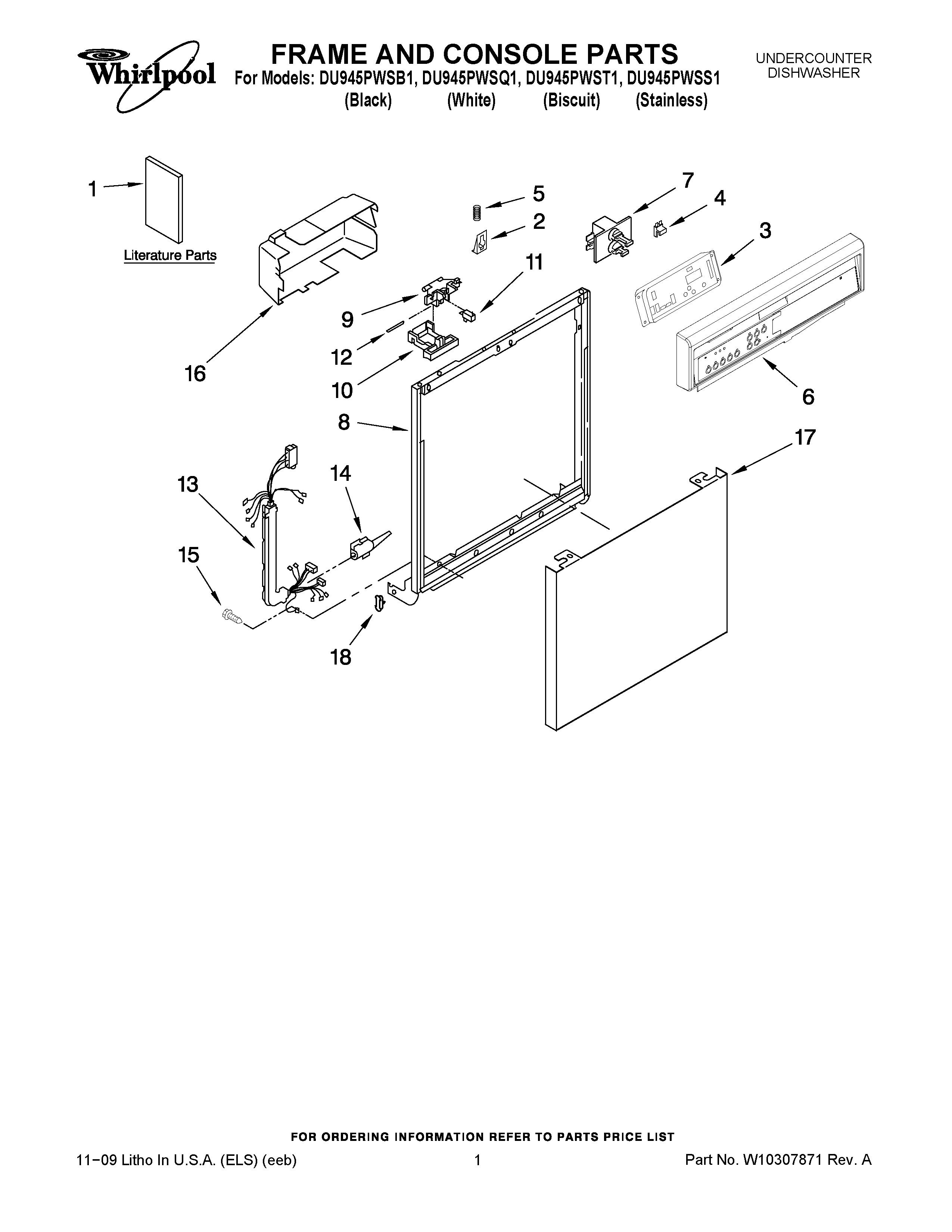

DU945PWSB1 01 – FRAME AND CONSOLE PARTSadmin2025-04-26T11:44:36+00:00DU945PWSB1 01 – FRAME AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | GUIDE, ENERGY |
| 1 | INSERT-INSTALL |
| 1 | INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY) |
| 1 | DIAGRAM, WIRING |
| 1 | GUIDE, USE & CARE ENGLISH/FRENCH |
| 1 | GUIDE, USE & CARE SPANISH |
| 2 | 675782 Whirlpool Dishwasher Catch |
| 3 | Control, Electronic |
| 4 | 675813 Whirlpool Thermal Fuse Kit |
| 6 | WPW10101960 Whirlpool Dishwasher Control Panel |
| 6 | Console (Includes Insert & Active Overlay) (White) |
| 6 | Console (Includes Insert & Active Overlay) (Biscuit) |
| 7 | Motor, Dual |
| 8 | WP9743028 Whirlpool Dishwasher Frame |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | Lever, Latch |
| 10 | Lever, Latch |
| 10 | Lever, Latch White |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP3400892 Whirlpool Dishwasher Screw |
| 16 | Cover, Timer |
| 17 | Panel Front (White Model) |
| 17 | Panel Front (Black Model) |
| 17 | Panel Front (Stainless Mdl.) |
| 17 | Panel, Front (Biscuit) |
| 18 | WP3373234 Whirlpool Dishwasher Bearing |
