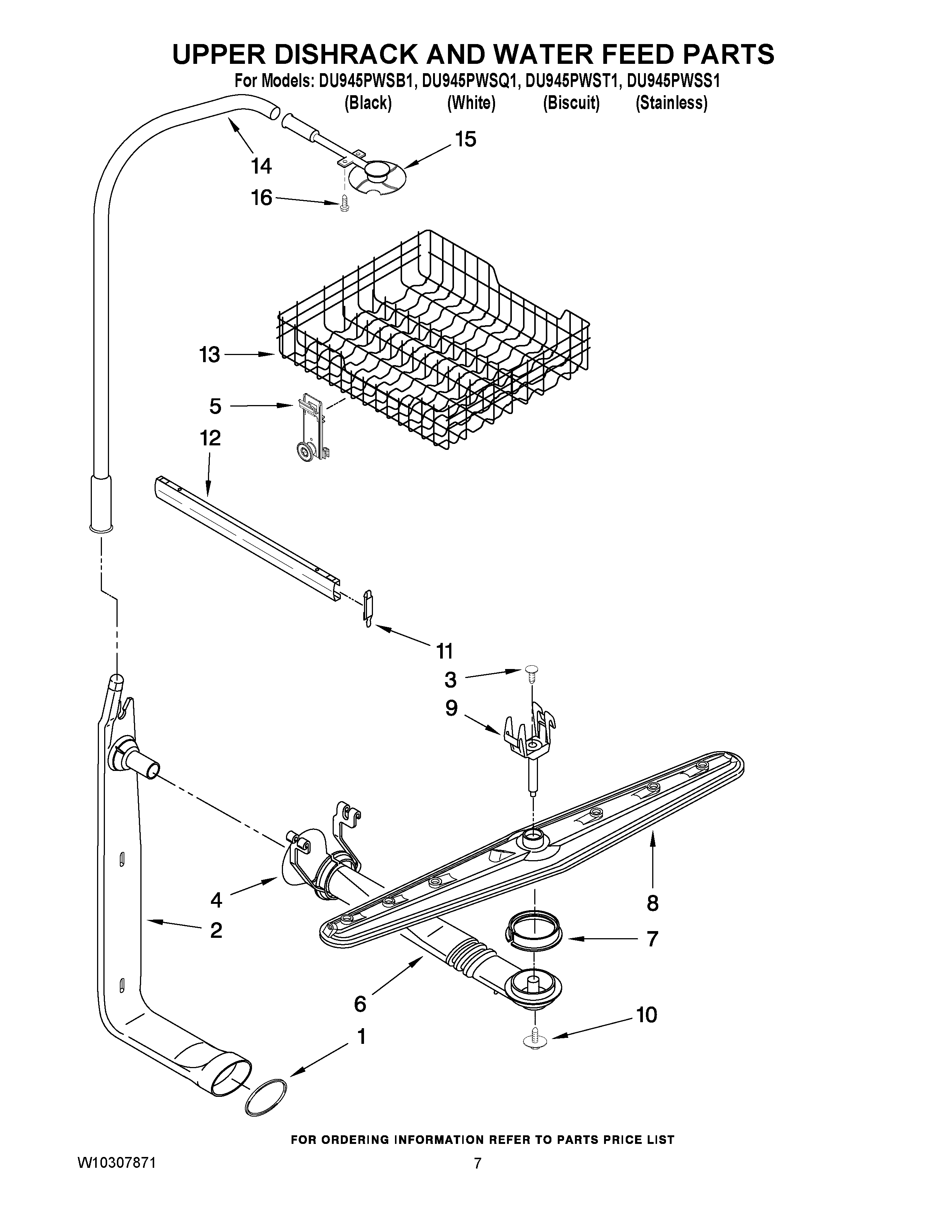

DU945PWSQ1 05 – UPPER DISHRACK AND WATER FEED PARTS

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
3WP3400919 Whirlpool Dishwasher Screw Cover
4WP3385160 Whirlpool Dishwasher Holder
5WPW10204141 Whirlpool Dishwasher Adjuster
6WPW10258149 Whirlpool Dishwasher Manifold
7WP3376846 Whirlpool Seal
8WP8519604 Whirlpool Dishwasher Spray Arm
9WP3385159 Whirlpool Dishwasher Mount
10WPW10349488 Whirlpool Screw
11WP8565925 Whirlpool Slide Rail Stop
12WP3385089 Whirlpool Track
13DISHRACK
14Tube (3rd Level)
15WP3379369 Whirlpool Dishwasher Wash Assembly
16WP489443 Whirlpool Refrigerator Screw
