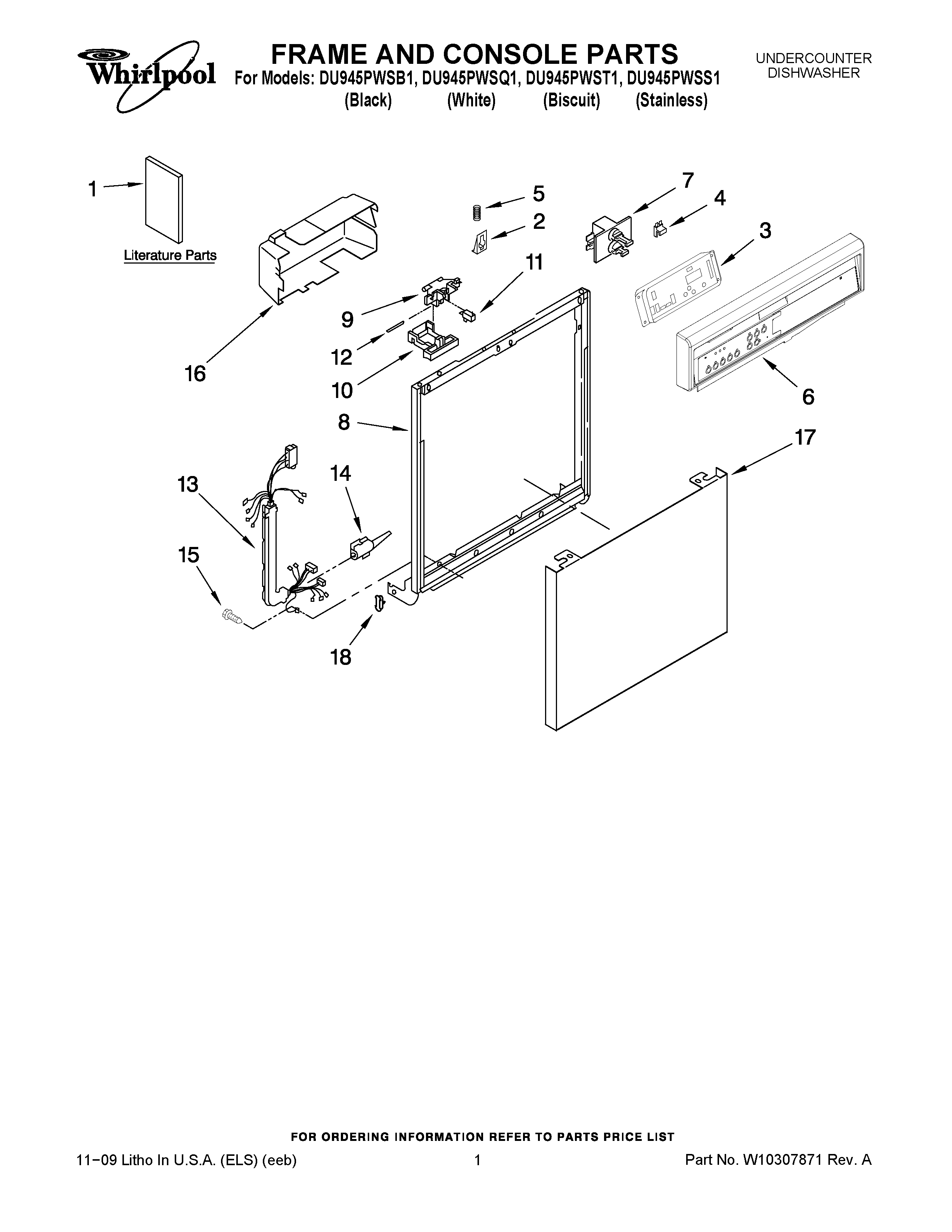

DU945PWSS1 01 – FRAME AND CONSOLE PARTS

DU945PWSS1 01 – FRAME AND CONSOLE PARTS

Written by

in

DU945PWSS1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, ENERGY
1INSERT-INSTALL
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1DIAGRAM, WIRING
1GUIDE, USE & CARE ENGLISH/FRENCH
1GUIDE, USE & CARE SPANISH
2675782 Whirlpool Dishwasher Catch
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
6WPW10101960 Whirlpool Dishwasher Control Panel
6Console (Includes Insert & Active Overlay) (White)
6Console (Includes Insert & Active Overlay) (Biscuit)
7Motor, Dual
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Panel Front (White Model)
17Panel Front (Black Model)
17Panel Front (Stainless Mdl.)
17Panel, Front (Biscuit)
18WP3373234 Whirlpool Dishwasher Bearing
