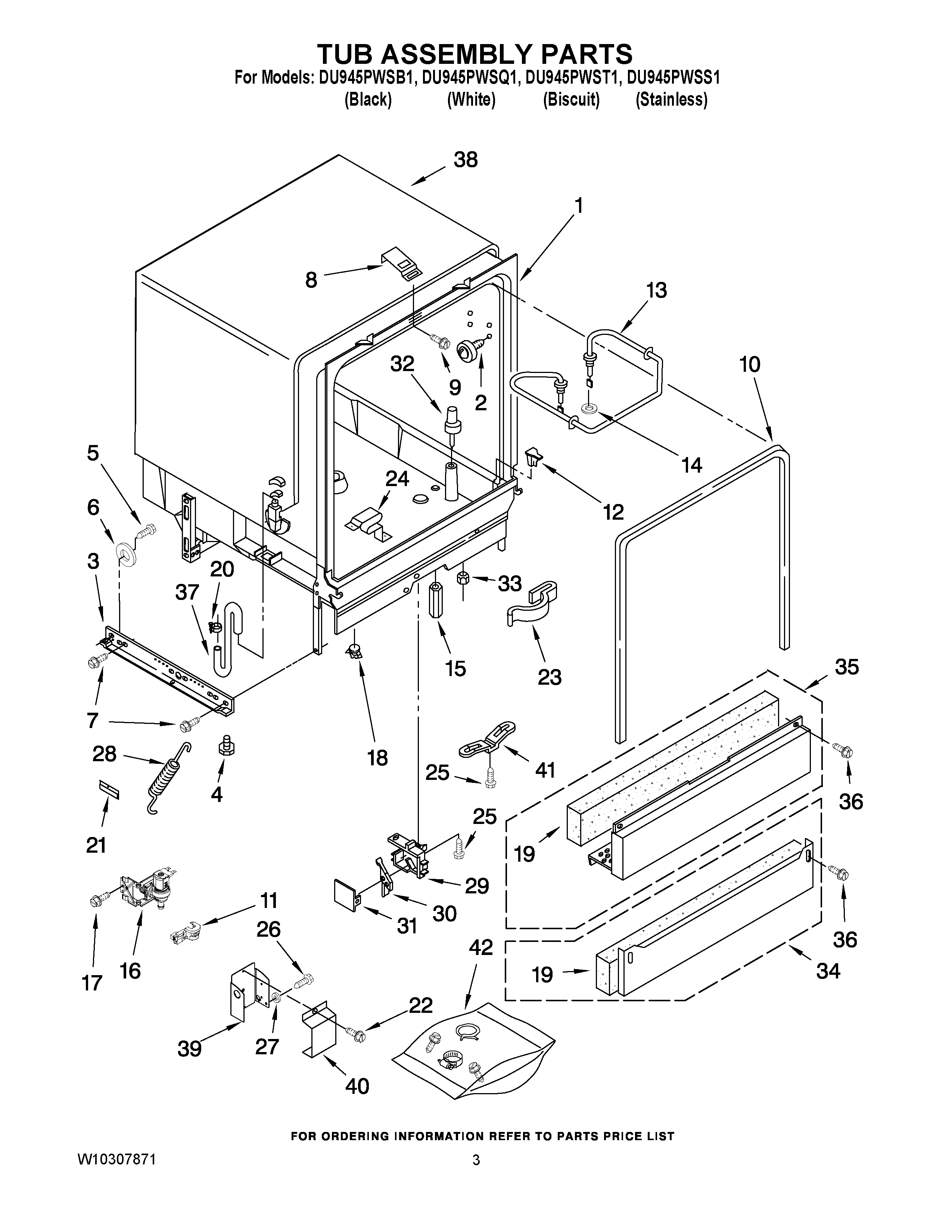

DU945PWST1 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	WP8528831 Whirlpool Dishwasher Mounting
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	W11384788 Whirlpool Dishwasher Relief Strainer
12	DEFLECTOR-DISHWASHER
13	WPW10082896 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
19	Insulation
20	WP596669 Whirlpool Hose Clamp
21	Friction Pad (Velcro)
22	WP489399 Whirlpool Refrigerator Screw
23	WP3400935 Whirlpool Dishwasher Clip
24	3379740 Whirlpool Dishwasher Heater Support
25	WP304231 Whirlpool Dishwasher Screw
26	WP3400014 Whirlpool Dishwasher Screw
27	WP3378128 Whirlpool Dishwasher Washer
28	WP3379383 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	8318219 Whirlpool Dishwasher Cover Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	Panel, Toe (Includes Item 26)
34	WP3379920 Whirlpool Dishwasher Toe Panel
34	WP3379921 Whirlpool Dishwasher Toe Panel
35	PANEL, ACCESS (BLACK)
35	PANEL, ACCESS (BISCUIT)
35	PANEL, ACCESS (WHITE)
35	PANEL, ACCESS (STAINLESS)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	W11086533 Whirlpool Dishwasher Shield
39	Terminal Box
40	300068 Whirlpool Dishwasher Cover Assembly
41	W10539489 Whirlpool Dishwasher Bracket-Stat
42	Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
