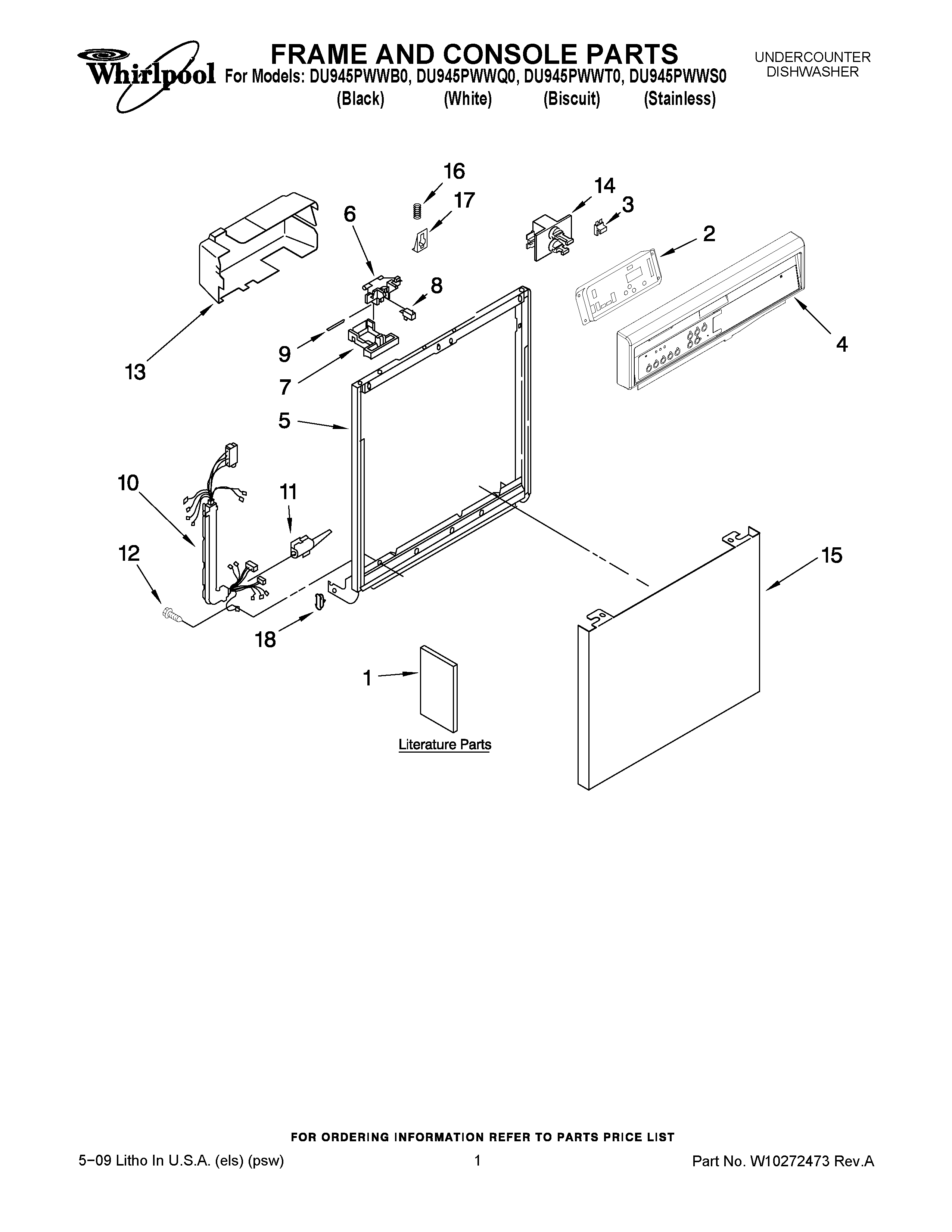

DU945PWWQ0 01 – FRAME AND CONSOLE PARTS

DU945PWWQ0 01 – FRAME AND CONSOLE PARTS

Written by

in

DU945PWWQ0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1DIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1GUIDE, USE & CARE ENGLISH/FRENCH
1GUIDE, ENERGY
2Control, Electronic
3675813 Whirlpool Thermal Fuse Kit
4WPW10101960 Whirlpool Dishwasher Control Panel
4Console (Includes Insert & Active Overlay) (White)
4Console (Includes Insert & Active Overlay) (Biscuit)
5WP9743028 Whirlpool Dishwasher Frame
6WP3380854 Whirlpool Door Latch Bolt
7Lever, Latch
7Lever, Latch
7Lever, Latch White
8Shield, Switch
9Pin, Switch (2)
10Harness and Protector
113376405 Whirlpool Dishwasher Elbow
12WP3400892 Whirlpool Dishwasher Screw
13Cover, Timer
14Motor, Dual
15Panel, Front (Biscuit)
15Panel Front (White Model)
15Panel Front (Black Model)
15Panel Front (Stainless Mdl.)
17675782 Whirlpool Dishwasher Catch
18WP3373234 Whirlpool Dishwasher Bearing
