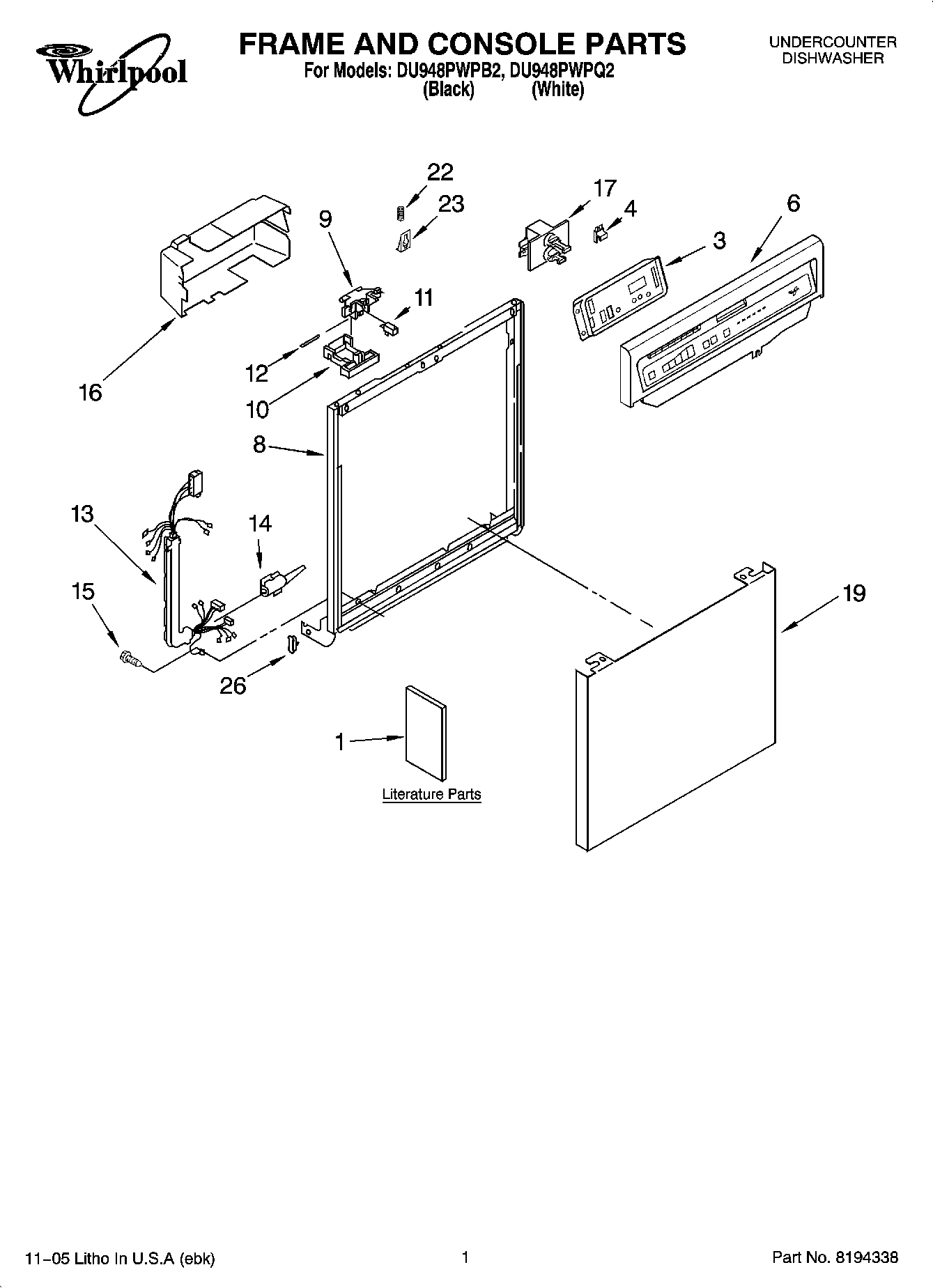

DU948PWPQ2 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1WPL 677967
1Guide, Energy
1Guide, Use & Care Tech Sheet
1DIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
6Console (Includes Insert & Active Overlay) (White)
6Console (Includes Insert & Active Overlay) (Black)
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
19Panel Front (White Model)
19Panel Front (Black Model)
23675782 Whirlpool Dishwasher Catch
26WP3373234 Whirlpool Dishwasher Bearing
